Precision Digital Balance - 1,500g x 0.05g
Download
Download
Lutron balances provide you with the most precise and accurate weighing results, even under the toughest weighing conditions.

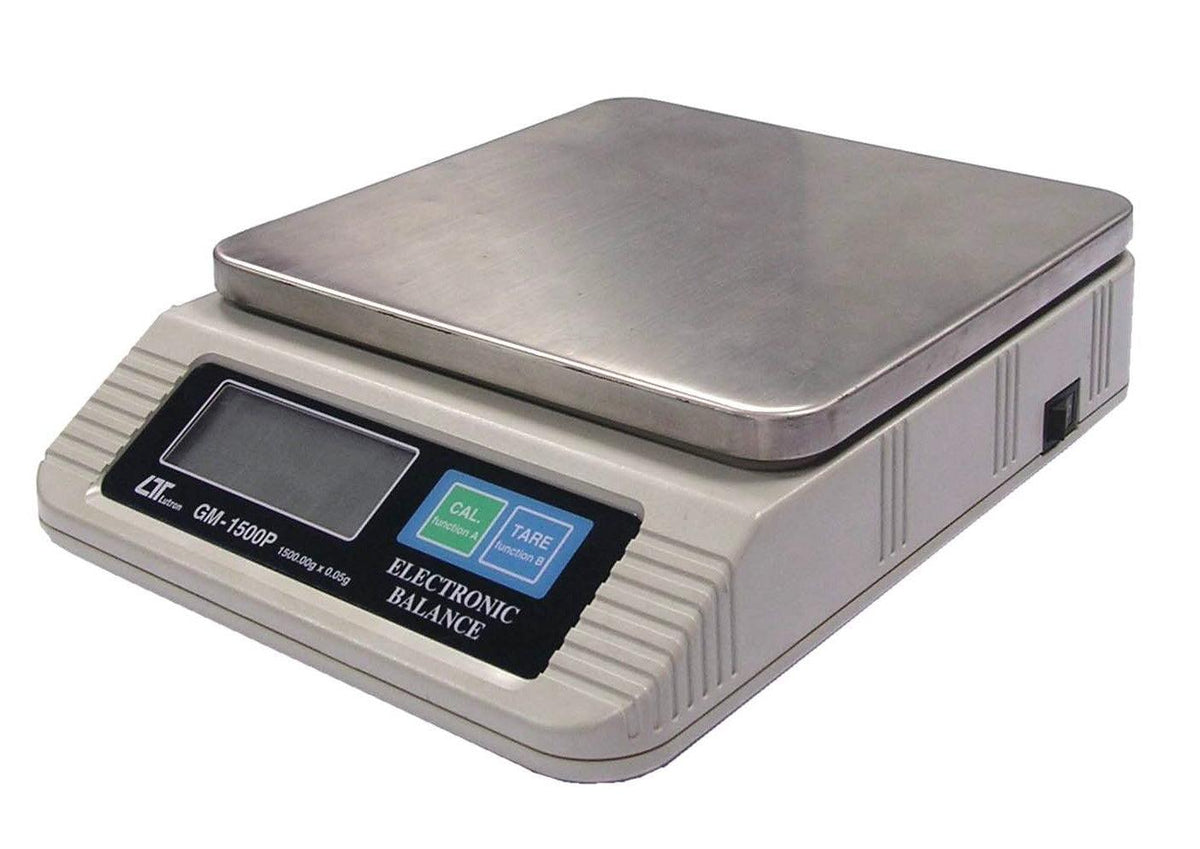

The GM-1500P precision balance has readability range between 0.5g and 1500g and a resolution of 0.05 g. This unit has a large 0.8-inch LCD display and 7.25” x 7.25” weighing platform. The unit can measure weight in grams or ounces. This balance can be powered using AA batteries or AC power.
These extremely durable balances made of heavy-duty ABS and stainless steel, are designed to withstand accidental overload, harsh chemicals, dust and dirt. Smooth surfaces and rounded edges make the whole balance extremely easy to clean.
- Microprocessor circuit with high accuracy & better performance
- High resolution & wide measuring capacity, 1500g x 0.05g, 50oz x 0.002oz
- Large LCD display, 20.9mm (0.8" digit size)
- Built-in gram & oz display unit, select by internal slide switch
- Built-in self calibration system - the calibration value can memorize into EEPROM circuit permanently even with the power off
- Counting scale function
- RS232/USB computer interface (with optional cable)
- Uses 6 AA batteries (included) or AC/DC adapter power source (optional)
- Heavy duty ABS housing
Specifications
|
SPECIFICATIONS |
||||
|
Display |
LCD, 20.9 mm ( 0.8" ) digit size, 5 digits with annunciator. |
|||
|
Function |
Weighting & counting. |
|||
|
Weighting range & resolution |
Unit |
Range |
Resolution |
|
|
Grams |
0.50g to 1500g |
0.05g |
||
|
Ounces |
0.02oz to 49.998oz |
0.002oz |
||
|
50oz to 52.8oz |
0.005oz |
|||
|
Min. display weight |
g |
0.50g |
||
|
oz |
0.018oz |
|||
|
Unit select |
Grams or ounces, select by internal slide switch |
|||
|
Accuracy |
± ( 0.05 % + 0.2g ) *Within two hours after self calibration be executed at 23 ± 5℃ *Spec. tested under the environment RF Field Strength less than 3 V/M and frequency less than the 30 MHz only |
|||
|
Sampling time |
Approx. 1 second |
|||
|
Tare control |
Approx. 1500g max. |
|||
|
Transducer |
Load cell |
|||
|
Circuit |
Microprocessor |
|||
|
Auto self calibration |
Use 500g or 1000g standard weight to execute self-calibration automatically. |
|||
|
Data Output |
RS 232/USB PC computer interface. *Connect the optional RS232 cable UPCB-02 will get the RS232 plug. *Connect the optional USB cable USB-01 will get the USB plug. |
|||
|
Counting sample no. |
10 PCs, 20 PCs, 50 PCs or 100 PCs. |
|||
|
Operating temperature |
0 to 50 ℃ ( 32 to 122 ℉ ). |
|||
|
Operating humidity |
Less than 80% RH. |
|||
|
Size |
Cabinet |
250 x 190 x 70 mm. |
||
|
Platform |
185 x 185 mm. |
|||
|
Power Supply |
6 x 1.5V AA (UM-3) battery x 6 PCs, or DC 9V adapter ( optional ). |
|||
|
Power Consumption |
Approx. DC 17 mA. |
|||
|
Accessory Included |
Users Manual |
|||
|
Optional Accessories |
*Software (Windows): SW-U801-WIN, SW-E802. *RS232 cable, UPCB-02. *USB cable, USB-01. *AC/DC 9V power adapter, AP-9VA. |
|||
Downloads
Couldn't load pickup availability
Product Information
Product Information
Lutron balances provide you with the most precise and accurate weighing results, even under the toughest weighing conditions.
The GM-1500P precision balance has readability range between 0.5g and 1500g and a resolution of 0.05 g. This unit has a large 0.8-inch LCD display and 7.25” x 7.25” weighing platform. The unit can measure weight in grams or ounces. This balance can be powered using AA batteries or AC power.
These extremely durable balances made of heavy-duty ABS and stainless steel, are designed to withstand accidental overload, harsh chemicals, dust and dirt. Smooth surfaces and rounded edges make the whole balance extremely easy to clean.
- Microprocessor circuit with high accuracy & better performance
- High resolution & wide measuring capacity, 1500g x 0.05g, 50oz x 0.002oz
- Large LCD display, 20.9mm (0.8" digit size)
- Built-in gram & oz display unit, select by internal slide switch
- Built-in self calibration system - the calibration value can memorize into EEPROM circuit permanently even with the power off
- Counting scale function
- RS232/USB computer interface (with optional cable)
- Uses 6 AA batteries (included) or AC/DC adapter power source (optional)
- Heavy duty ABS housing
Specifications
|
SPECIFICATIONS |
||||
|
Display |
LCD, 20.9 mm ( 0.8" ) digit size, 5 digits with annunciator. |
|||
|
Function |
Weighting & counting. |
|||
|
Weighting range & resolution |
Unit |
Range |
Resolution |
|
|
Grams |
0.50g to 1500g |
0.05g |
||
|
Ounces |
0.02oz to 49.998oz |
0.002oz |
||
|
50oz to 52.8oz |
0.005oz |
|||
|
Min. display weight |
g |
0.50g |
||
|
oz |
0.018oz |
|||
|
Unit select |
Grams or ounces, select by internal slide switch |
|||
|
Accuracy |
± ( 0.05 % + 0.2g ) *Within two hours after self calibration be executed at 23 ± 5℃ *Spec. tested under the environment RF Field Strength less than 3 V/M and frequency less than the 30 MHz only |
|||
|
Sampling time |
Approx. 1 second |
|||
|
Tare control |
Approx. 1500g max. |
|||
|
Transducer |
Load cell |
|||
|
Circuit |
Microprocessor |
|||
|
Auto self calibration |
Use 500g or 1000g standard weight to execute self-calibration automatically. |
|||
|
Data Output |
RS 232/USB PC computer interface. *Connect the optional RS232 cable UPCB-02 will get the RS232 plug. *Connect the optional USB cable USB-01 will get the USB plug. |
|||
|
Counting sample no. |
10 PCs, 20 PCs, 50 PCs or 100 PCs. |
|||
|
Operating temperature |
0 to 50 ℃ ( 32 to 122 ℉ ). |
|||
|
Operating humidity |
Less than 80% RH. |
|||
|
Size |
Cabinet |
250 x 190 x 70 mm. |
||
|
Platform |
185 x 185 mm. |
|||
|
Power Supply |
6 x 1.5V AA (UM-3) battery x 6 PCs, or DC 9V adapter ( optional ). |
|||
|
Power Consumption |
Approx. DC 17 mA. |
|||
|
Accessory Included |
Users Manual |
|||
|
Optional Accessories |
*Software (Windows): SW-U801-WIN, SW-E802. *RS232 cable, UPCB-02. *USB cable, USB-01. *AC/DC 9V power adapter, AP-9VA. |
|||
