Introducing the 3nh YG60 Series Gloss Meter: Precision and Reliability.
The 3nh YG60 Gloss Meter is a versatile instrument for measuring surface gloss with high accuracy. Featuring a 60° measurement angle, it delivers reliable gloss readings on various materials, including paint, coatings and plastics.
This instrument boasts an ergonomic design, an easy-to-read LCD screen, 4 measuring modes and a user-friendly interface, making it ideal for quality control in industrial and commercial applications including: paints, coatings, plastics, ink, rubber, printing, paper, glass, hardware, ceramic, marble, etc.
- Stores over 35,000 readings
- Auto calibration
- Auto power-off (from 30-120 seconds)
- USB/RS-232 interface and Bluetooth 2.1 dual mode
- Complies with: ISO2813, ASTM523, GB/T9754 & JJG696
- GQC6 PC software for reporting and extended functions
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | YG60 Precision Gloss Meter |
| Measuring Angle | 60° |
| Measurement Range | 60°: 0-1000GU |
| Division Value | 0.1GU |
| Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode |
| Measuring Time | 0.5S |
| Repeatability | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
| Accurate | Conform with JJG696 requirements |
| Auto Power-off | Within 30s-120s |
| Calibration | Auto Calibration |
| Language | English & Chinese |
| Storage | 35000 (Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
| Display | 2.3 inch white and black screen |
| Size | 160*52*84mm |
| Weight | About 300g |
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
| Interface | USB |
| PC Software | GQC6 QC software can printing testing report and with more extended functions |
| Operation Temperature Range | 0-40℃（32-104° F） |
| Storage Temperature Range | -20-50℃（-4-122° F） |
| Humidity Range | < 85% RH, without condensation |

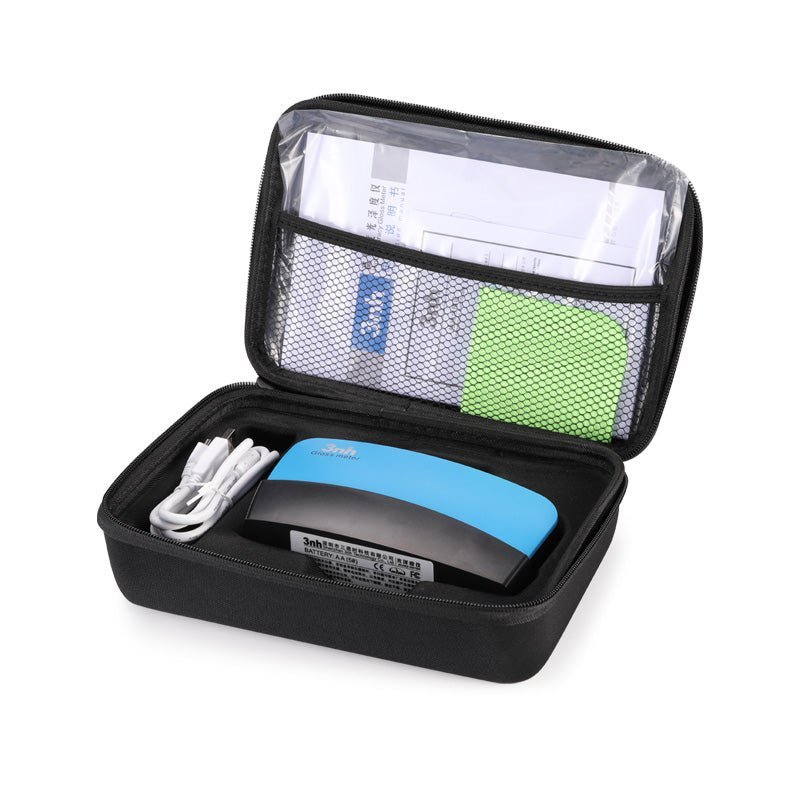

| Standard Accessories | USB cable, user manual, calibration plate, QC software |
| Optional Accessories | Mini Printer, Bluetooth |
