16 Channel Multi-Parameter Datalogger | Temperature RTD Pressure 4-20mA 0-5V Voltage with RS485
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

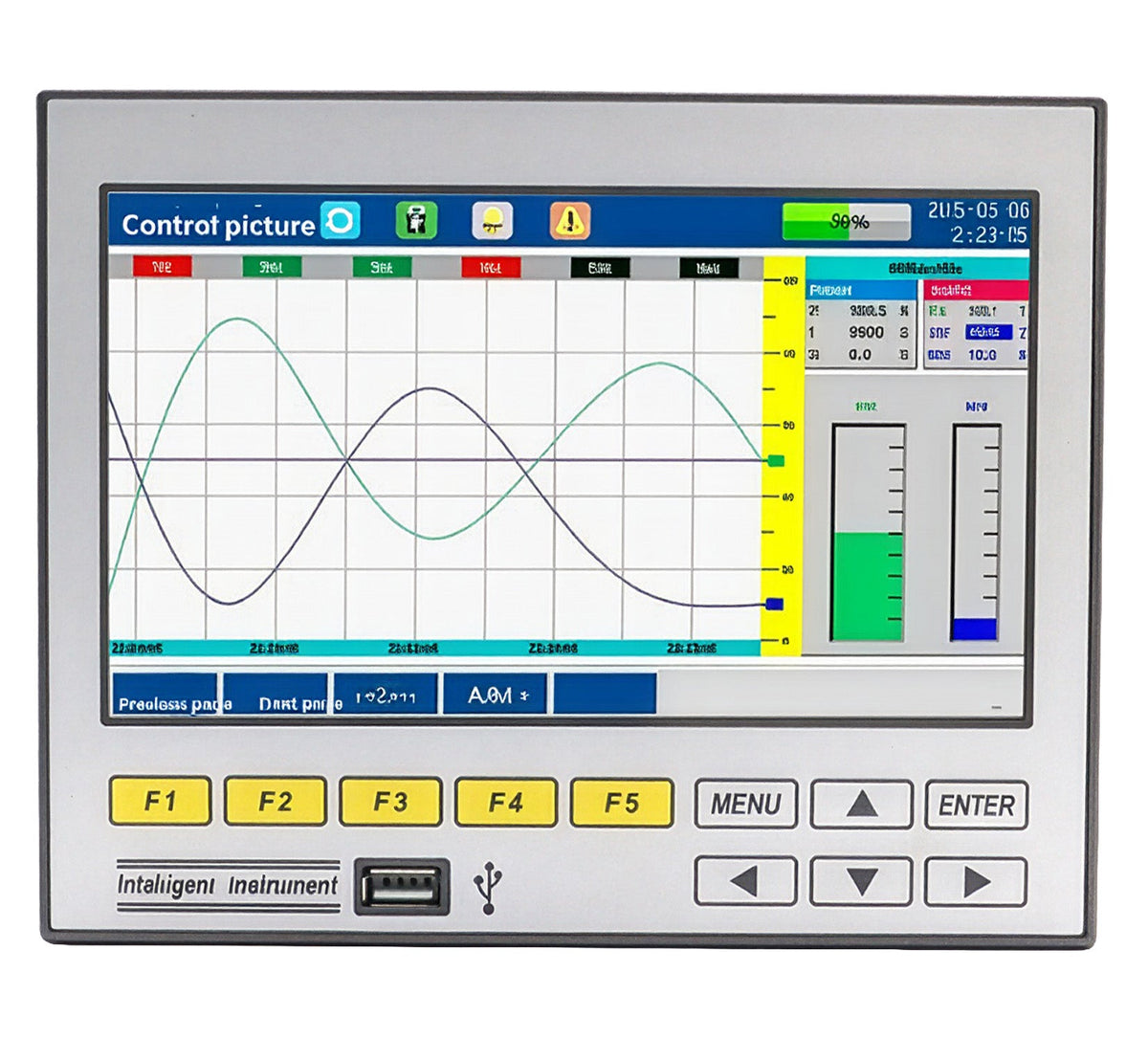

The SPSGT71R is a high-integration, color touchscreen data logger designed for advanced process monitoring and industrial automation.
This item ships direct from the manufacturer. Please allow 10-15 business days for order processing and shipment.
Built for flexibility and reliability, it supports multi-channel input, control output, and seamless communication across a wide range of applications.

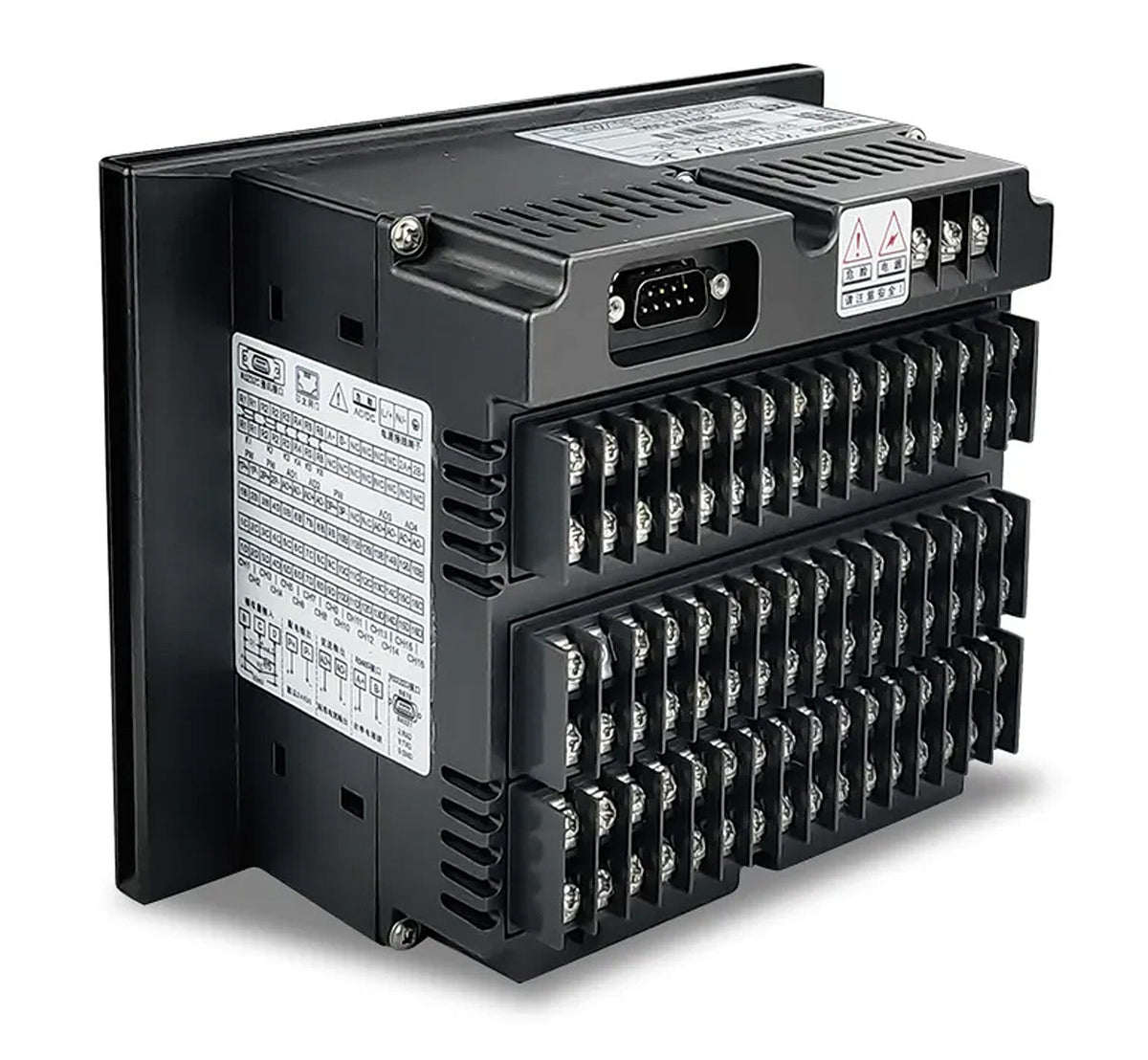

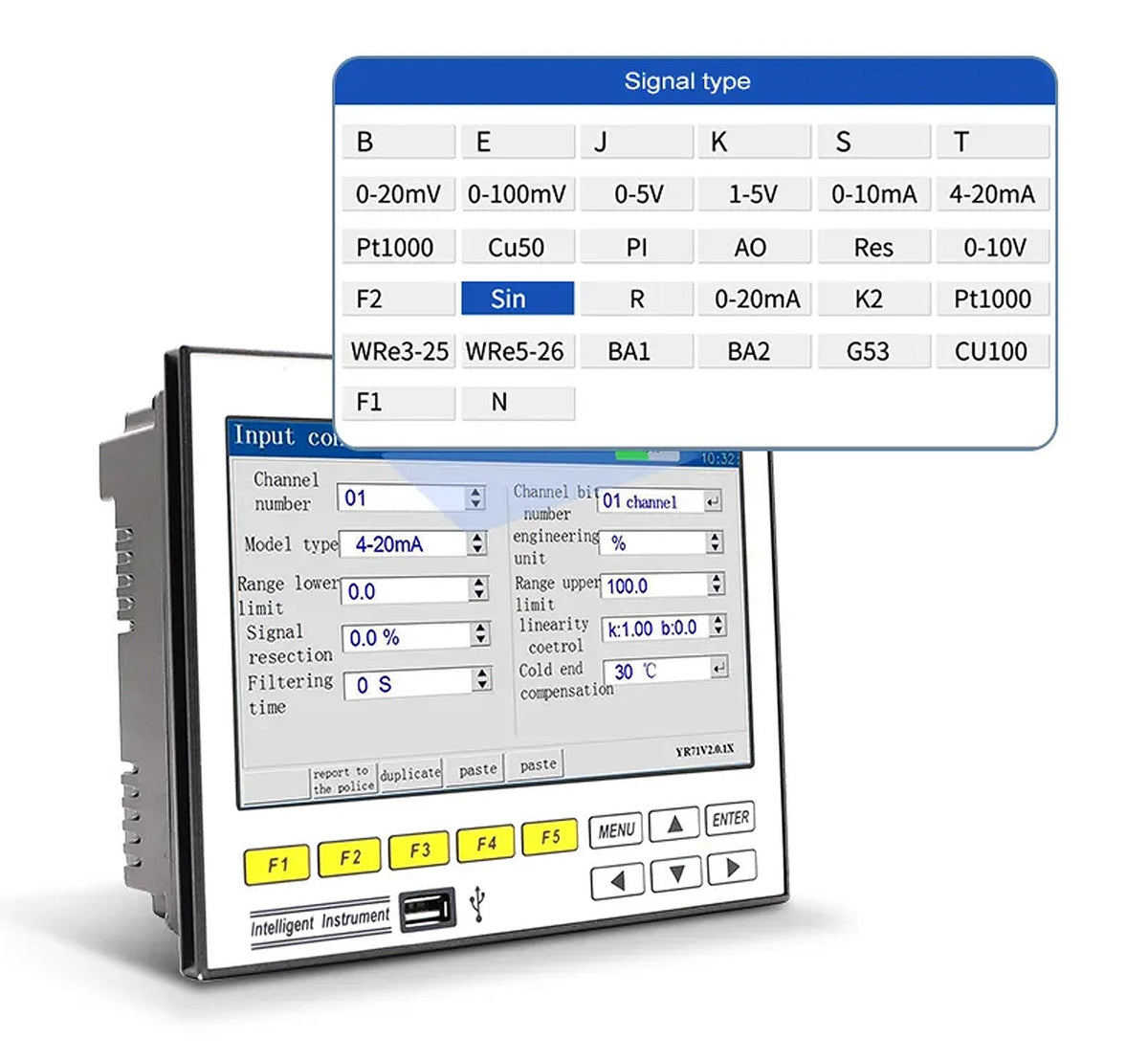

Engineered for demanding environments, the SPSGT71R accommodates 1 to 16 channels of analog input, along with 1 to 6 relay outputs for precise control and response. It also provides 1 to 6 channels of 24V DC sensor power supply, simplifying system integration and reducing the need for external power sources.
Dual communication interfaces, RS232C and RS485, enable easy connectivity to external devices and control systems. The RS232C interface supports direct connection to a micro printer for on-site data output and reporting. Built-in power-off protection and clock protection ensure data integrity and continuous operation, even in the event of power interruptions.
Applications
Ideal for use in petrochemical processing, food production, environmental monitoring, and medical applications, the SPSGT71R enhances operational visibility and supports smarter, intelligent manufacturing and energy management.
Specifications

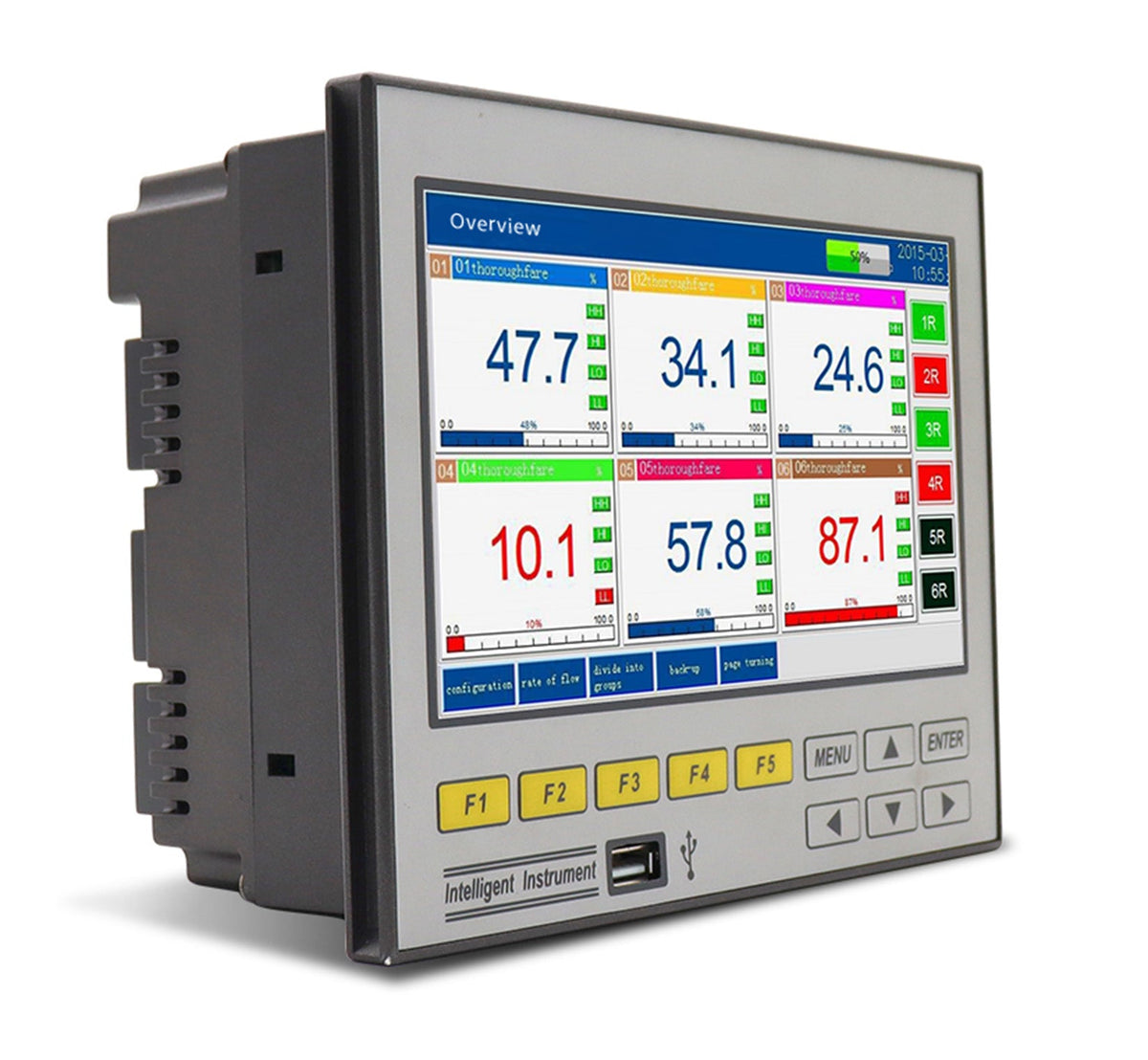

| Screen | 7-inch true color TFT LCD (800 × 480 resolution) |
|---|---|
| Accuracy | Real-time display: ±0.2% F.S. Recall accuracy: ±0.2% F.S. Note: Thermocouple requires cold junction compensation |
| Processor | High-performance ARM Cortex-M3 32-bit RISC processor Supports simultaneous data collection, recording, display, and alarm functions |
| Storage Module | Parallel NAND Flash for historical data storage Serial FRAM for parameter storage |
| Distribution Output | Supports up to 3 transmitter power outputs (isolated 24VDC) ≤60mA per channel Optional 12VDC / 5VDC isolated outputs available |
| Transmitter Output | Up to 4 channels standard current output Load capacity: 750Ω (max) Compatible with display instruments, DCS, and PLC systems for long-distance transmission |

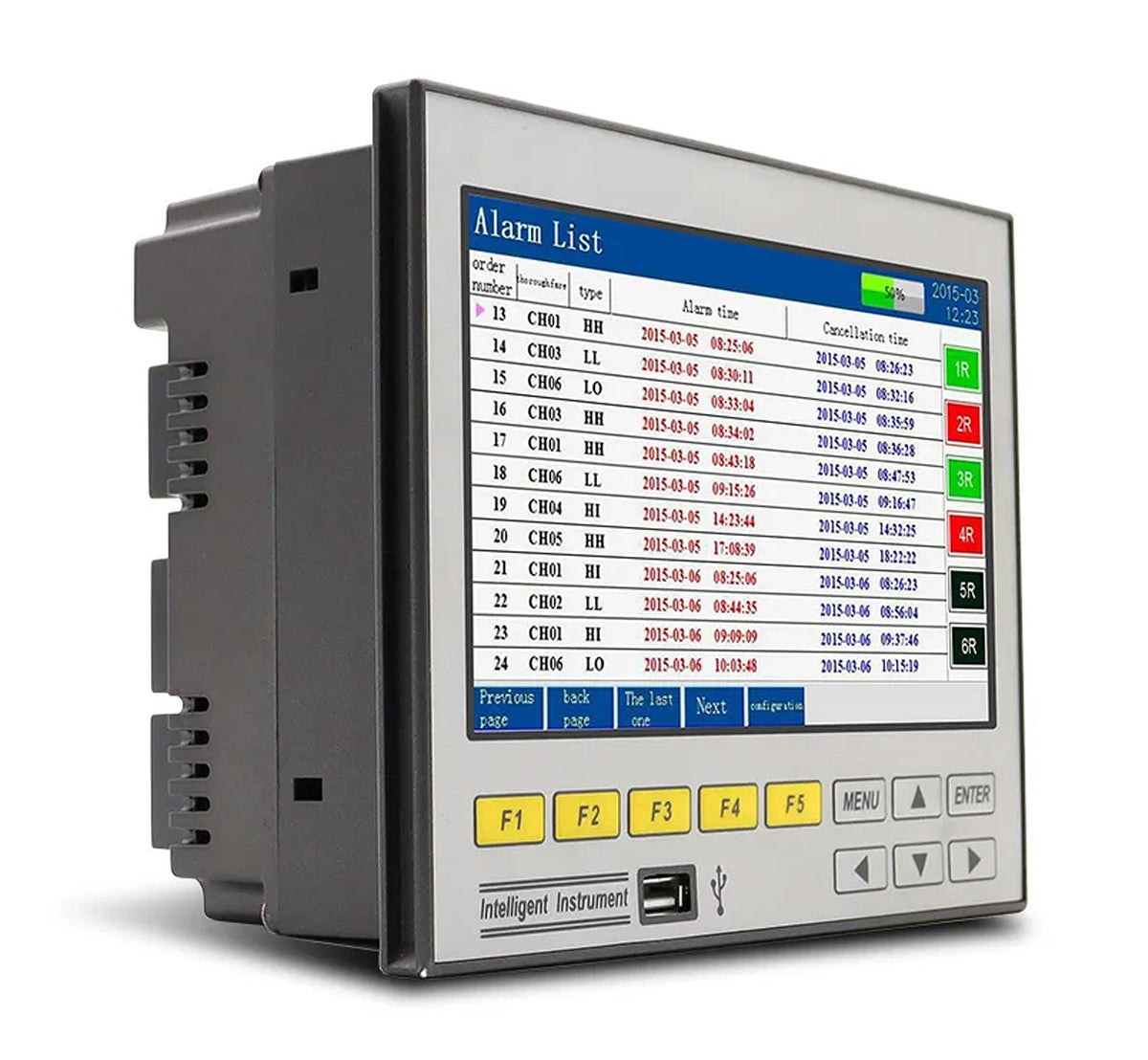

| Relay Alarm Output | Up to 6 relay outputs Contact rating: 1A @ 250VAC / 1A @ 30VDC Configurable upper and lower alarm limits |
| Communication | RS232 / RS485 interfaces Supports Modbus RTU protocol Standard RJ45 Ethernet interface |
| Printing | RS232 interface for direct micro-printer connection Baud rate: 1200 |
| Recording Capacity | 64MB / 128MB / 192MB / 248MB (optional) |
| Recording Interval | 1 to 240 seconds Selectable intervals: 1, 2, 4, 8, 12, 24, 36, 60, 120, 180, 240 seconds |
| Data Backup & Transfer | Supports USB 1.1 and 2.0 flash drives Compatible with 1GB to 32GB USB storage devices |
| Power Supply | 100–240VAC (rated 220VAC) 24VDC 50/60Hz |
| Power Failure Protection | Built-in memory protection for parameters and historical data Permanent data retention after power loss |
| Clock Protection | Integrated hardware clock maintains accurate time after power loss |
| Thermocouple Cold Junction Error | ±2°C |
| Working Environment | Temperature: 32°F to 122°F (0°C to 50°C), avoid direct sunlight Humidity: 0–85% RH (non-condensing) Altitude: <2000m |
Downloads
SPSGT71R Datalogger Users Manual
SPGT71R/SPGT72R Paperless Recorder V1.3.5.6 Software
Couldn't load pickup availability
Product Information
Product Information
The SPSGT71R is a high-integration, color touchscreen data logger designed for advanced process monitoring and industrial automation.
This item ships direct from the manufacturer. Please allow 10-15 business days for order processing and shipment.
Built for flexibility and reliability, it supports multi-channel input, control output, and seamless communication across a wide range of applications.
Engineered for demanding environments, the SPSGT71R accommodates 1 to 16 channels of analog input, along with 1 to 6 relay outputs for precise control and response. It also provides 1 to 6 channels of 24V DC sensor power supply, simplifying system integration and reducing the need for external power sources.
Dual communication interfaces, RS232C and RS485, enable easy connectivity to external devices and control systems. The RS232C interface supports direct connection to a micro printer for on-site data output and reporting. Built-in power-off protection and clock protection ensure data integrity and continuous operation, even in the event of power interruptions.
Applications
Ideal for use in petrochemical processing, food production, environmental monitoring, and medical applications, the SPSGT71R enhances operational visibility and supports smarter, intelligent manufacturing and energy management.
Specifications
| Screen | 7-inch true color TFT LCD (800 × 480 resolution) |
|---|---|
| Accuracy | Real-time display: ±0.2% F.S. Recall accuracy: ±0.2% F.S. Note: Thermocouple requires cold junction compensation |
| Processor | High-performance ARM Cortex-M3 32-bit RISC processor Supports simultaneous data collection, recording, display, and alarm functions |
| Storage Module | Parallel NAND Flash for historical data storage Serial FRAM for parameter storage |
| Distribution Output | Supports up to 3 transmitter power outputs (isolated 24VDC) ≤60mA per channel Optional 12VDC / 5VDC isolated outputs available |
| Transmitter Output | Up to 4 channels standard current output Load capacity: 750Ω (max) Compatible with display instruments, DCS, and PLC systems for long-distance transmission |
| Relay Alarm Output | Up to 6 relay outputs Contact rating: 1A @ 250VAC / 1A @ 30VDC Configurable upper and lower alarm limits |
| Communication | RS232 / RS485 interfaces Supports Modbus RTU protocol Standard RJ45 Ethernet interface |
| Printing | RS232 interface for direct micro-printer connection Baud rate: 1200 |
| Recording Capacity | 64MB / 128MB / 192MB / 248MB (optional) |
| Recording Interval | 1 to 240 seconds Selectable intervals: 1, 2, 4, 8, 12, 24, 36, 60, 120, 180, 240 seconds |
| Data Backup & Transfer | Supports USB 1.1 and 2.0 flash drives Compatible with 1GB to 32GB USB storage devices |
| Power Supply | 100–240VAC (rated 220VAC) 24VDC 50/60Hz |
| Power Failure Protection | Built-in memory protection for parameters and historical data Permanent data retention after power loss |
| Clock Protection | Integrated hardware clock maintains accurate time after power loss |
| Thermocouple Cold Junction Error | ±2°C |
| Working Environment | Temperature: 32°F to 122°F (0°C to 50°C), avoid direct sunlight Humidity: 0–85% RH (non-condensing) Altitude: <2000m |
Downloads
SPSGT71R Datalogger Users Manual
SPGT71R/SPGT72R Paperless Recorder V1.3.5.6 Software
