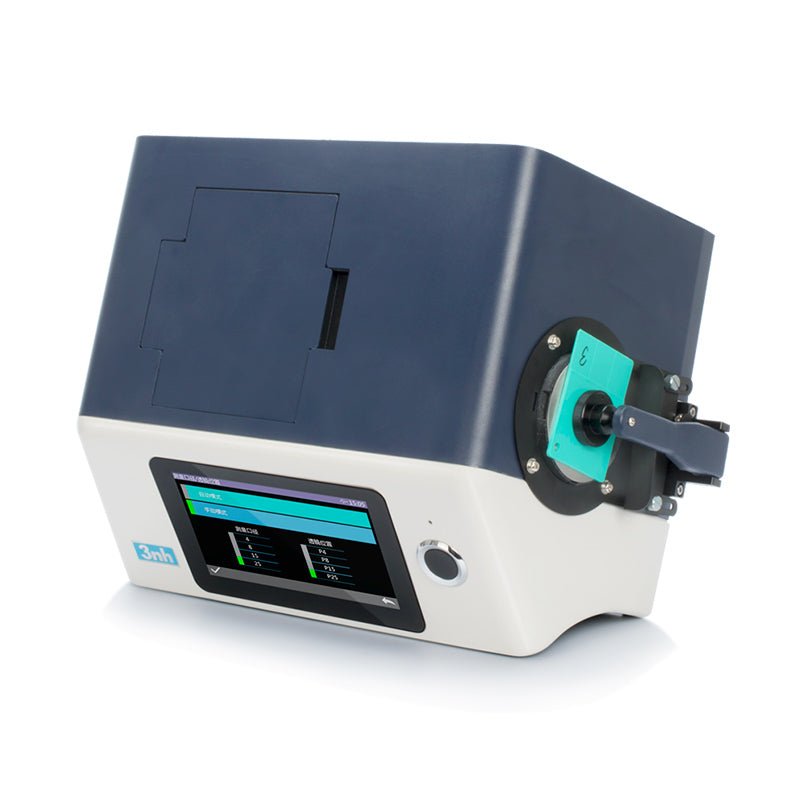

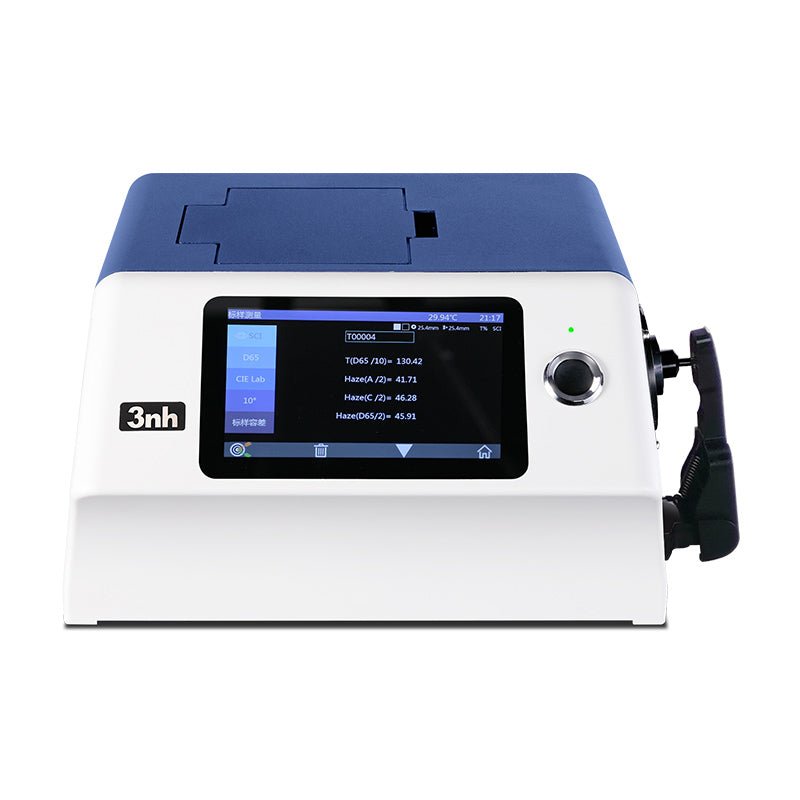

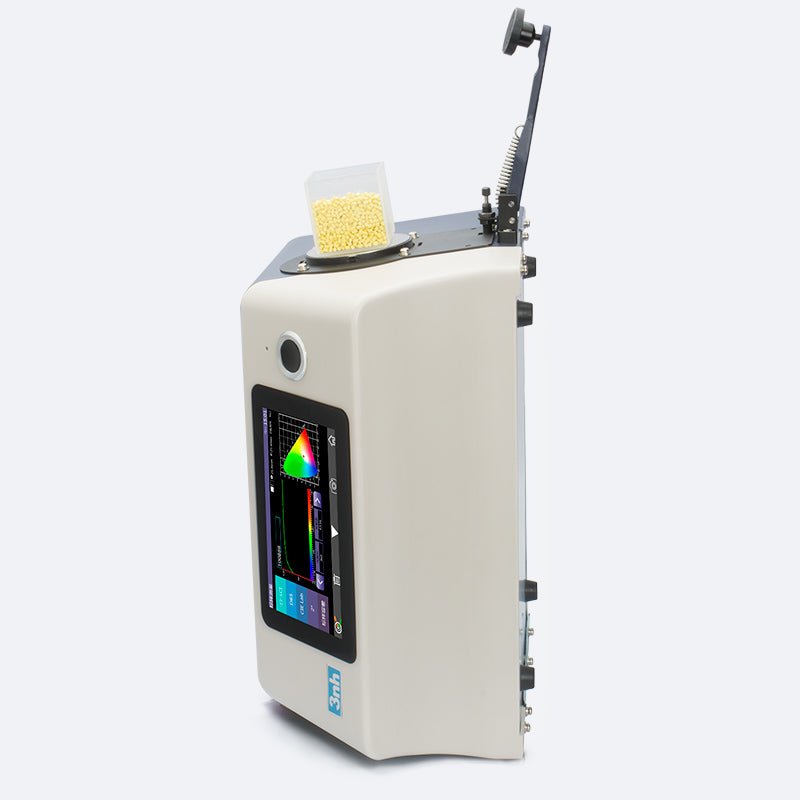

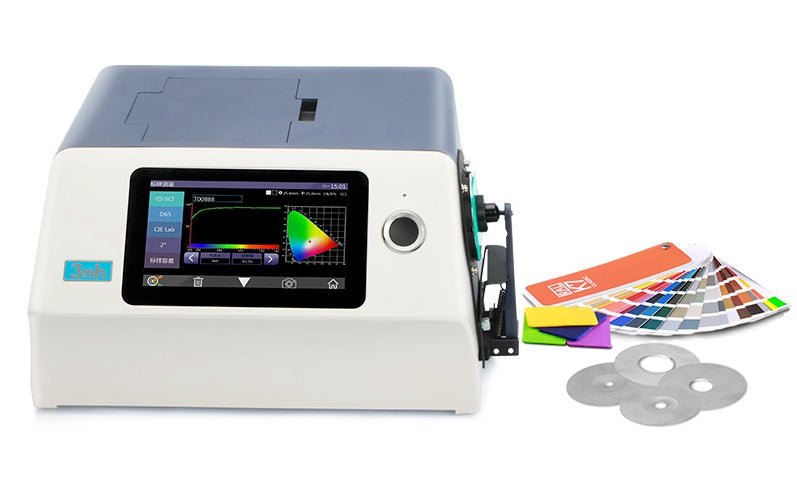

YS6010 Benchtop Grating Spectrophotometer
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
The YS6010 is a Benchtop Grating Spectrophotometer developed by 3nh using an advanced proprietary technology.
The YS6010 offers numerous features including a 7 inch TFT touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (with or without UV). Highly stable and precise color measurement, ample storage and powerful software all make the YS6010 ideal for color analysis in R&D, commercial, manufacturing and laboratory environments.
Industry Applications
YS6010 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories, and can be widely applied in different industries such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food and others.
The 3NH YS6010 Benchtop Grating Spectrophotometer is engineered with cutting-edge grating spectrophotometry technology and sets a new standard for accuracy and reliability in color analysis. Designed for professionals who demand uncompromising performance, the YS6010 offers unparalleled capabilities for industries where precise color reproduction is paramount, such as in automotive coatings, plastics, and textiles.
Grating Spectrophotometry Excellence
The YS6010 utilizes advanced grating spectrophotometry technology to deliver exceptional spectral resolution and accuracy in color measurement. With its ability to precisely analyze the spectral characteristics of materials, this spectrophotometer ensures unparalleled color reproduction across various applications.
Benchtop Stability and Precision
Designed for laboratory and research environments, the YS6010 offers stability and precision in color measurement. Its benchtop design provides a controlled and stable platform for accurate measurements, making it an ideal choice for industries where precise color analysis is essential for research and development.
Comprehensive Color Data Analysis
Equipped with sophisticated algorithms and comprehensive color analysis capabilities, the YS6010 enables professionals to delve deep into color data. From analyzing metamerism to assessing color consistency under different lighting conditions, this spectrophotometer offers invaluable insights for industries where color accuracy is critical.
User-Friendly Interface
Despite its advanced features, the YS6010 boasts a user-friendly interface that simplifies operation for professionals of all skill levels. The intuitive design, coupled with a large touchscreen display, allows for effortless navigation and operation, ensuring that users can perform color measurements with ease and confidence.
Precision Redefined:
The 3NH YS6010 Benchtop Grating Spectrophotometer is not merely a color measurement device; it is a precision instrument engineered to meet the exacting demands of professionals in industries where color accuracy is non-negotiable. Whether you're conducting research in a laboratory setting or performing quality control checks in manufacturing processes, the YS6010 empowers you to achieve unparalleled precision and consistency in color analysis. Experience the pinnacle of color measurement technology with the 3NH YS6010 – where precision meets sophistication, setting the stage for excellence in color analysis.
- 7 inch TFT Capacitive Touchscreen Display
- Concave Grating
- Double Array 256 Image Element CMOS Sensor; Long life stable LED, UV LED
- Reflective and transmissive spectrum, accurate lab value, good to calculate color formula and do precise color transmission
- Auto identify measuring aperture - Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm, and users can also customize apertures
- Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision
- Wavelength range 360nm – 780nm. Built-in 400nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement
- Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable
- Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement
- A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions;
- Big capacity data storage for 20,000 test results
- Built-in camera locating
- Powerful extended functionality with included Windows/PC software
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | YS6010 Benchtop Spectrophotometer |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle); SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing); SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Application | It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Interval | 10nm |
| Semiband Width | 5nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position |
| Specular Component | Reflectance: SCI&SCE / Transmittance: SCI&SCE |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 |
| Color Difference Formula | ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc(2:1), ΔE * cmc(1:1), ΔE * 00, DINΔE 99, ΔE (Hunter) |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313) MI (Metamerism Index),APHA/Hazen/Pt-Co Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness,Gardner Index, Saybolt , 555 Index, Haze(ASTM D1003) |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, DLF, TL83, TL84, TPL5, U30 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Dimension | L*W*H=370x300x200mm |
| Weight | Approx. 9.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessories | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber |
| Optional Accessories | Micro-printer, Transmissive Test Component, Micro Aperture (4mm) transmission test clamp component, Instrument inversion components, culture dish |
| Notes | The specifications are subject to change without notice. |
