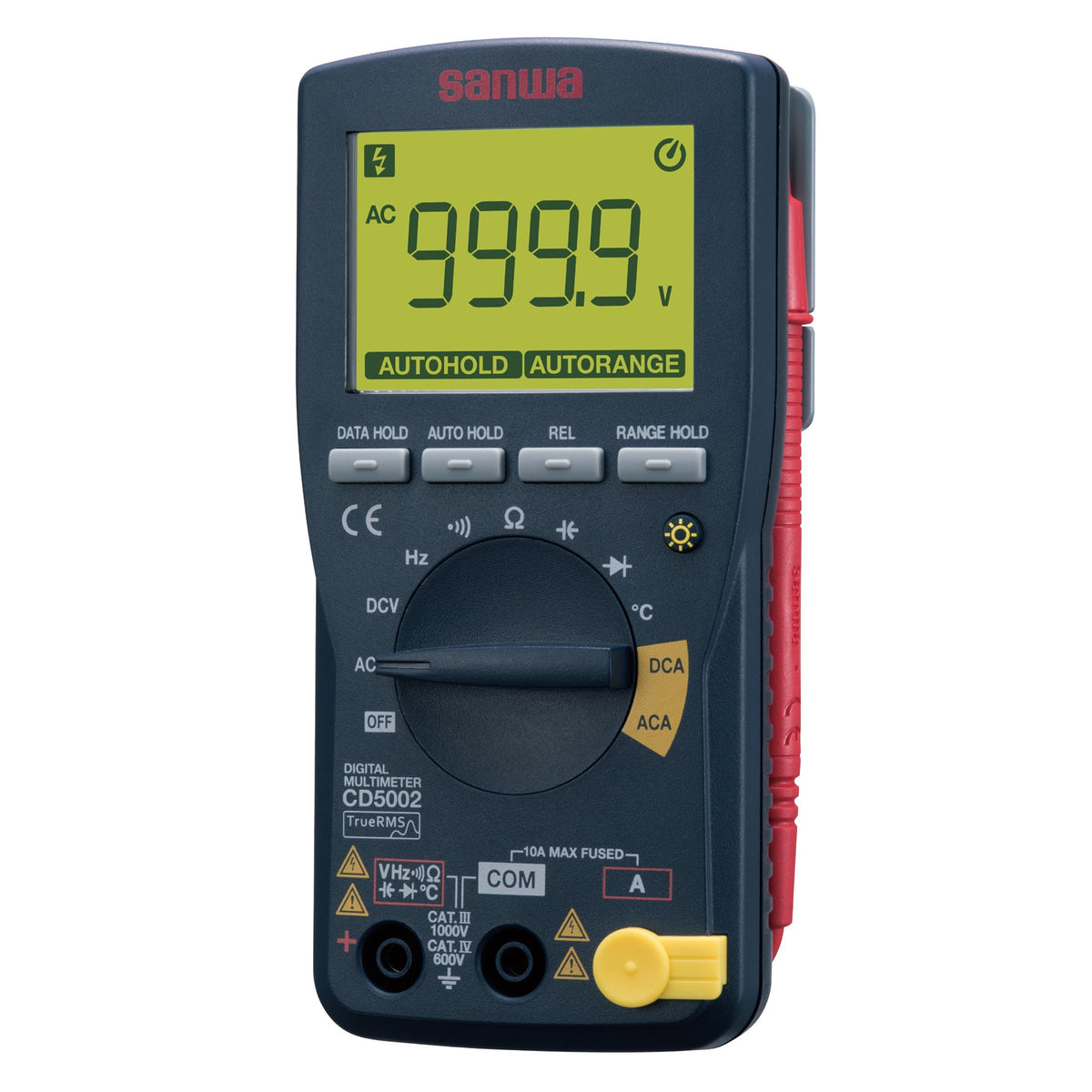

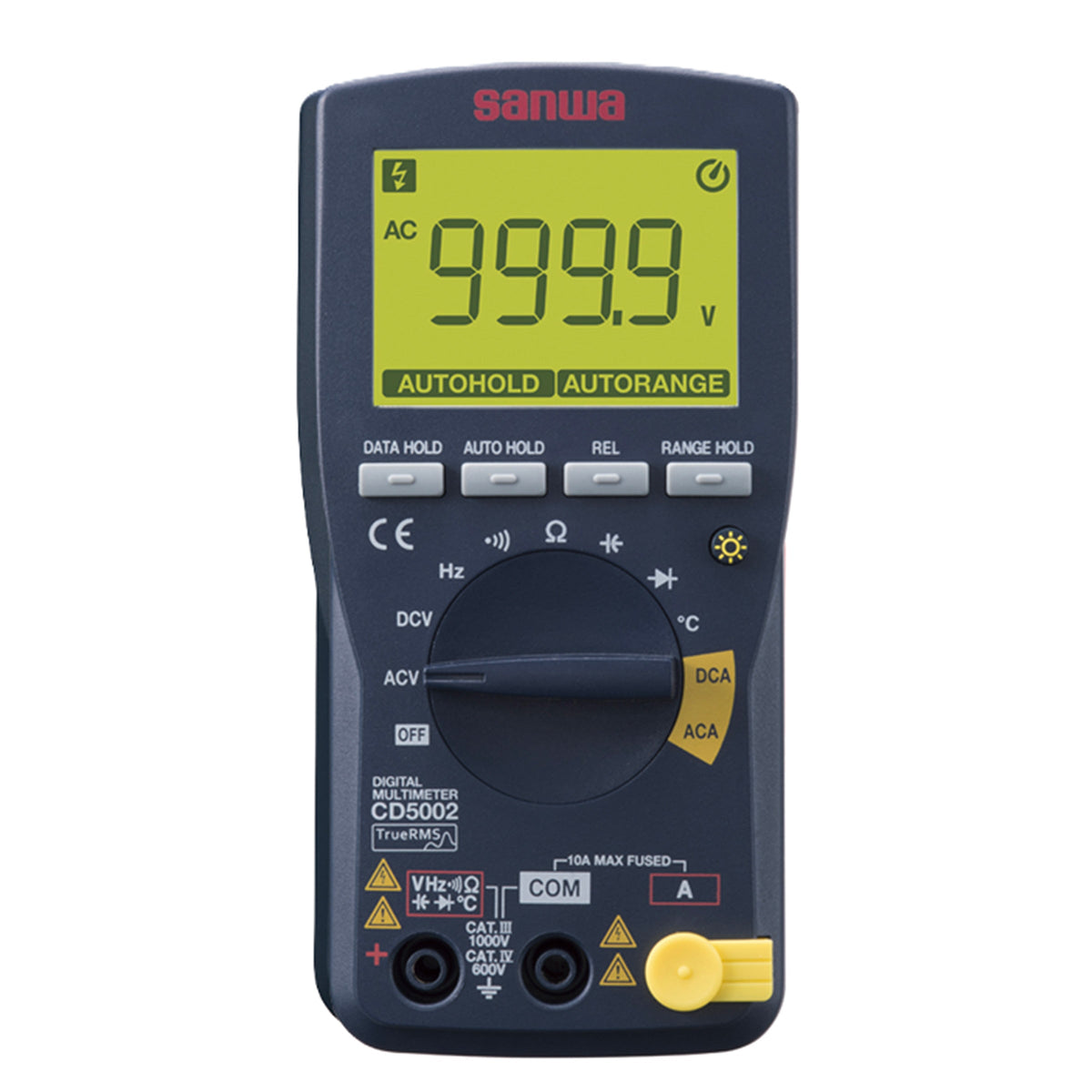

CD5002 | Digital Multimeter with True RMS
Download
Download
The Sanwa CD5002 is a compact, professional-grade digital multimeter designed for precision and reliability in a wide range of electrical measurement tasks.
Featuring true RMS measurement technology, it ensures highly accurate readings for both sinusoidal and non-sinusoidal AC signals, making it an indispensable tool for electricians, technicians, and engineers.
Equipped with a full 4-digit 9999 count display and a bright backlight, the CD5002 offers clear visibility even in dimly lit environments. Its versatile functions include DC and AC voltage/current measurement, resistance, capacitance, frequency, temperature (optional probe), continuity testing with an audible buzzer, and diode testing — all in a compact, ergonomic form factor.
Safety is paramount with CAT IV 600V / CAT III 1000V rating ensuring protection in demanding electrical environments. The multimeter features an auto hold function that automatically locks stable readings for easier data recording, range hold for steady measurement of varying signals, and an auto power-off function to preserve battery life.
With a sampling rate of 5 times per second and a bandwidth of 40-400 Hz, the CD5002 provides responsive and reliable results. Its lightweight design and user-friendly controls make it ideal for both field and bench use.
Key Features:
-
True RMS accurate measurements for AC voltage and current
-
Wide measurement ranges with 9999-count resolution
-
Measures voltage (DC/AC), current (DC/AC), resistance, capacitance, frequency, and temperature (optional probe)
-
Continuity buzzer and diode test for circuit diagnostics
-
Large, backlit LCD display for easy reading
-
Auto hold and range hold functions for convenience
-
CAT IV 600 V / CAT III 1000 V safety rated for professional use
-
Compact and ergonomic with a durable build
The Sanwa CD5002 is an essential tool for professionals seeking high accuracy and safety in one compact, reliable multimeter.
Specifications
| CD5002 | Measuring Range | Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DCV | 999.9m/9.999/99.99/999.9V | ±(0.5%+2) | 0.1mV | 10M～11MΩ |
| ACV | 999.9m/9.999/99.99/999.9V | ±(1.0%+5) | 0.1mV | 10M～11MΩ |
| DCA | 999.9mA/9.999A | ±(1.0%+5) | 0.1mA | 0.01Ω |
| ACA | 999.9mA/9.999A | ±(1.0%+5) | 0.1mA | 0.01Ω |
| Resistance | 999.9/9.999k/99.99k/999.9k/9.999M/99.99MΩ | ±(0.5%+5) | 0.1Ω | |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF | ±(5%+5) | 0.1nF | |
| Frequency | 9.999/99.99/999.9/9.999k/99.99kHz | ±(0.1%+5) | 0.001Hz | |
| Temperature | −40～800℃ | ±(3.0%+5) | 1℃ | |
| Continuity | Buzzer sounds at 30 to 70Ω or less. Open voltage: approx.0.6V | |||
| Diode test | Open voltage: approx. 3.3V | |||
| Display | numeral display 9999 |
| Sampling rate | 5 times/sec. |
| Bandwidth | 40～400Hz（Sine wave) |
| Battery | LR03x2 |
| Battery life | Approx. 460h at DCV range |
| Size/Mass | H149×W72×D37mm/Approx. 250g |
| Safety standards | IEC61010 CAT.IV600V/CAT.III 1000V |
