CTN-210B Coating Thickness Gauge
Regular price
Sale price
$367.00 USD
Regular price
$408.00 USD
Shipping calculated at checkout.
Download
Download

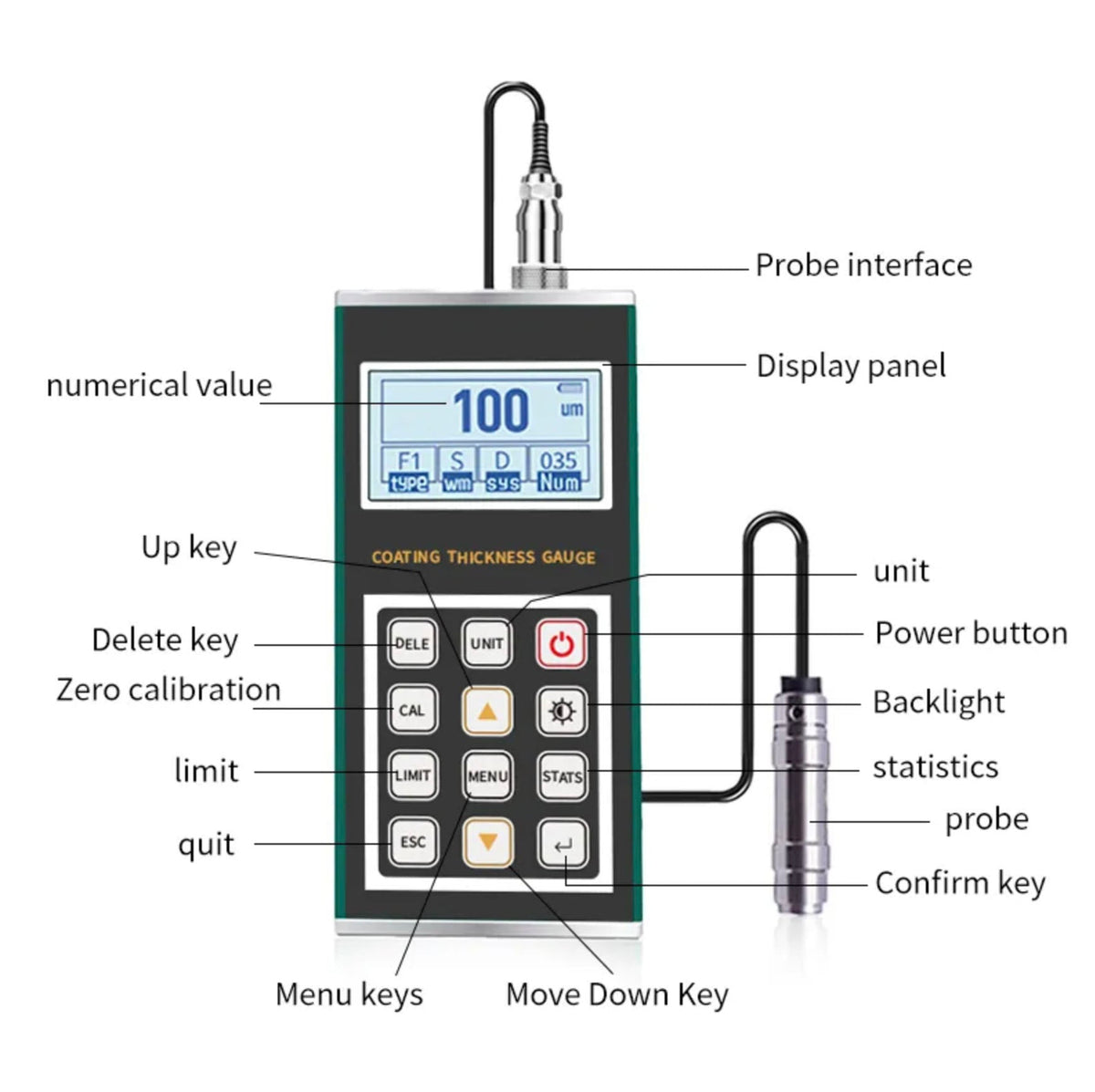

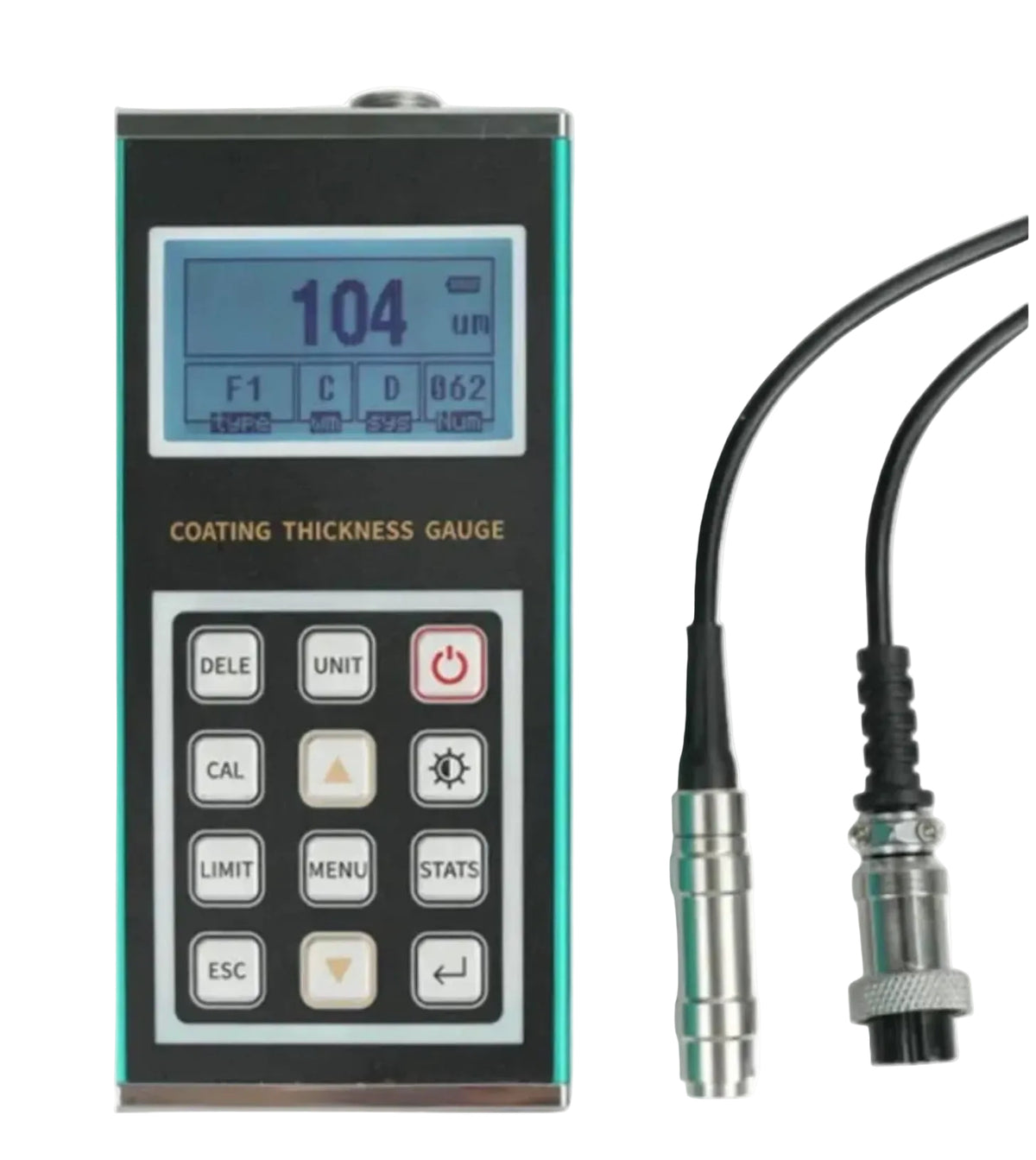

The BRK CTN-210B is a professional-grade coating thickness gauge designed for precise, non-destructive measurement of coating layers on both ferrous and non-ferrous substrates.
All BRK meters and probes ship direct from the manufacturer and require 10-15 business days for shipping.
Utilizing magnetic induction and eddy current measurement principles, it delivers accurate thickness readings for a wide range of coating types, including paint, plating, powder coatings, anodized layers and protective films.
Built with a rugged metal housing and user-friendly interface, the CTN-210B is suitable for demanding industrial environments. Its interchangeable probes and dual measurement modes make it ideal for automotive, marine, manufacturing and quality control applications where reliable coating assessment is critical.
-
Dual Measurement Technologies
Combines magnetic induction for ferrous substrates and eddy current for non-ferrous substrates, enabling versatile coating thickness assessment. -

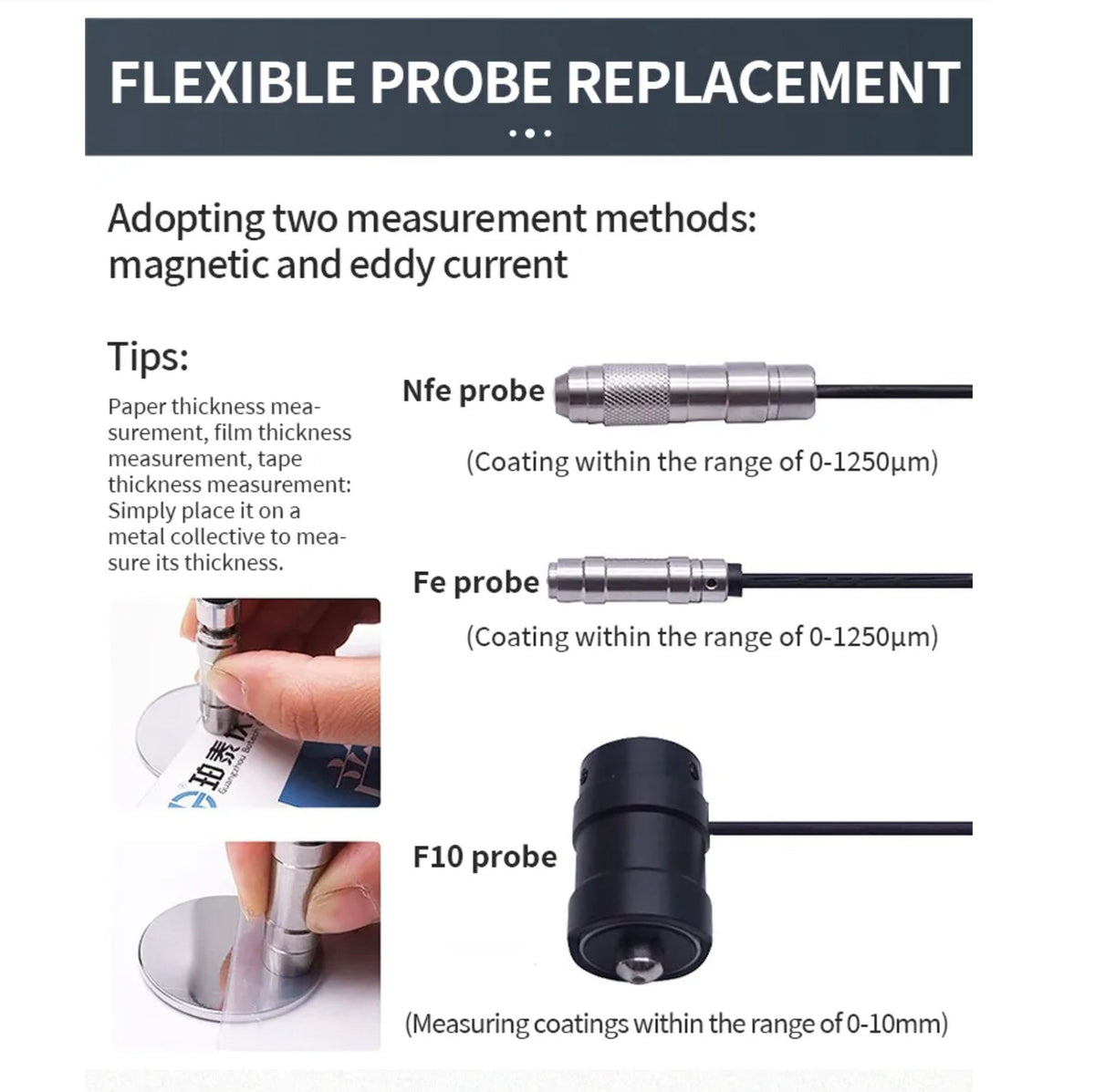

Broad Probe Options
Supports a selection of interchangeable probes with measurement ranges from 0–400 µm up to 0–10,000 µm depending on probe model. -
Precision & Accuracy
High-precision measurement with indication accuracy typically ±(2%H + 1) µm or better after two-point calibration, for reliable results. -
Continuous & Single-Point Modes
Supports both continuous scanning and single-point measurement for flexibility in inspection workflows. -
Statistical Functions
Includes average, maximum, minimum, count and standard deviation functions to support quality control analysis. -
Data Storage & PC Connectivity
Stores multiple groups of measurements and supports RS-232 data communication for transfer to a computer for reporting. -

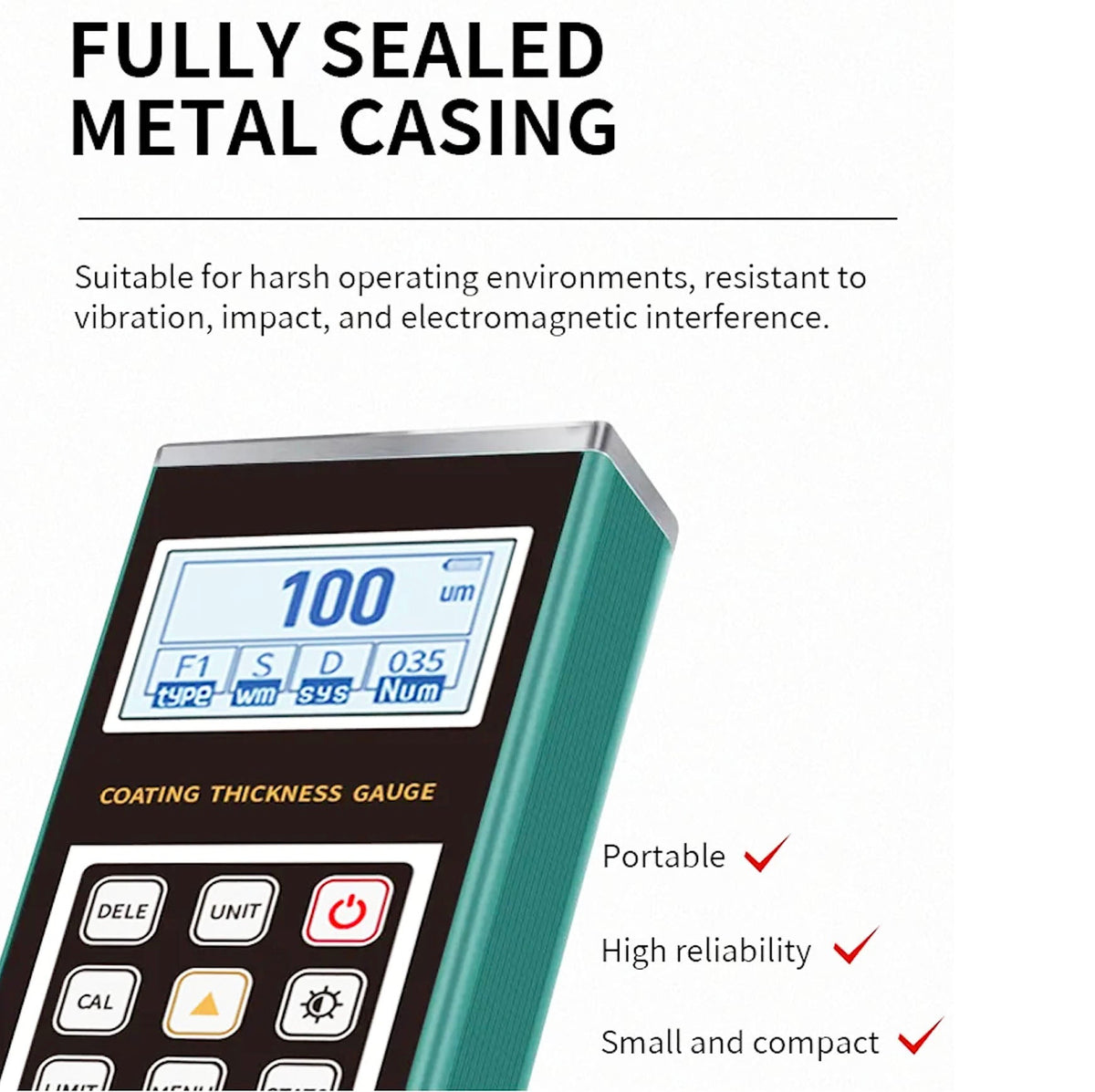

Robust & Portable
Durable metal enclosure with rechargeable lithium battery provides extended field operation.
Applications
- Paint and powder coating thickness verification
- Electroplating and anodizing inspection
- Automotive body and frame coating inspection
- Marine corrosion protection assessment
- Manufacturing quality control
- Surface treatment process monitoring

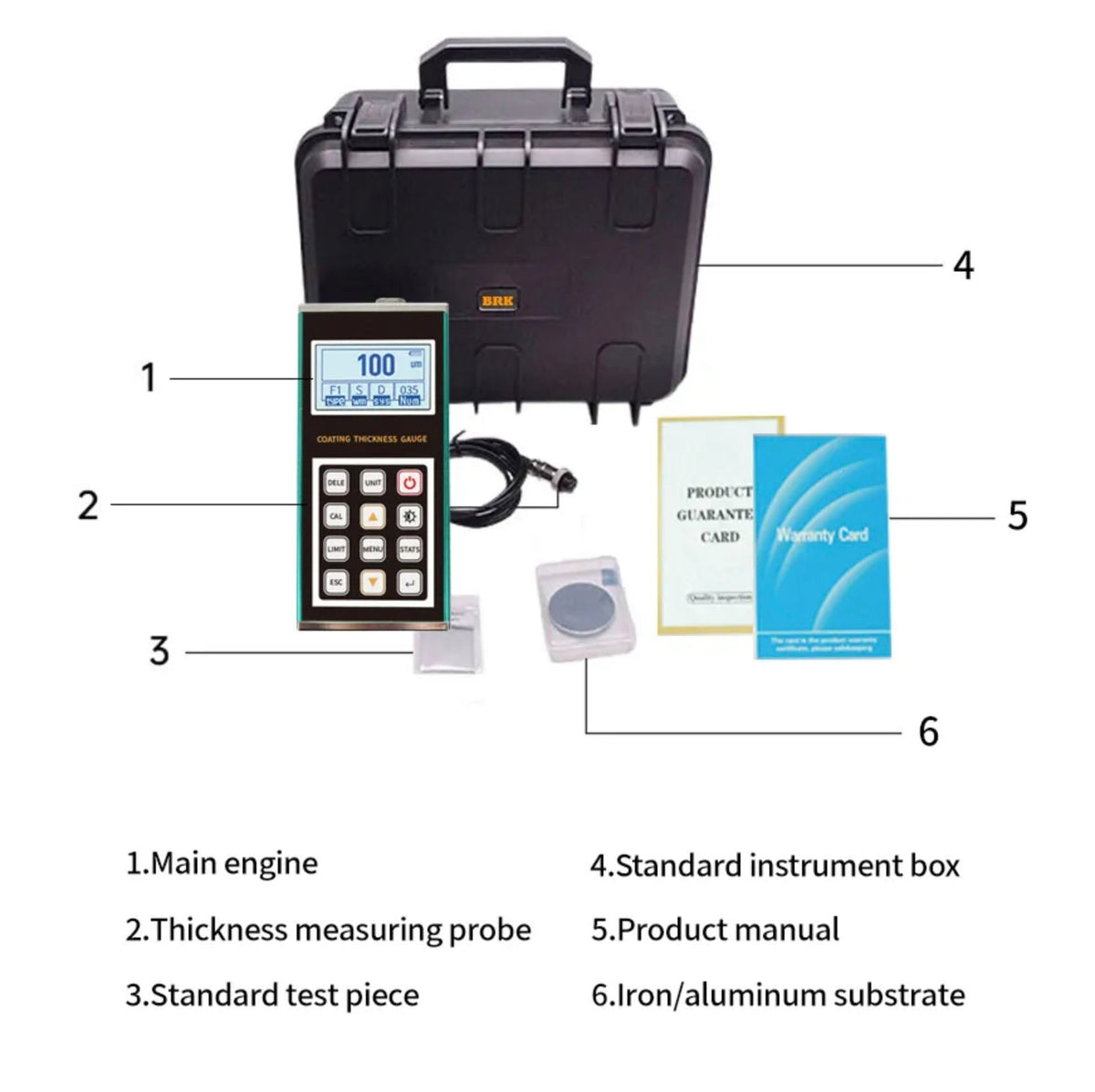

What’s Included
- CTN-210B main unit
- Calibration foil set
- Carrying case
- Charging cable
- User manual
Specifications
| Measurement Technologies | Magnetic induction (ferrous) & eddy current (non-ferrous) |
| Measurement Range | 0–10,000 µm depending on probe model |
| Resolution | 0.1 µm – 1 µm depending on probe model |
| Accuracy (After Calibration) | Typical ±(1%H + 1 µm) after two-point calibration |
| Measurement Modes | Continuous & single-point |
| Statistical Functions | Average, max, min, count, standard deviation |
| Data Storage | Up to 5 groups, 100 values each |
| Display | Large LCD with clear measurement readout |
| Power Supply | Rechargeable lithium battery |
| Probe Connection | Detachable cable (interchangeable probes) |
Downloads
Comparison Chart
| Coating Thickness Gauges | CTN-210B | CTN-210C | CTN-230 | CTN-300 | BT-T7 | BT-T7A |
|---|---|---|---|---|---|---|
| Type / Principle | Magnetic induction & eddy current coating gauge | Magnetic induction & eddy current coating gauge |
Magnetic induction & eddy current coating gauge. |
Magnetic induction & eddy current coating gauge, multi-probe system | Through-coating ultrasonic thickness gauge | Through-coating ultrasonic thickness gauge |
| Measurement Range | Probe dependent, up to 0–10,000 μm | Probe dependent, micron to millimeter range | ypically up to ~1250 µm | Probe dependent, up to 13 mm (13,000 μm) depending on probe | 0.7–500 mm (standard mode, steel) | 0.7–350 mm (standard mode, steel) |
| Through-Coating Capability | Measures coating thickness only | Measures coating thickness only | Measures coating thickness only | Measures coating thickness only | Measures substrate thickness through coatings up to 5 mm | Measures substrate thickness through coatings up to 3 mm |
| Resolution | 0.1–1 μm depending on probe | 0.1–1 μm depending on probe | Up to 0.1 µm depending on probe | Up to 0.1 μm depending on probe | 0.01 mm | 0.01 mm |
| Accuracy | Typically ±(2%H + 1 μm) after calibration | Typically ±(1%H + 1 μm) after calibration | Approx. ±(1–3%) after calibration | Probe dependent, industrial QC grade | ±(0.6%H + 0.05) mm | ±(0.6%H + 0.1) mm |
| Probe Support | Multiple interchangeable probes | Multiple interchangeable probes | Multiple interchangeable probes | Multiple interchangeable probes | Standard, micro, coarse and high-temp probes | Standard, micro, coarse and high-temp probes |
| Data Handling | Group storage with PC export | Internal memory with USB/RS232 export | Group storage with PC export | Data storage with statistical functions | Standard thickness readout | Standard thickness readout |
| Power Supply | Rechargeable lithium battery | Rechargeable battery | AA Batteries | Rechargeable lithium-ion battery | Rechargeable Li-ion battery, 160+ hrs typical | AA batteries, 50+ hrs typical |
| Primary Use Case | Industrial coating thickness measurement | Advanced coating inspection with data functions | Industrial coating thickness measurement | High-end multi-probe coating inspection | Substrate thickness through coatings | Substrate thickness through coatings, mid-range |
