CTN-230 Coating Thickness Gauge
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

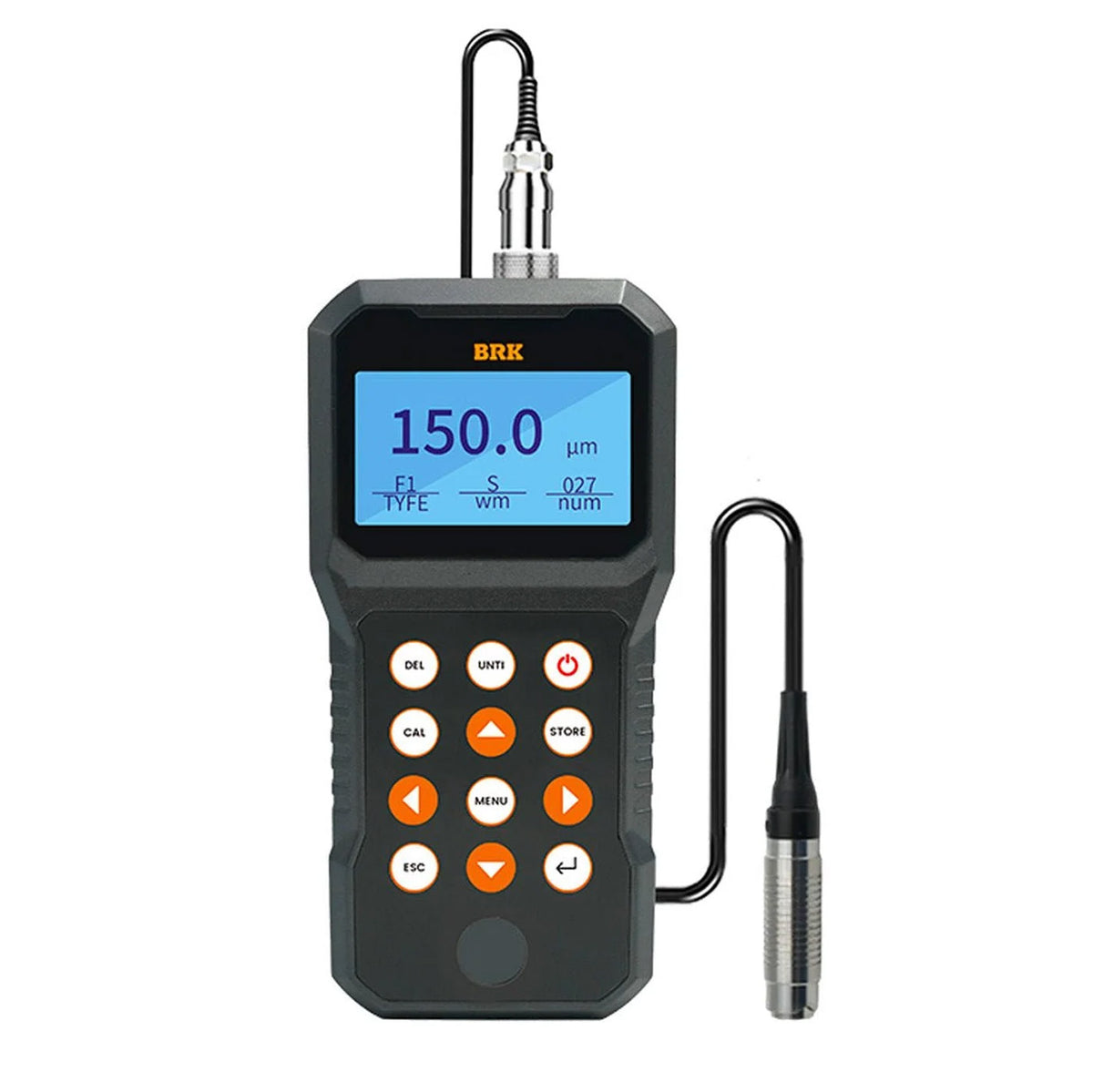

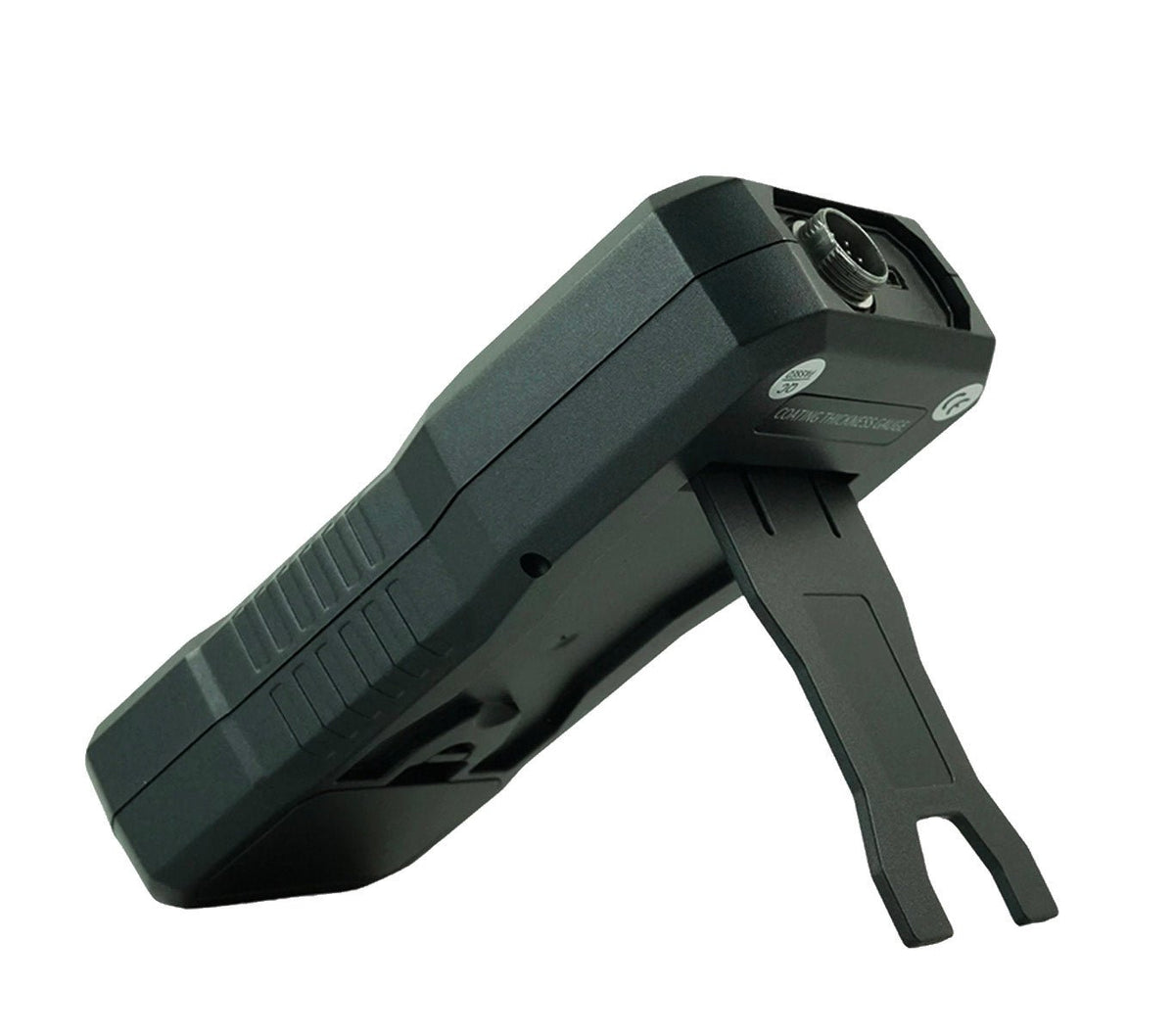

The BRK CTN-230 is a high-precision coating thickness gauge engineered for fast, accurate, and non-destructive measurement of coatings on both ferrous and non-ferrous metal substrates.
Ordering Notes:
-
BRK CTN-230 meter and probes are sold separately. Please select the desired probe for your specific application when purchasing this meter.
- All BRK meters and probes ship direct from the manufacturer and require 10-15 business days for shipping.
Also see: BRK CTN-230NF
By combining magnetic induction for steel surfaces with eddy current technology for non-ferrous materials such as aluminum, copper, and brass, the CTN-230 automatically identifies the substrate and applies the appropriate measurement method, ensuring consistent and reliable results across a wide range of applications.
Designed with real-world inspection environments in mind, the CTN-230 delivers excellent repeatability and measurement stability, even when used in demanding industrial settings. Its fast response time allows users to take rapid spot checks or continuous measurements, making it ideal for high-throughput inspection workflows where efficiency is critical. Whether verifying paint thickness on automotive panels, checking plating layers in manufacturing, or ensuring proper corrosion protection coatings, the CTN-230 provides dependable performance with minimal setup.

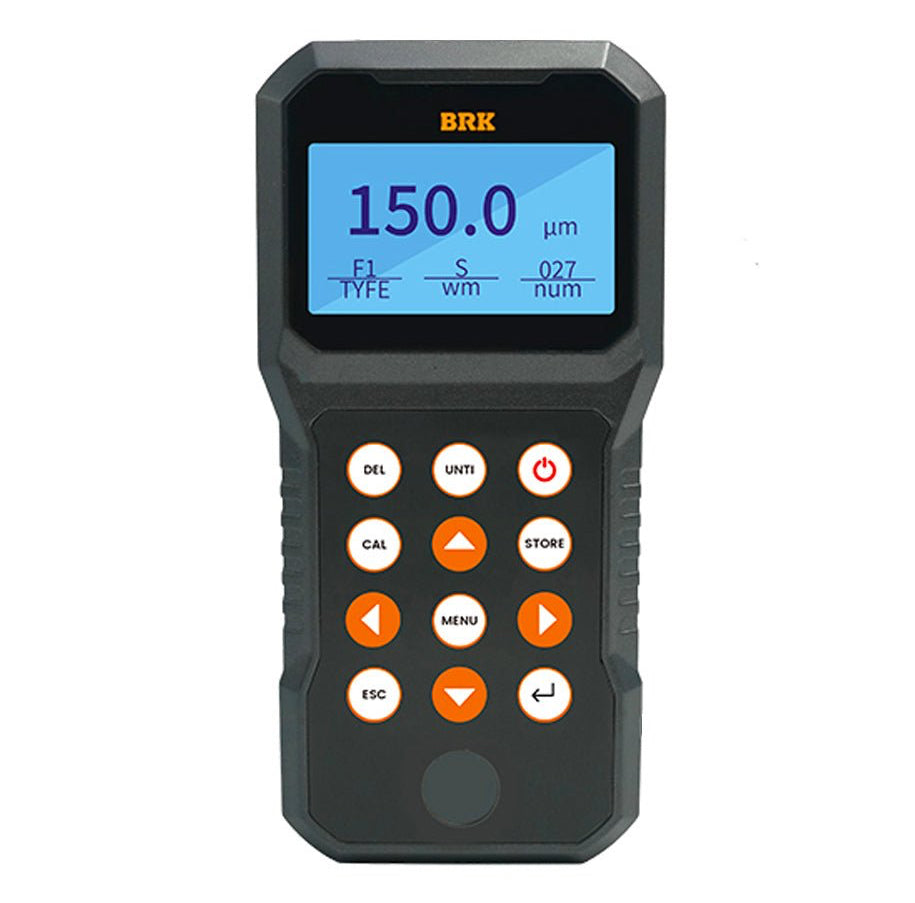

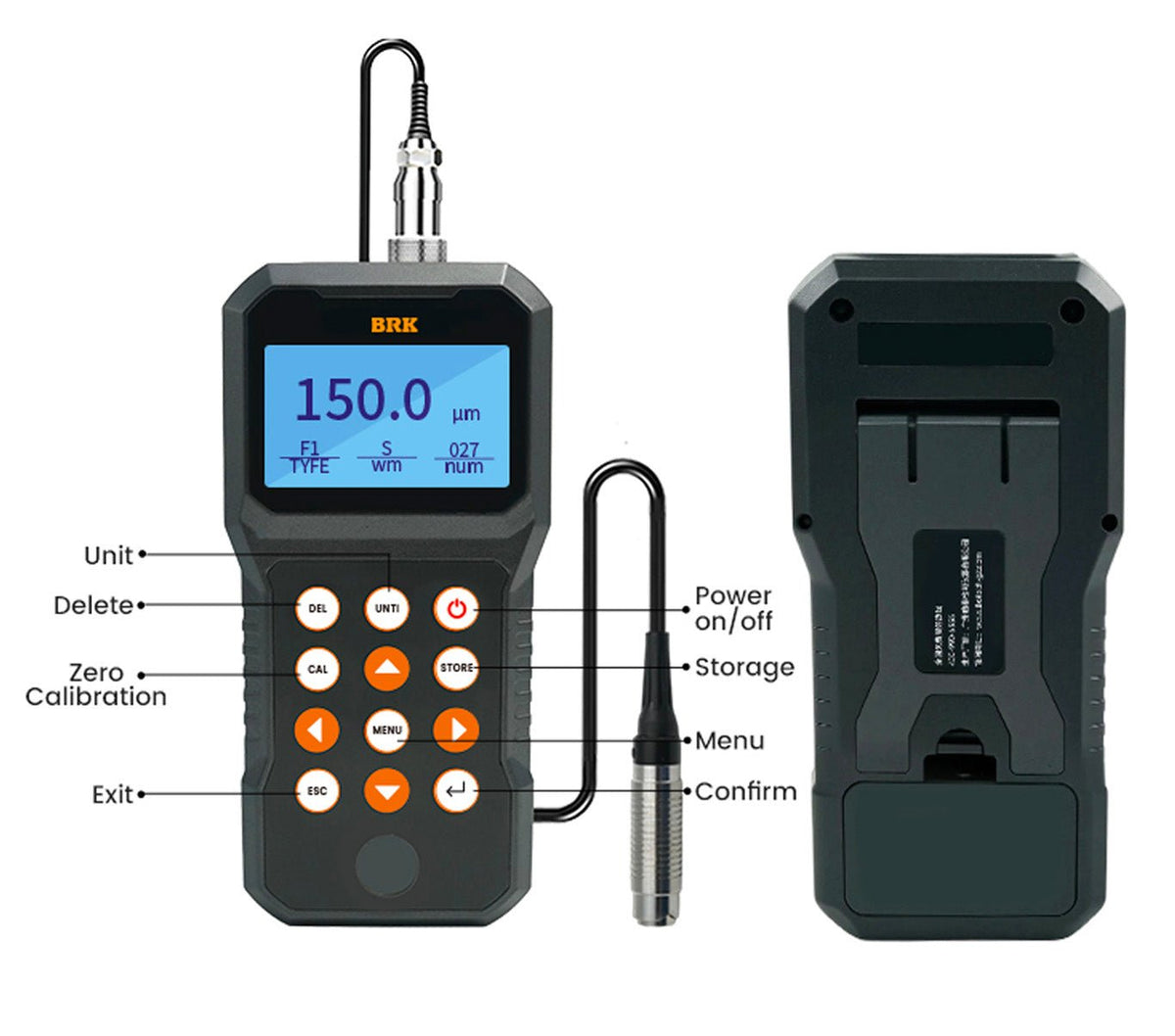

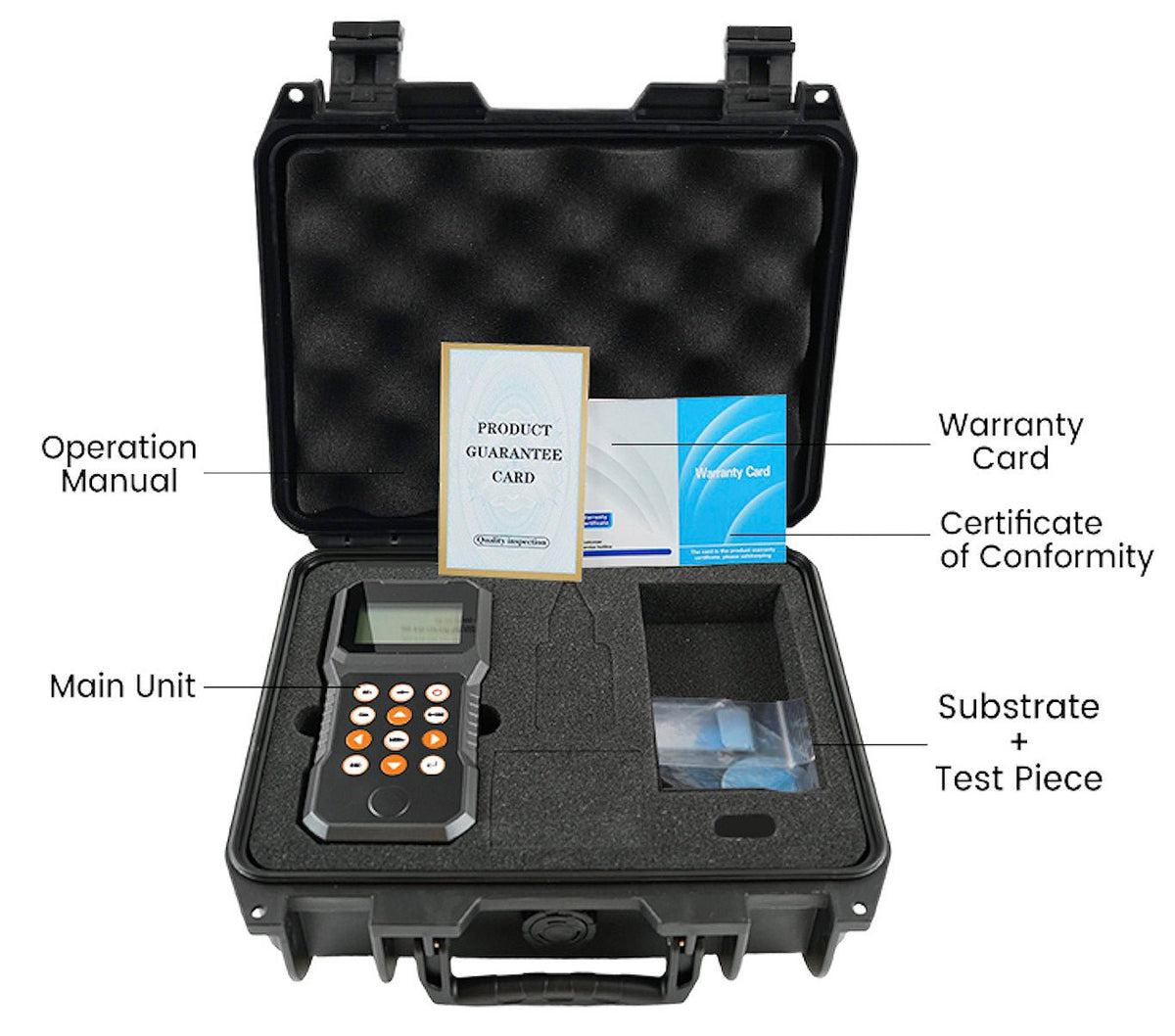

The unit features a clear, easy-to-read digital display that presents measurement values in real time, along with intuitive controls that reduce the learning curve for new users. Its ergonomic handheld design ensures comfortable operation during extended use, while the rugged housing protects the instrument from everyday wear in field and shop environments.
Calibration is straightforward, allowing users to maintain accuracy across different materials and coating ranges. The CTN-230 supports both single and continuous measurement modes, giving operators flexibility depending on the inspection task. Its compact size and rechargeable power system make it a highly portable solution for technicians who need reliable coating thickness measurements on-site or across multiple locations.
Overall, the BRK CTN-230 offers a well-balanced combination of precision, speed, and ease of use, making it an excellent choice for quality control professionals, inspectors, and maintenance teams who require consistent coating measurements without the complexity or cost of more advanced systems.
- Dual measurement technology for ferrous and non-ferrous substrates
- Non-destructive testing of paint, plating, anodizing, and coatings
- High accuracy with fast response time for efficient inspections

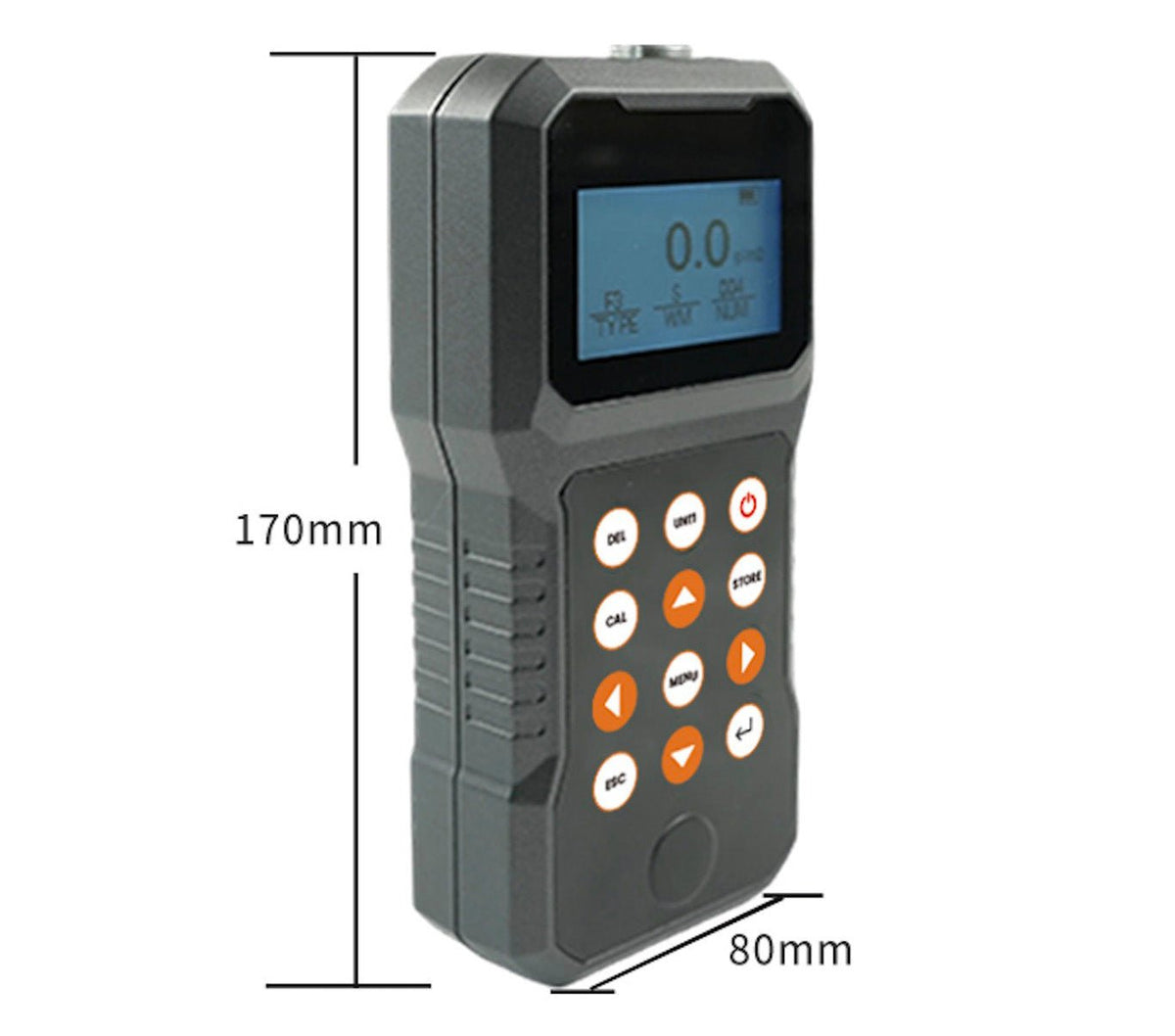

- Compact, handheld design for field and on-site use
- Easy-to-read digital display with user-friendly interface
- Durable construction suitable for industrial environments
Applications
- Paint and powder coating inspection
- Electroplating thickness measurement (zinc, chrome, nickel)
- Automotive and aerospace quality control
- Manufacturing and metal finishing processes
- Corrosion protection and surface treatment verification
Specifications
| Specification | Details |
|---|---|
| Measurement Principle | Magnetic Induction and Eddy Current |
| Probe Connection | Detachable cable connection (interchangeable probes) |
| Measuring Range | 0 to 13,000 µm (probe dependent) |
| Resolution | 0.1 µm |
| Operating Conditions | 32° to 104°F (0° to 40°C), 20% to 90% RH |
| Statistical Functions | Average, maximum, minimum, number of readings, standard deviation |
| Operation Modes | Direct mode and group mode |
| Measurement Modes | Single and continuous measurement |
| High/Low Alarm Setting | Yes |
| Gram Weight Measurement | Yes |
| Storage Capacity | 10 groups, 1,000 readings |
| Data Output | Yes |
| Shutdown Modes | Manual and automatic |
| Power Supply | AA batteries |
| Available Probes | 13 optional probe types |
Downloads
Probes
Compact magnetic probe designed for precise measurement of thin coatings on ferrous substrates such as steel and iron.
Comparison Chart
| Coating Thickness Gauges | CTN-210B | CTN-210C | CTN-230 | CTN-300 | BT-T7 | BT-T7A |
|---|---|---|---|---|---|---|
| Type / Principle | Magnetic induction & eddy current coating gauge | Magnetic induction & eddy current coating gauge |
Magnetic induction & eddy current coating gauge. |
Magnetic induction & eddy current coating gauge, multi-probe system | Through-coating ultrasonic thickness gauge | Through-coating ultrasonic thickness gauge |
| Measurement Range | Probe dependent, up to 0–10,000 μm | Probe dependent, micron to millimeter range | ypically up to ~1250 µm | Probe dependent, up to 13 mm (13,000 μm) depending on probe | 0.7–500 mm (standard mode, steel) | 0.7–350 mm (standard mode, steel) |
| Through-Coating Capability | Measures coating thickness only | Measures coating thickness only | Measures coating thickness only | Measures coating thickness only | Measures substrate thickness through coatings up to 5 mm | Measures substrate thickness through coatings up to 3 mm |
| Resolution | 0.1–1 μm depending on probe | 0.1–1 μm depending on probe | Up to 0.1 µm depending on probe | Up to 0.1 μm depending on probe | 0.01 mm | 0.01 mm |
| Accuracy | Typically ±(2%H + 1 μm) after calibration | Typically ±(1%H + 1 μm) after calibration | Approx. ±(1–3%) after calibration | Probe dependent, industrial QC grade | ±(0.6%H + 0.05) mm | ±(0.6%H + 0.1) mm |
| Probe Support | Multiple interchangeable probes | Multiple interchangeable probes | Multiple interchangeable probes | Multiple interchangeable probes | Standard, micro, coarse and high-temp probes | Standard, micro, coarse and high-temp probes |
| Data Handling | Group storage with PC export | Internal memory with USB/RS232 export | Group storage with PC export | Data storage with statistical functions | Standard thickness readout | Standard thickness readout |
| Power Supply | Rechargeable lithium battery | Rechargeable battery | AA Batteries | Rechargeable lithium-ion battery | Rechargeable Li-ion battery, 160+ hrs typical | AA batteries, 50+ hrs typical |
| Primary Use Case | Industrial coating thickness measurement | Advanced coating inspection with data functions | Industrial coating thickness measurement | High-end multi-probe coating inspection | Substrate thickness through coatings | Substrate thickness through coatings, mid-range |
Probe Comparison
