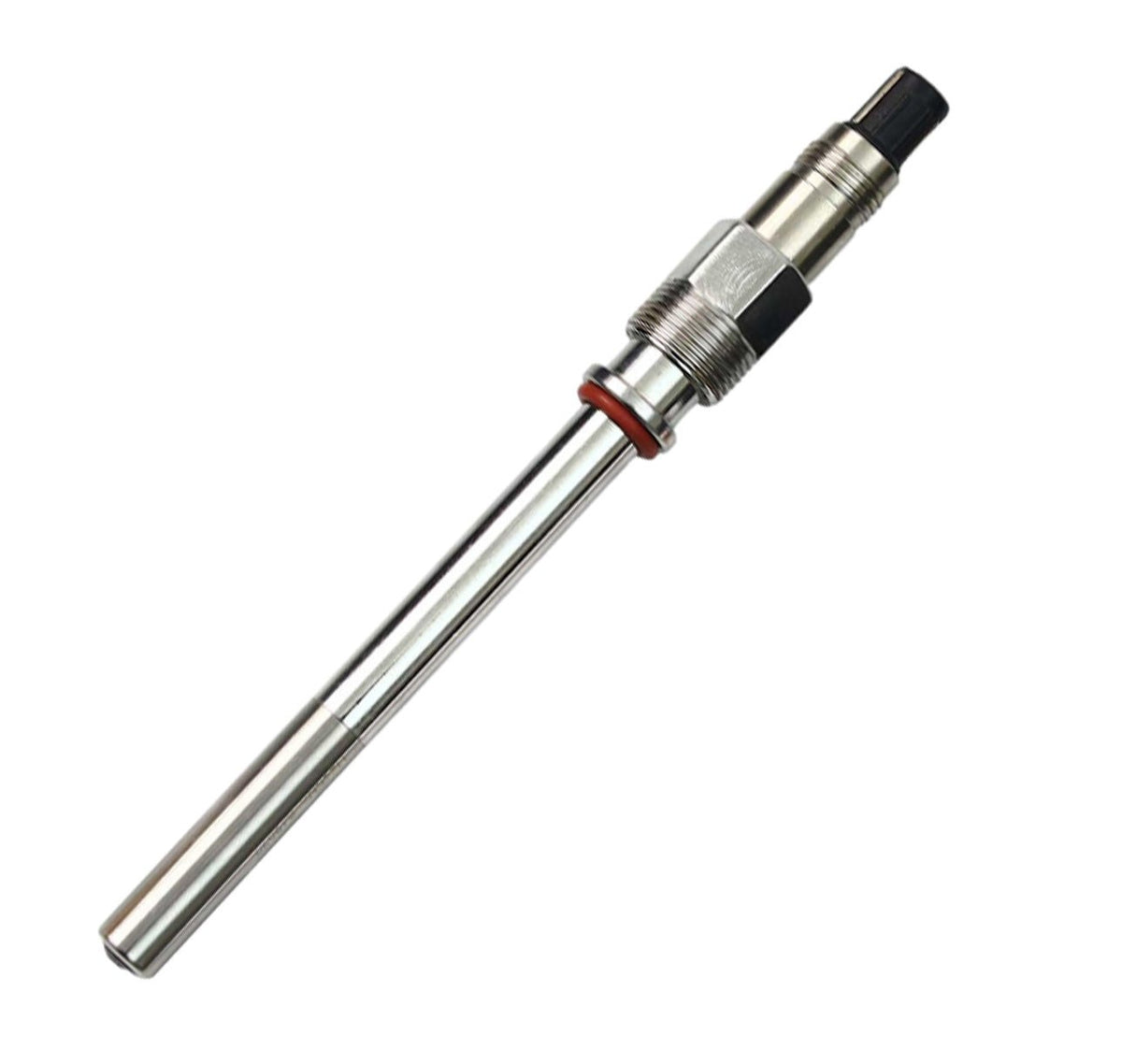

Fermentation Dissolved Oxygen Sensor (Polarographic type)
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
The HDO100 Fermentation Dissolved Oxygen Sensor is designed for oxygen measurement in small-volume vessels and installations with limited space.
Its 316L stainless steel body and VP connector support use in hygienic fermentation processes requiring CIP, in-situ steam sterilization and high-pressure autoclaving.
A durable membrane cap provides resistance to high temperatures and pressures, including steam sterilization at 120–130°C. Designed to withstand more than 40 fermentation batches, the HDO100 offers multiple immersion depths for different vessel configurations.
- Withstands steam sterilization at 120–130°C
- Membrane cap designed for high-temperature and high-pressure resistance
- 316L stainless steel body for durability and hygienic applications
- Suitable for CIP, in-situ steam sterilization and autoclaving
- Designed to withstand more than 40 fermentation batches
- VP connector and PG13.5 mounting thread
- Multiple immersion depths available
- IP68 water resistance
Specifications
| Measurement Range | 0–20 mg/L; 0–200% |
| Resolution | 0.01 mg/L |
| Accuracy | <±0.3 mg/L |
| Zero Error | <0.1 mg/L |
| Temperature Range | 0–130°C |
| Pressure Range | 0–5 bar |
| Temperature Probe | NTC22K, PT1000 and other options |
| Output | >60 nA |
| Response Time | <60 seconds |
| Calibration | Zero calibration/full-scale calibration |
| Mounting Thread | PG13.5 |
| Body Material | 316L stainless steel |
| Immersion Depth Options | 70, 120, 150, 225 or 325 mm |
| Connector | VP |
| Protection Level | IP68 water resistance |
Couldn't load pickup availability
Product Information
Product Information
The HDO100 Fermentation Dissolved Oxygen Sensor is designed for oxygen measurement in small-volume vessels and installations with limited space.
Its 316L stainless steel body and VP connector support use in hygienic fermentation processes requiring CIP, in-situ steam sterilization and high-pressure autoclaving.
A durable membrane cap provides resistance to high temperatures and pressures, including steam sterilization at 120–130°C. Designed to withstand more than 40 fermentation batches, the HDO100 offers multiple immersion depths for different vessel configurations.
- Withstands steam sterilization at 120–130°C
- Membrane cap designed for high-temperature and high-pressure resistance
- 316L stainless steel body for durability and hygienic applications
- Suitable for CIP, in-situ steam sterilization and autoclaving
- Designed to withstand more than 40 fermentation batches
- VP connector and PG13.5 mounting thread
- Multiple immersion depths available
- IP68 water resistance
Specifications
| Measurement Range | 0–20 mg/L; 0–200% |
| Resolution | 0.01 mg/L |
| Accuracy | <±0.3 mg/L |
| Zero Error | <0.1 mg/L |
| Temperature Range | 0–130°C |
| Pressure Range | 0–5 bar |
| Temperature Probe | NTC22K, PT1000 and other options |
| Output | >60 nA |
| Response Time | <60 seconds |
| Calibration | Zero calibration/full-scale calibration |
| Mounting Thread | PG13.5 |
| Body Material | 316L stainless steel |
| Immersion Depth Options | 70, 120, 150, 225 or 325 mm |
| Connector | VP |
| Protection Level | IP68 water resistance |
