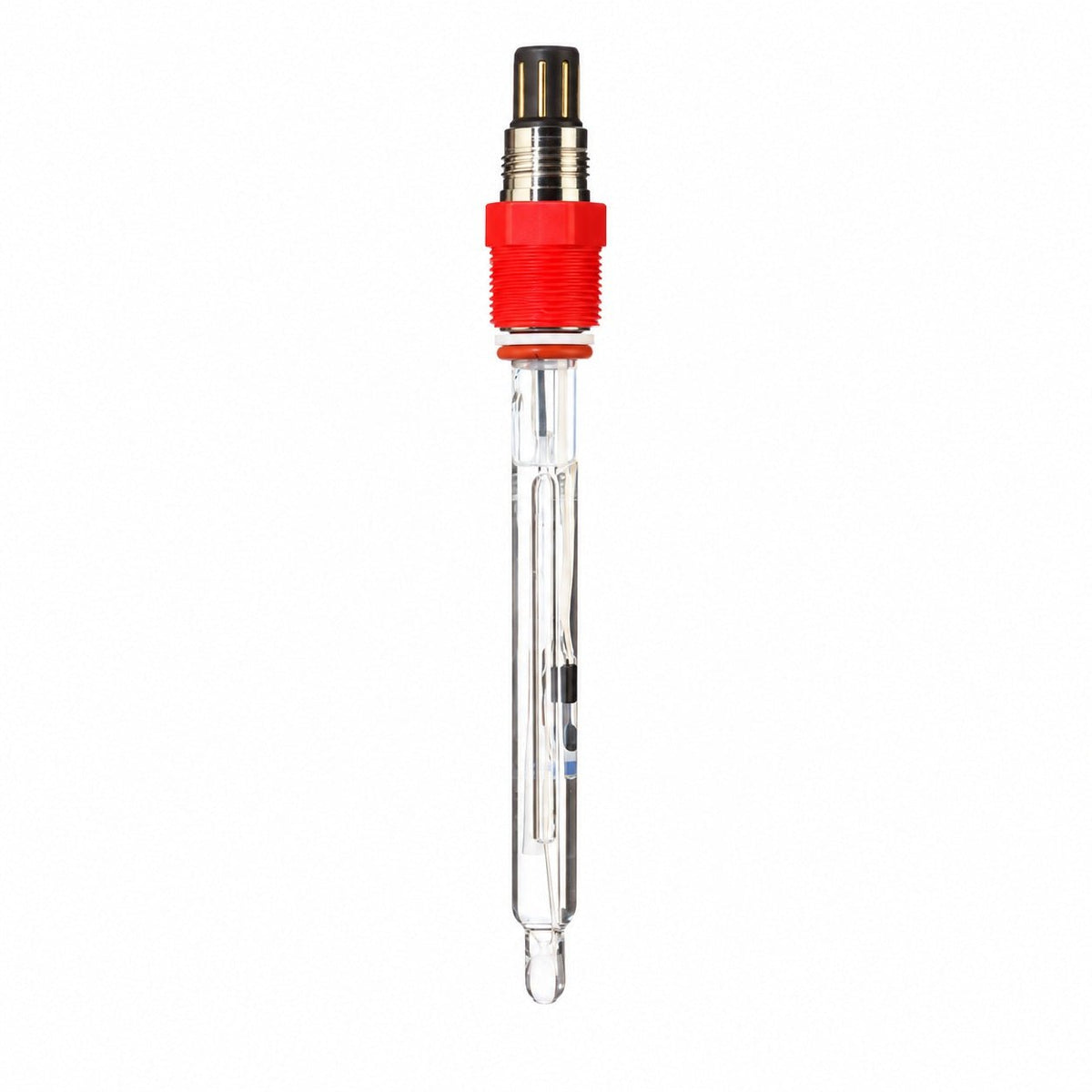

Online High-Temperature pH Sensor with VP Connector
Product Notes:
1. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
This high-temperature pH sensor supports online pH and temperature monitoring in processes that use clean-in-place and sterilize-in-place cycles.
Designed for fermentation, biotechnology, pharmaceutical manufacturing and food processing, the sensor measures 0–14 pH and operates at temperatures up to 130 °C. A double-junction electrode design supports industrial measurement through the temperature changes associated with cleaning and sterilization.
The VP connection works with compatible VP6 cabling, while the PG13.5 process thread supports installation with a suitable holder or sheath. Choose a T or Y configuration in 120, 150, 225 or 325 mm electrode lengths to match your process installation.
Features
- Online pH and temperature monitoring for high-temperature processes
- Suitable for applications using CIP and SIP procedures
- VP electrical connection and PG13.5 process thread
- 12 mm electrode diameter
- Four electrode lengths and two configuration choices
- Compatible with suitable 316L stainless steel sheaths
Specifications
| Measurement parameters | pH and temperature |
| pH range | 0–14 pH |
| Published pH accuracy | ±0.1 pH |
| Operating temperature | 0–130 °C |
| Pressure resistance | 0–0.6 MPa (0–6 bar) |
| Electrical connector | VP |
| Compatible cable | VP6 |
| Process thread | PG13.5 |
| Electrode diameter | 12 mm |
| Available electrode lengths | 120, 150, 225 and 325 mm |
| Temperature compensation | Pt1000 or 10 kΩ, depending on configuration |
| Reference system | Double liquid junction; electrolyte configuration depends on the selected version |
Downloads
Please contact us for the product datasheet and installation guidance.
Options
Select the T or Y configuration and required electrode length. Contact us for help matching the reference system and temperature compensation element to your analyzer and process.
| Length | T Configuration | Y Configuration |
|---|---|---|
| 120 mm | 870002-HPHT-120 | 870002-HPHY-120 |
| 150 mm | 870002-HPHT-150 | 870002-HPHY-150 |
| 225 mm | 870002-HPHT-225 | 870002-HPHY-225 |
| 325 mm | 870002-HPHT-1325 | 870002-HPHY-325 |
Accessories

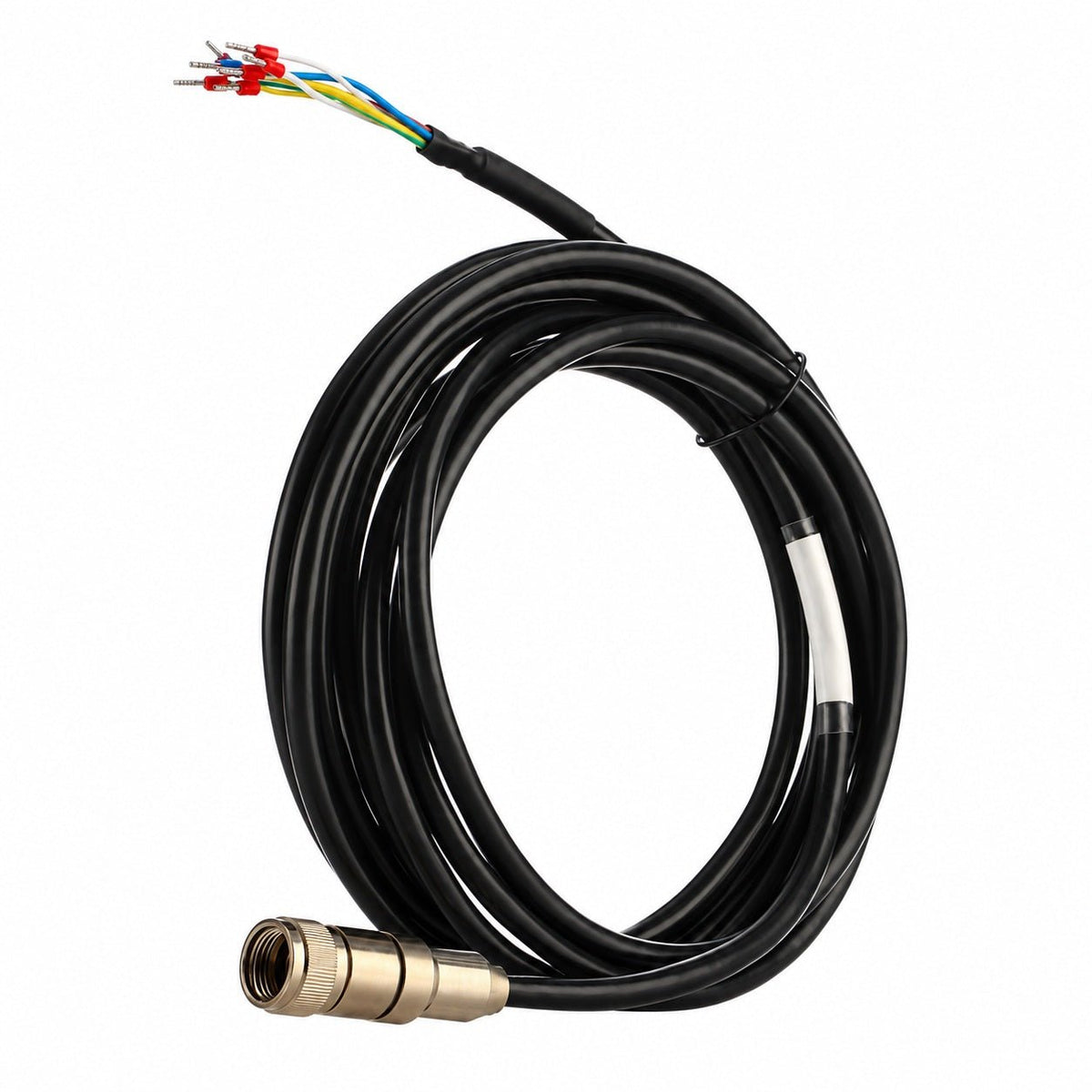

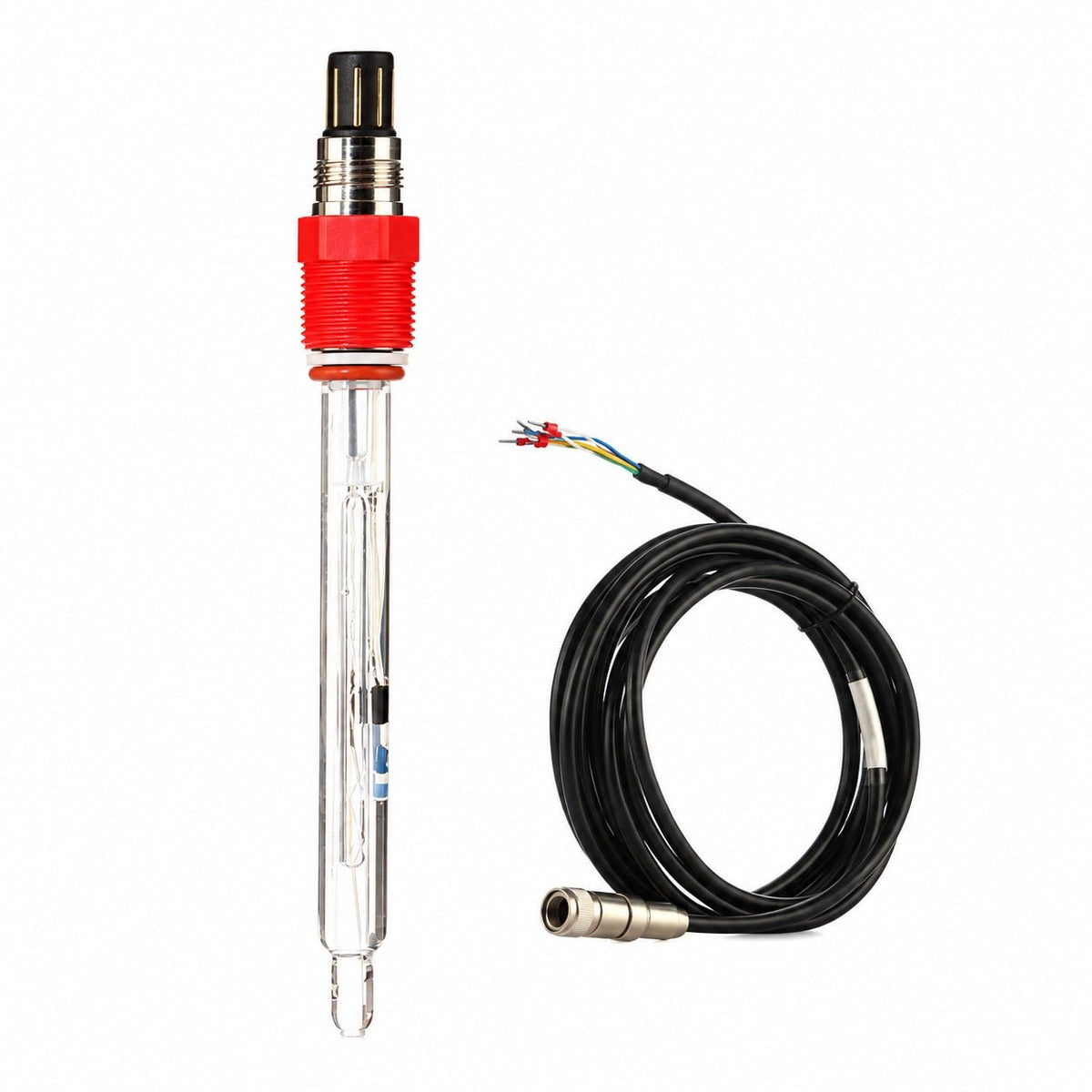

VP6-compatible cabling and suitable 316L stainless steel sheaths support analyzer and process connections. Photos show a representative electrode length and compatible cable. Confirm cable and mounting hardware requirements with your order.
FAQs
What is the maximum operating temperature?
The specified operating range is 0–130 °C.
Which connector does this listing use?
All eight variants use a VP electrical connection.
Which electrode lengths are available?
Choose 120, 150, 225 or 325 mm in either T or Y configuration.
Where can this sensor be used?
Typical applications include fermentation vessels, bioreactors, pharmaceutical production and food or beverage processing.
