Hot Wire Anemometer with Telescopic Probe
Download
Download

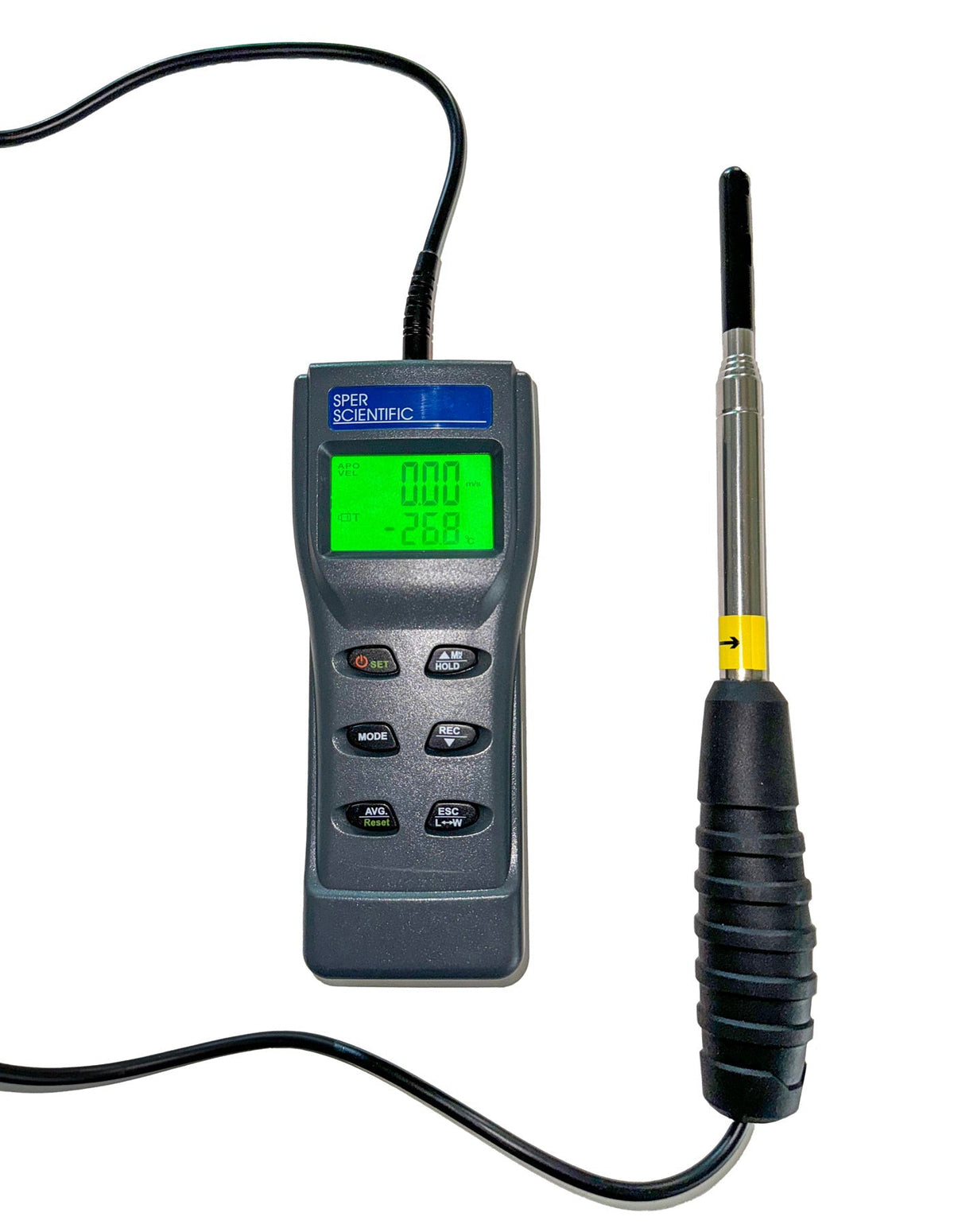

Handheld Hot Wire Anemometer is a compact, accurate and robust device for measuring air velocity, volume, flow and temperature.

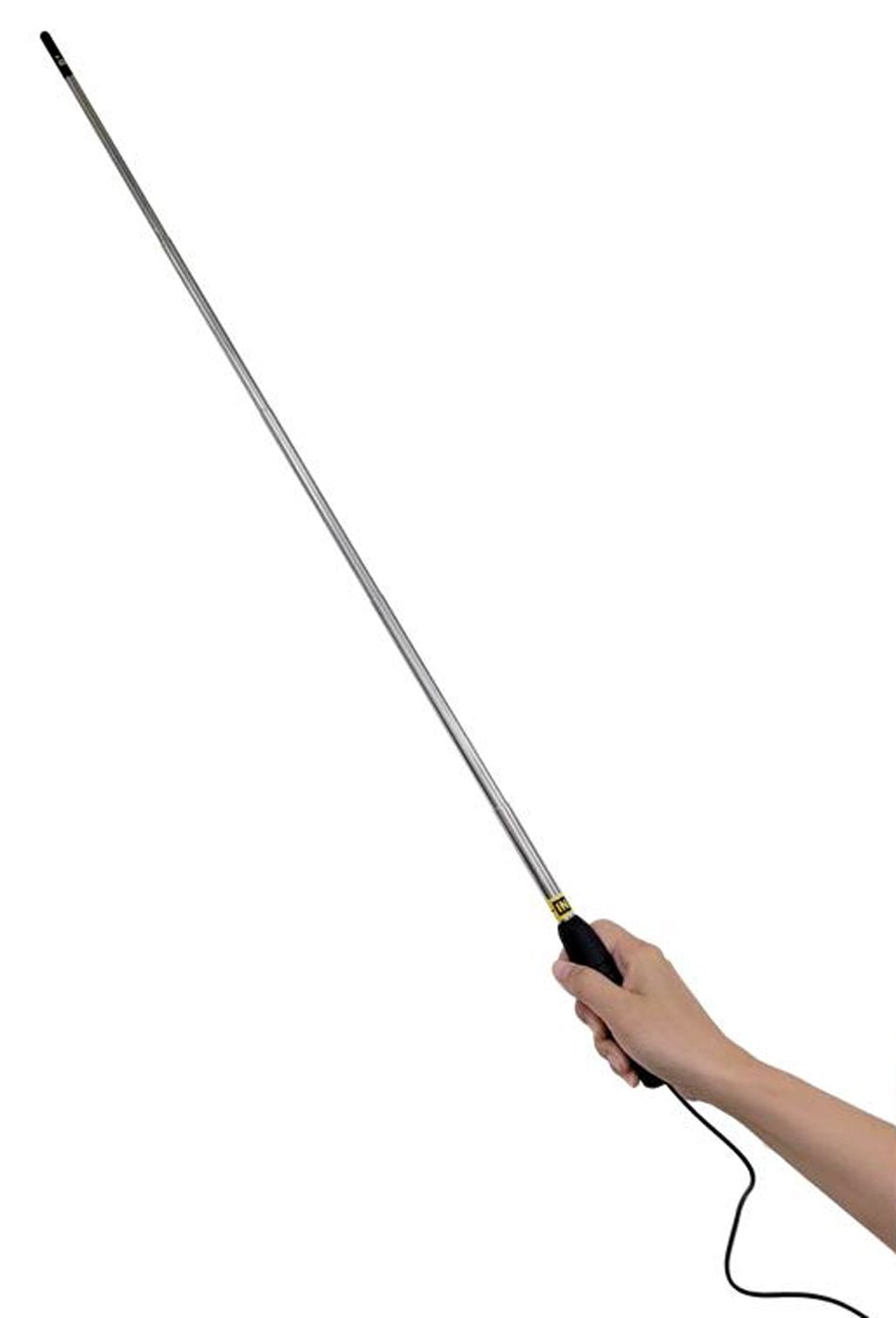

Telescopic hot wire probe is designed to minimize the turbulence effect for in-duct measurements, and is well suited for low-flow applications. The probe features a rubberized ergonomic grip and extends/retracts from 10 to 38 inches. Timed and multi-point average flow calculations and in-duct air balancing with fast response time are enabled thanks to the depth and direction indicators.
Other features include switchable metric/imperial measurements, min/max and hold functions, backlit LCD display, tripod mounting hole, auto power-off and a magnetized mount for hands free operation. Rubber o-rings are also included for marking duct depth on the wand.
-
Measures velocity, volume flow (cmh, cmm, cfm, I/s) and temperature
-
Duct temp. change has limited impact to reading accuracy
-
Timed & multi-point average flow calculations
-
In-duct air balancing with fast response time
-
Depth and direction indicators on probe
-
Magnet and tripod mount for hands-free operation
Includes meter, (4) AAA batteries, hard carrying case, magnetic or tripod mount, rubber o-rings and instructions.
Read about Hot Wire versus Vane Anemometers here.
Specifications
| Model | 860057 |
| Wind Speed Range | 0.15~20 M/S (30.0~3937 ft/m) |
| Wind Speed Accuracy | ±(5% of reading+0.1) M/S ±(5% of reading+20) ft/m |
| Wind Speed Resolution Range | Below 10 M/S:0.01, above 10 M/S:0.1 (Below 100 ft/m:0.1, above 100 ft/m:1) |
| Air Temperature Range | -10.0~50℃ (14.0~122.0°F) |
| Air Temperature Accuracy | ±1℃(1.8°F): 0.0~50.0℃ ±1.5℃(2.7°F): Below 0.0℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Wind Speed Response Time | 0.5 seconds (typical) |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Air Volume Display | 0~99999 |
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
| Air Volume unit | cmm, cmh, l/s, cfm |
| LCD Size | 45(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 178(L) * 70(W) * 33(H) mm |
| Probe | 8mm diameter |
| Telescope Tube | 96cm (38 inch) extended 26.5cm (10 inch) storage |
| Weight | ~331g |
| Battery | AAA*4 PCS |
| Standard Package | Meter with built-in hotwire probe, Batteries, Magnet, Manual, O-rings, Hard Carry Case |
Downloads
Couldn't load pickup availability
Product Information
Product Information
Handheld Hot Wire Anemometer is a compact, accurate and robust device for measuring air velocity, volume, flow and temperature.
Telescopic hot wire probe is designed to minimize the turbulence effect for in-duct measurements, and is well suited for low-flow applications. The probe features a rubberized ergonomic grip and extends/retracts from 10 to 38 inches. Timed and multi-point average flow calculations and in-duct air balancing with fast response time are enabled thanks to the depth and direction indicators.
Other features include switchable metric/imperial measurements, min/max and hold functions, backlit LCD display, tripod mounting hole, auto power-off and a magnetized mount for hands free operation. Rubber o-rings are also included for marking duct depth on the wand.
-
Measures velocity, volume flow (cmh, cmm, cfm, I/s) and temperature
-
Duct temp. change has limited impact to reading accuracy
-
Timed & multi-point average flow calculations
-
In-duct air balancing with fast response time
-
Depth and direction indicators on probe
-
Magnet and tripod mount for hands-free operation
Includes meter, (4) AAA batteries, hard carrying case, magnetic or tripod mount, rubber o-rings and instructions.
Read about Hot Wire versus Vane Anemometers here.
Specifications
| Model | 860057 |
| Wind Speed Range | 0.15~20 M/S (30.0~3937 ft/m) |
| Wind Speed Accuracy | ±(5% of reading+0.1) M/S ±(5% of reading+20) ft/m |
| Wind Speed Resolution Range | Below 10 M/S:0.01, above 10 M/S:0.1 (Below 100 ft/m:0.1, above 100 ft/m:1) |
| Air Temperature Range | -10.0~50℃ (14.0~122.0°F) |
| Air Temperature Accuracy | ±1℃(1.8°F): 0.0~50.0℃ ±1.5℃(2.7°F): Below 0.0℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Wind Speed Response Time | 0.5 seconds (typical) |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Air Volume Display | 0~99999 |
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
| Air Volume unit | cmm, cmh, l/s, cfm |
| LCD Size | 45(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 178(L) * 70(W) * 33(H) mm |
| Probe | 8mm diameter |
| Telescope Tube | 96cm (38 inch) extended 26.5cm (10 inch) storage |
| Weight | ~331g |
| Battery | AAA*4 PCS |
| Standard Package | Meter with built-in hotwire probe, Batteries, Magnet, Manual, O-rings, Hard Carry Case |
