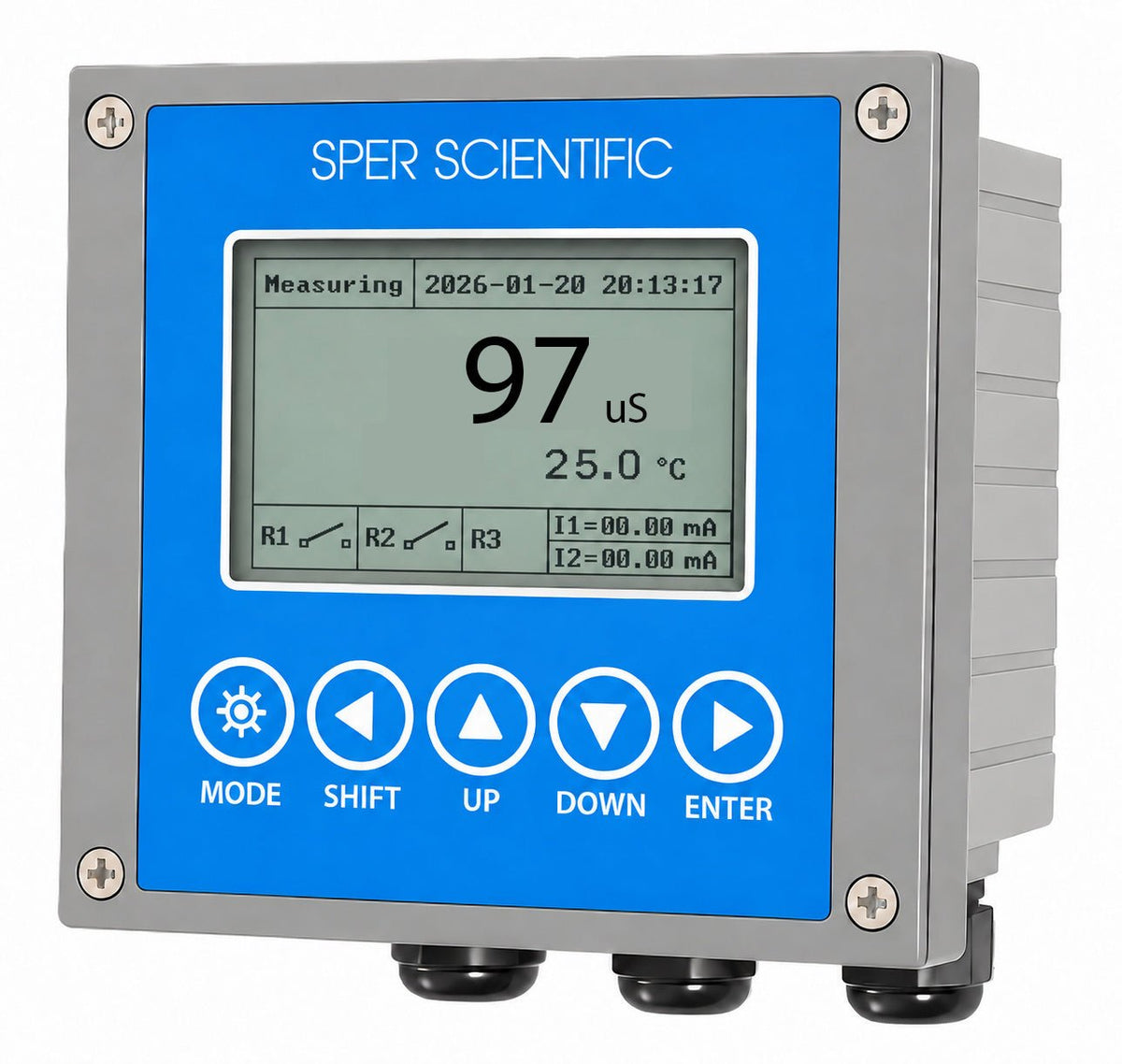

Industrial Conductivity / TDS / Salinity / Resistivity Bioprocess Monitor
Regular price
$695.00 USD
Sale price
Regular price
Shipping calculated at checkout.
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
Real-time measurement of conductivity, total dissolved solids (TDS), salinity and resistivity for wastewater treatment, environmental monitoring, pure water systems, aquaculture and food production processes.
Built for harsh operating conditions while maintaining measurement accuracy across multiple parameters. This monitor is ideal for process control, quality assurance, and regulatory compliance in facilities requiring continuous water and fluid analysis.
- Large dot-matrix display with intuitive operation interface
- Data storage, viewing, and export functionality with customizable storage cycles
- RS485 network interface for remote monitoring
- Lightning protection design for equipment reliability
Specifications
Downloads
| Functions | EC | Resistivity | Salinity | TDS |
| Measuring range | 0.00uS-2000mS | 0.00-20.00 MΩ-CM | 0.00-78.00g/Kg | 0-133000ppm |
| Resolution | 0.01/0.1/1 | 0.01 | 0.01 | 1 |
| Accuracy | ±1%F.S. | ±1%F.S. | ±1%F.S. | ±1%F.S. |
| Temp. compensation | Pt 1000/NTC30K | |||
| Temp. range | -10.0 to +130.0℃ | |||
| Temp. compensation range | -10.0 to +130.0℃ | |||
| Temp. resolution | 0.1℃ | |||
| Temp. accuracy | ±0.2℃ | |||
| Cell constant | 0.001 to 20.000 | |||
| Ambient temperature range | 0 to +70℃ | |||
| Storage temp. | -20 to +70℃ | |||
| Display | Back light, dot matrix | |||
| EC current output1 | Isolated, 4 to 20mA output , max. load 500Ω | |||
| Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500Ω | |||
| Current output accuracy | ±0.05 mA | |||
| RS485 | Mod bus RTU protocol | |||
| Baud rate | 9600/19200/38400 | |||
| Maximum relay contacts capacity | 5A/250VAC,5A/30VDC | |||
| Cleaning setting | ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours | |||
| One multi function relay | clean/period alarm/error alarm | |||
| Relay delay | 0-120 seconds | |||
| Data logging capacity | 500,000 | |||
| Language selection | English/traditional Chinese/simplified Chinese | |||
| Waterproof grade | IP65 | |||
| Power supply | From 90 to 260 VAC, power consumption < 5 watts | |||

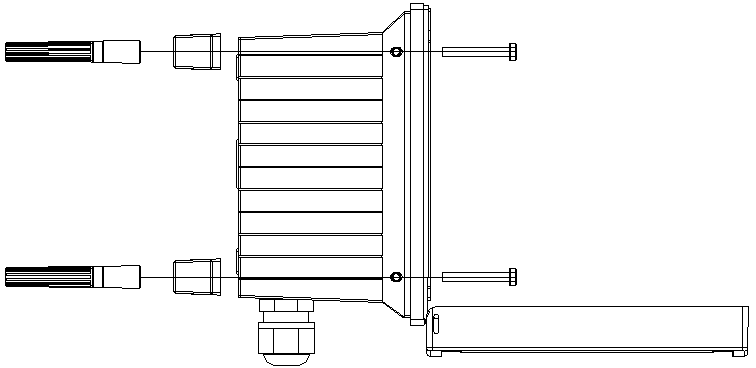

| Installation | panel/wall/pipe installation | |||
| Weight | 0.85Kg | |||
Downloads
Couldn't load pickup availability
Product Information
Product Information
Real-time measurement of conductivity, total dissolved solids (TDS), salinity and resistivity for wastewater treatment, environmental monitoring, pure water systems, aquaculture and food production processes.
Built for harsh operating conditions while maintaining measurement accuracy across multiple parameters. This monitor is ideal for process control, quality assurance, and regulatory compliance in facilities requiring continuous water and fluid analysis.
- Large dot-matrix display with intuitive operation interface
- Data storage, viewing, and export functionality with customizable storage cycles
- RS485 network interface for remote monitoring
- Lightning protection design for equipment reliability
Specifications
Downloads
| Functions | EC | Resistivity | Salinity | TDS |
| Measuring range | 0.00uS-2000mS | 0.00-20.00 MΩ-CM | 0.00-78.00g/Kg | 0-133000ppm |
| Resolution | 0.01/0.1/1 | 0.01 | 0.01 | 1 |
| Accuracy | ±1%F.S. | ±1%F.S. | ±1%F.S. | ±1%F.S. |
| Temp. compensation | Pt 1000/NTC30K | |||
| Temp. range | -10.0 to +130.0℃ | |||
| Temp. compensation range | -10.0 to +130.0℃ | |||
| Temp. resolution | 0.1℃ | |||
| Temp. accuracy | ±0.2℃ | |||
| Cell constant | 0.001 to 20.000 | |||
| Ambient temperature range | 0 to +70℃ | |||
| Storage temp. | -20 to +70℃ | |||
| Display | Back light, dot matrix | |||
| EC current output1 | Isolated, 4 to 20mA output , max. load 500Ω | |||
| Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500Ω | |||
| Current output accuracy | ±0.05 mA | |||
| RS485 | Mod bus RTU protocol | |||
| Baud rate | 9600/19200/38400 | |||
| Maximum relay contacts capacity | 5A/250VAC,5A/30VDC | |||
| Cleaning setting | ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours | |||
| One multi function relay | clean/period alarm/error alarm | |||
| Relay delay | 0-120 seconds | |||
| Data logging capacity | 500,000 | |||
| Language selection | English/traditional Chinese/simplified Chinese | |||
| Waterproof grade | IP65 | |||
| Power supply | From 90 to 260 VAC, power consumption < 5 watts | |||
| Installation | panel/wall/pipe installation | |||
| Weight | 0.85Kg | |||
Downloads
