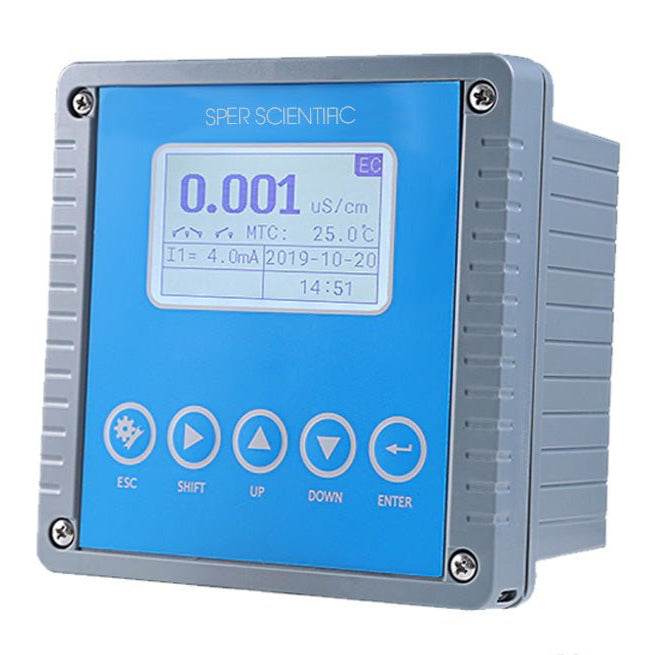

Online Industrial Conductivity, TDS, Salinity, Resistivity Meter
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
Ordering Notes:
1. ALL SPER ONLINE WATER QUALITY METERS AND SENSORS ARE SOLD SEPARATELY - Please be sure to add the appropriate sensor (listed above) when purchasing your meter - ONE METER AND SENSOR are required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Our Industrial Conductivity, TDS, Salinity and Resistance Meter is essential for inline monitoring of water conductivity in applications like drinking water treatment, industrial water and boiler water.
Conductivity measurements provide valuable insight into the amount of dissolved material in water. We offer a wide range of high-quality, affordable conductivity sensors, suitable for everything from deionized water to highly saturated brines.
Why is conductivity measurement important in water treatment? The conductivity of water is crucial because it gives an indication of the amount of dissolved material within that water. Paired with Sper Scientific conductivity controllers, this meter delivers reliable, cost-effective process control across industries.
- Multi-functional: Measures conductivity, TDS, resistivity, salinity, and temperature
- Reliable conductivity monitoring for consistent results
- Easy system integration for seamless conductivity measurement
- Ideal for all water quality environments
- Compatible with contact conductivity sensors
Specifications
|
Model |
Inline Conductivity Meter |
|
|
Measurement |
Conductivity, TDS, Resistivity, Salinity, Temperature | |
|
Measurement Range |
0.00uS/cm~2000000.00 uS/cm(0.00uS/cm~2000.00 mS/cm) 0.00g/L~80.00 g/L (ppt) 0.00mg/L~130000.00 mg/L (ppm) 0.00MΩ~20.00MΩ -40.0℃~200.0℃ (refer to matching electrode) |
|
| Accuracy | 1%, ±0.2℃ | |
|
Housing Material |
ABS Flame retardant : V0 |
|
|
Power |
90 – 260V AC 50/60Hz |
|
|
Consumption |
4W |
|
|
Output |
Two ways 4-20mA output |
|
| Communication | RS485 Modbus | |
|
Relay |
Two relays: 5A/250V AC, 5A/30V DC |
|
|
Temperature.Comp |
PT1000 / NTC10K |
|
| Dimension | 144×144×104mm | |
| Hole size | 138*138mm | |
|
Protection |
IP65 | |
|
Data Logger |
1,000 times | |
|
Language |
English / 简体中文 |
|
|
Installation |
Panel / Wall / Pipe mounted |
|
|
Probe |
870003-ICE-01 |
870003-ICE-02 |
870003-ICE-03 |
870003-ICE-04 |
870003-ICE-05 |
|
CC |
0.01 |
0.1 |
1.0 |
10 |
30 |
|
EC Range |
0-2μS/cm |
0-200μS/cm |
0-2000μS/cm |
0-20000μS/cm |
30-600mS/cm |
|
Temp Range |
0.0-100.0°C |
0.0-100.0°C |
0.0-100.0°C |
0.0-100.0°C |
0.0-100.0°C |
|
Accuracy |
2%, ±0.5°C |
||||
|
Withstand pressure |
0.4MPa |
||||
|
Waterproof Level |
IP68/NEMA6P |
||||
