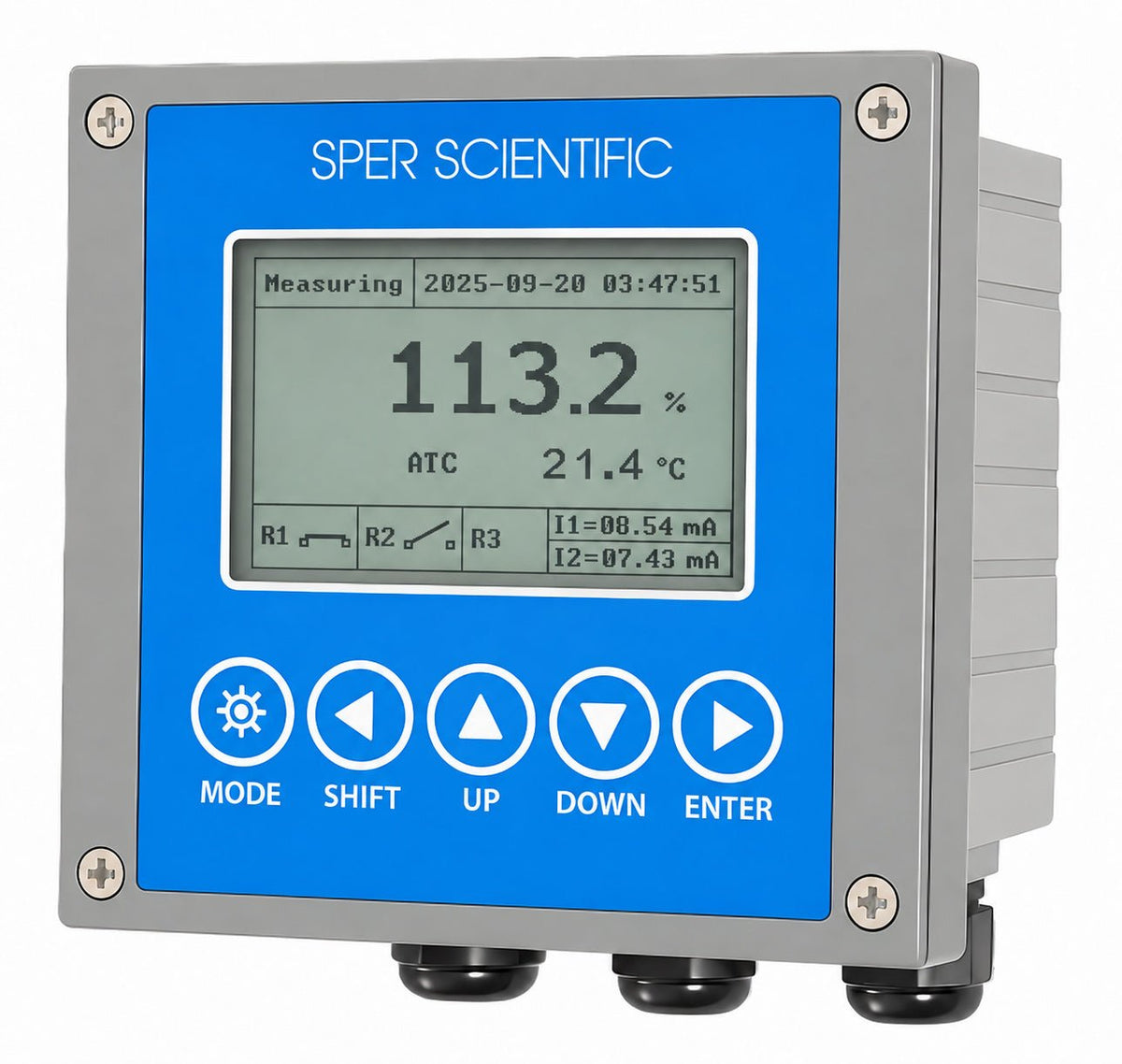

Industrial Dissolved Oxygen Bioprocess Monitor
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
Industrial Dissolved Oxygen Monitor is ideal for effluent treatment, pure water, boiler water, surface water, electroplating, chemical processing, pharmaceuticals, food production, environmental monitoring, breweries and fermentation applications.
Features a large dot-matrix display with intuitive operation interface designed for ease of use. Built-in data storage, viewing, and export functions with configurable storage cycles. RS485 network connectivity enables remote monitoring across multiple locations. Advanced lightning protection safeguards equipment reliability in demanding environments. Firmware supports online upgrades for simplified maintenance and feature updates. Flexible mounting options accommodate panel, wall or pipe installation to fit your facility layout.
- Large dot-matrix display with intuitive interface for straightforward operation and clear visibility.
- Built-in data storage, viewing, and export capabilities with user-configurable storage cycles.
- RS485 interface enables network monitoring and remote oversight across multiple locations.
- Advanced lightning protection design ensures reliable equipment performance in industrial environments.
- Firmware supports online upgrades for convenient maintenance and system enhancements.
Specifications
| Measuring Range | 0.0 to 200.0% | 0.00 to 20.00 ppm; 0.0 to 200.0 ppb |
| Resolution | 0.1 | 0.01/0.1 |
| Accuracy | ±0.2 | ±0.02 |
| Temperature Compensation | Pt 1000/NTC22K | |
| Temperature Range | -10.0 to +130.0°C | |
| Temperature Compensation Range | -10.0 to +130.0°C | |
| Temperature Resolution | 0.1°C | |
| Temperature Accuracy | ±0.2°C | |
| Electrode Current Range | -2.0 to +400 nA | |
| Electrode Current Accuracy | ±0.005 nA | |
| Polarization | -0.675 V | |
| Pressure Range | 500 to 9999 mbar | |
| Salinity Range | 0.00 to 50.00 ppt | |
| Ambient Temperature Range | 0 to +70°C | |
| Storage Temperature | -20 to +70°C | |
| Display | Backlit dot matrix | |
| DO Current Output 1 | Isolated 4–20 mA output; maximum load 500 Ω | |
| Temperature Current Output 2 | Isolated 4–20 mA output; maximum load 500 Ω | |
| Current Output Accuracy | ±0.05 mA | |
| RS485 | Modbus RTU protocol | |
| Baud Rate | 9600/19200/38400 | |
| Maximum Relay Contact Capacity | 5 A at 250 VAC; 5 A at 30 VDC | |
| Cleaning Setting | ON: 1–1000 seconds; OFF: 0.1–1000.0 hours | |
| One Multifunction Relay | Cleaning/period alarm/error alarm | |
| Relay Delay | 0–120 seconds | |
| Data Logging Capacity | 500,000 | |
| Language Selection | English, traditional Chinese and simplified Chinese | |
| Waterproof Grade | IP65 | |
| Power Supply | 90–260 VAC; power consumption <5 W | |
| Installation | Panel, wall or pipe installation | |
| Weight | 0.85 kg | |
