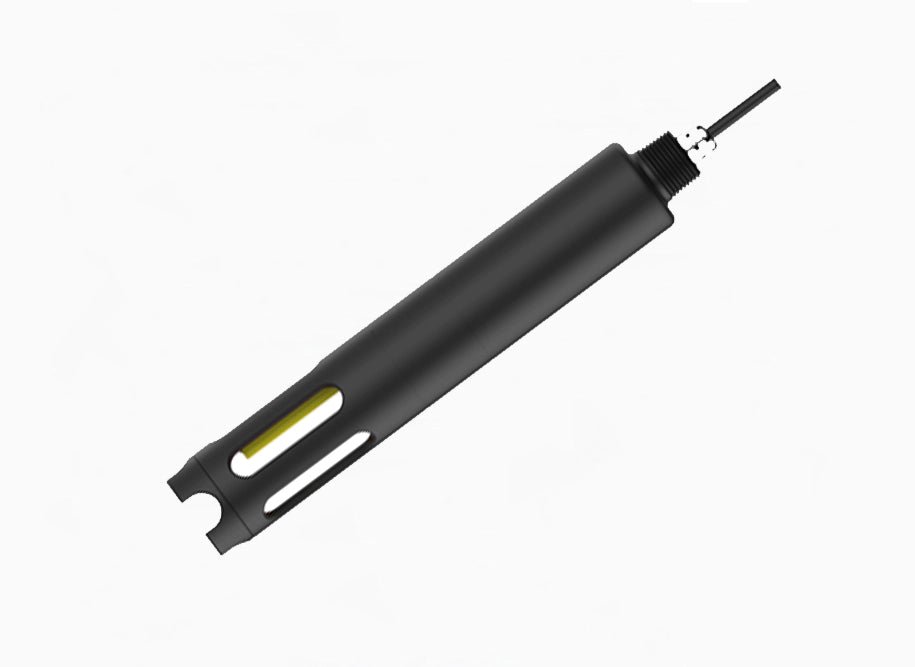

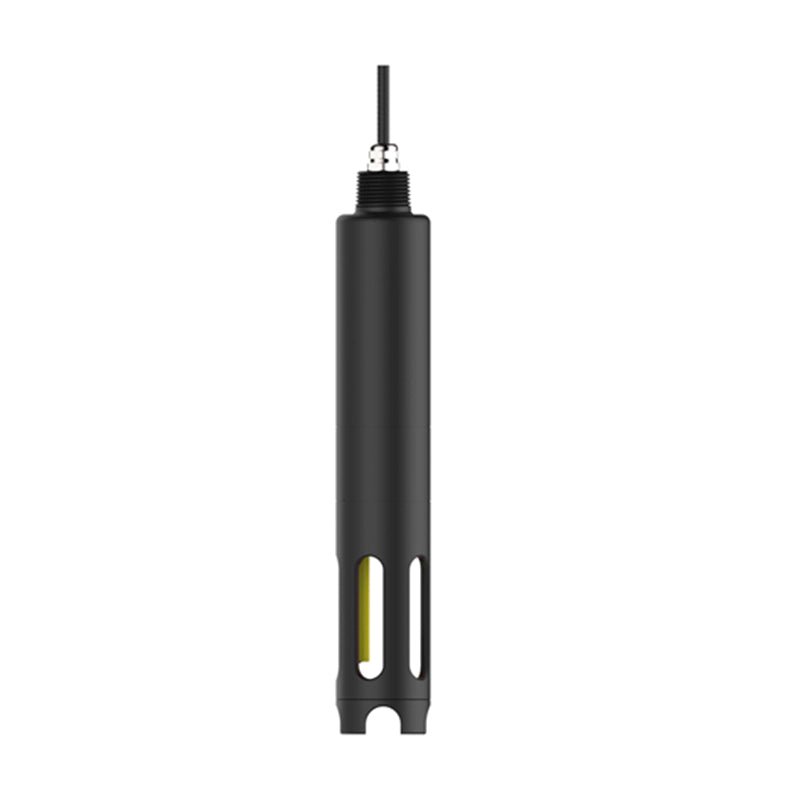

Online Digital Nitrate Nitrogen Sensor
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
This spectrometer-based Sensor measures Nitrate Nitrogen (NO3-N) directly via its absorption of 210 nm UV light.
This sensor is only for use with:
Sper Scientific 870001 Multi-Parameter Water Quality Analyzer
As water flows through the sensor slit, a portion of the light is absorbed by the sample, while the remaining light passes through, reaching the opposite side of the sensor. This absorption is used to calculate nitrate concentration.
Main Features
- Direct Measurement: Measures nitrate nitrogen directly from the sample without the need for pre-processing or sampling.
- Eco-Friendly Operation: Requires no chemical reagents, eliminating secondary pollution.
- Fast, Continuous Monitoring: Provides a rapid response time with real-time, continuous online measurement.
- Low Maintenance: Features an automatic cleaning function to reduce maintenance demands.
- Built-In Protection: Includes positive and negative reverse connection protection for reliable power supply use.
- RS485 Terminal Safety: Power supply protection for RS485 A/B terminals for secure connectivity.
Applications
- Drinking and Surface Water: Ideal for nitrate monitoring in drinking water sources and natural water bodies.
- Industrial Water and Wastewater: Suitable for industrial process water and wastewater treatment applications.
- Nitrate Monitoring: Designed for continuous monitoring of nitrate concentration in water, especially beneficial for managing sewage aeration tanks and denitrification processes.
Ordering Notes:
1. All Sper Inline Water Quality Meters and Sensors are sold separately - one of each is required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
| Measuring Range | Nitrate Nitrogen NO3-N: 0.1~40.0mg/L |
| Accuracy | ±5% |
| Repeatability | ± 2% |
| Resolution | 0.01 mg/L |
| Pressure Range | ≤0.4Mpa |
| Sensor Material | Body: SUS316L (freshwater), Titanium Alloy (Ocean marine); Cable: PUR |
| Calibration | Standard calibration |
| Power Supply | 12VDC |
| Communication | MODBUS RS485 |
| Working Temperature | 0-45℃ (Non-freezing) |
| Dimensions | 2.7x15 inches (69mmx380mm) |
| Protection | IP68 |
| Cable Length | Standard 10M, can be extended to 100m |
