Online Residual Chlorine Analyzer
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
Ordering Notes:
1. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.

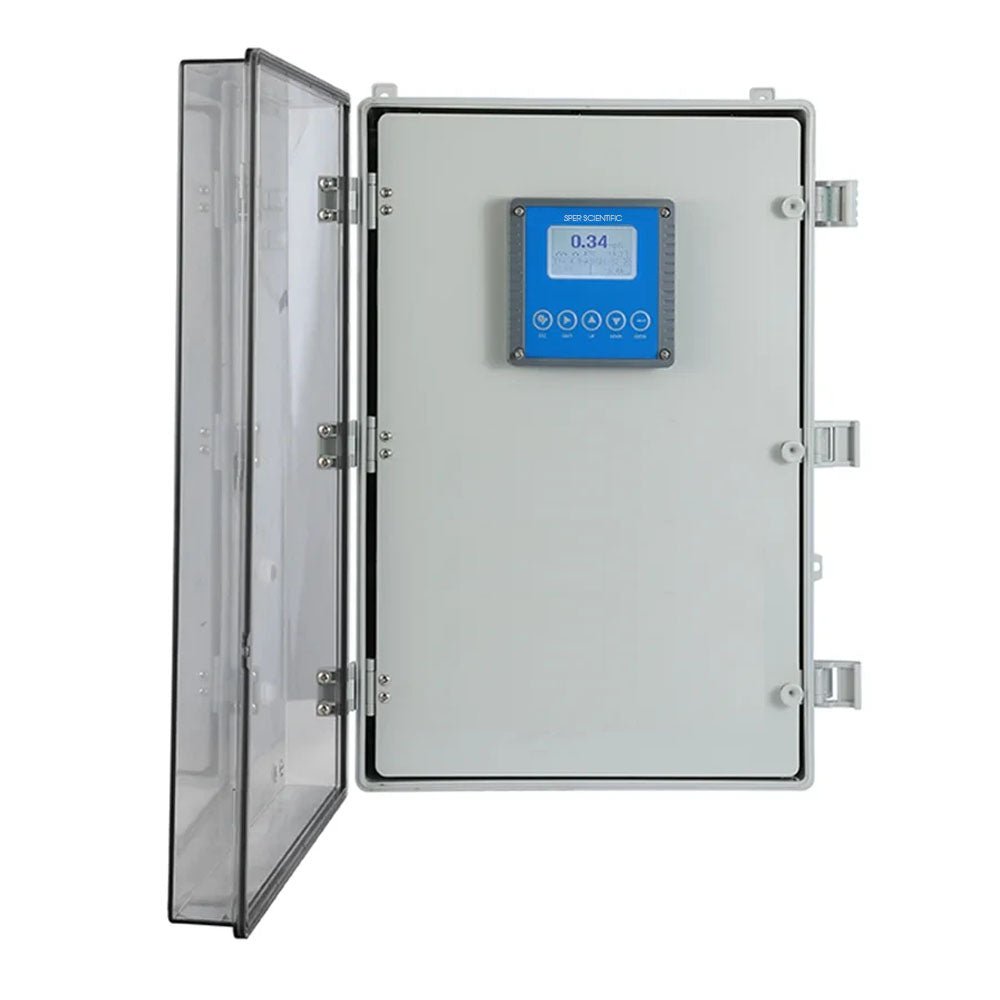

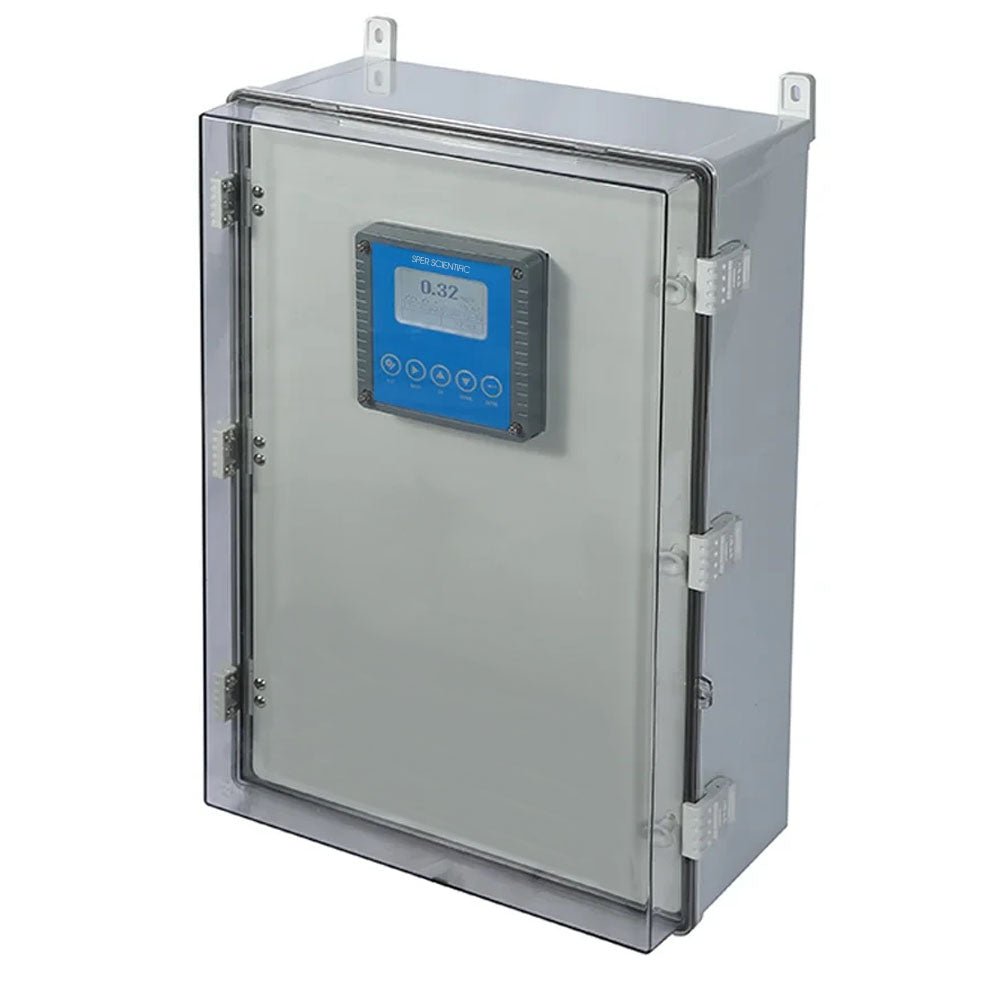

Online Residual Chlorine Meter

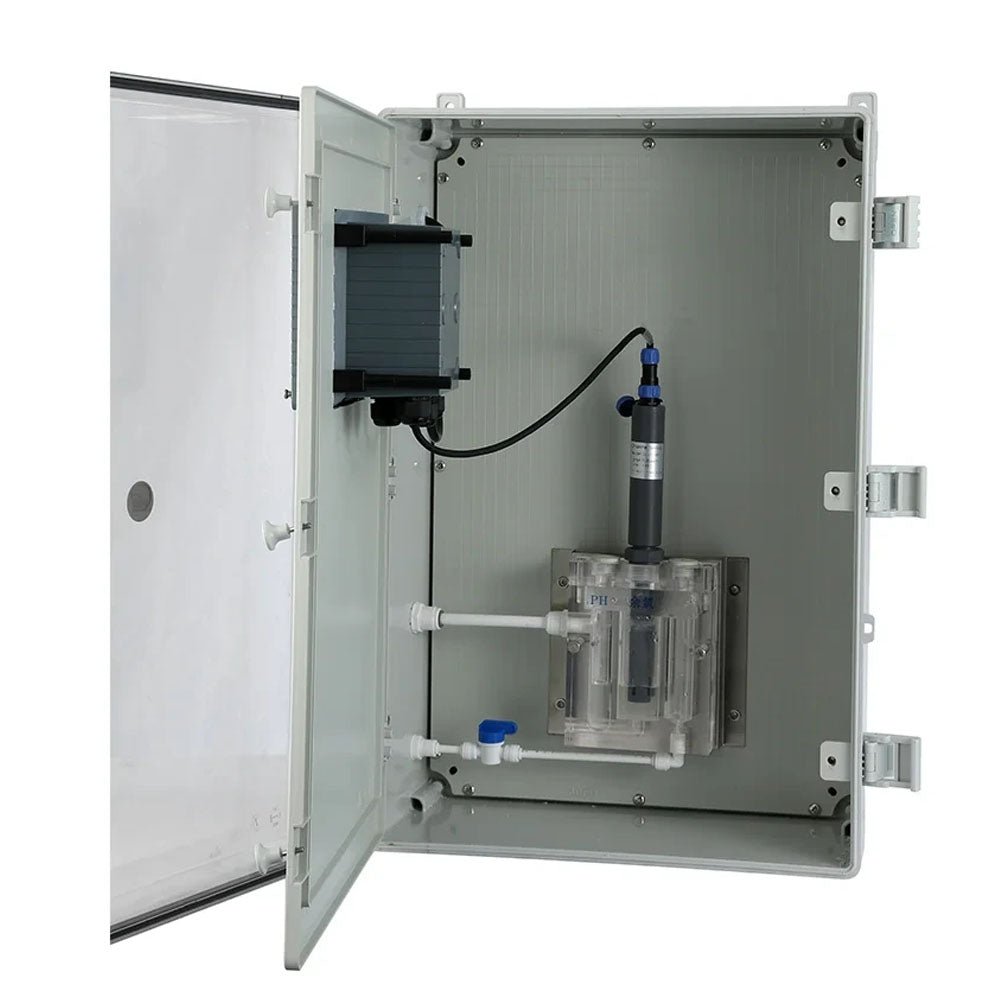

The Online Residual Chlorine Meter seamlessly integrates a digital residual chlorine sensor, flow cell, piping, and valve into a single unit. This unified system allows for centralized monitoring and management via a controller. It combines online water quality analysis, database management, and calibration functions, making chlorine data collection and analysis straightforward and efficient.
Applications:
- Continuous monitoring of residual chlorine in clean water
- Chlorine monitoring in swimming pools
- Measurement of chlorine in food and beverage water
- Potable water quality assessment
- Process liquid monitoring
- Evaluation of treated process water
- Monitoring of pipe networks and secondary water supplies
Features:
-
Plug and Play
With precision digital residual chlorine sensor (included) -
Bubble Rejection System
Classic flow cell design -
Automatic Drain Function
Less manual maintenance -
Wide Power Range
85V AC ~ 265V AC -
Anti-Electromagnetic Interface
Anti-electromagnetic interference and surge protection -
Power Off Protection Function
Saves measurement data completely on power disruption
Specifications
| Product | Inline Residual Chlorine Meter |
| Measured Parameters | Residual Chlorine, Temperature |
|
Measuring Range |
0-60℃ 0-20 mg/L (pH:5.5-10.5) |
| Unit |
Turbidity: mg/L Temperature: ℃ |
| Resolution |
0.01 mg/L 0.1℃ |
|
Accuracy |
Residual chlorine: ±2% FS, Temperature ±0.5℃ |
|
Power |
AC 85-265V 50/60Hz |
|
Current output |
4-20mA |
|
Communication |
RS485 Modbus RTU |
|
Protection |
IP65 |
|
Relay |
2 relays, 5A/250V AC 5A/30V DC |
| Wireless | Optional (for Mobile App and Website) |
| Flow | 15L-30L/H |
|
Overall Dimensions |
600mm × 400mm × 230m（L×W×H) |
|
Inlet |
6mm |
|
Outlet |
10mm |
|
Protection |
IP65 |
