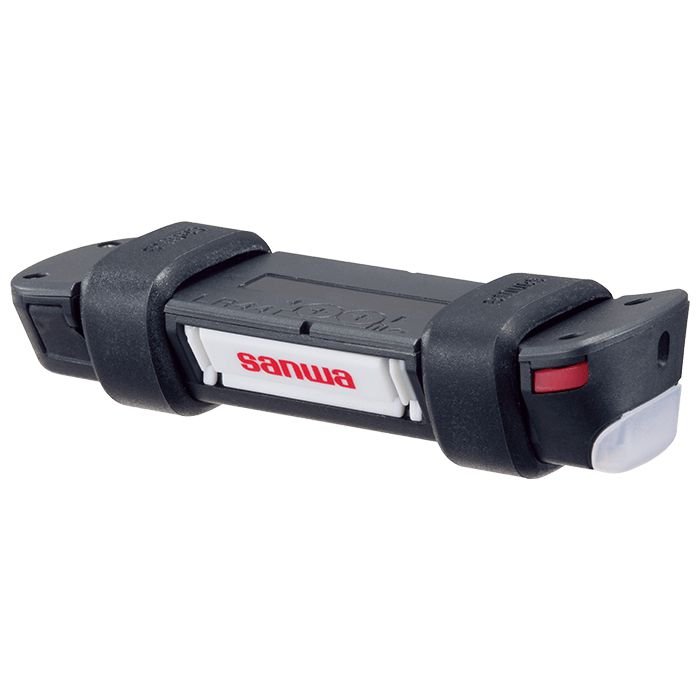

KDP10 | Voltage Detector / Supporter
Download
Download

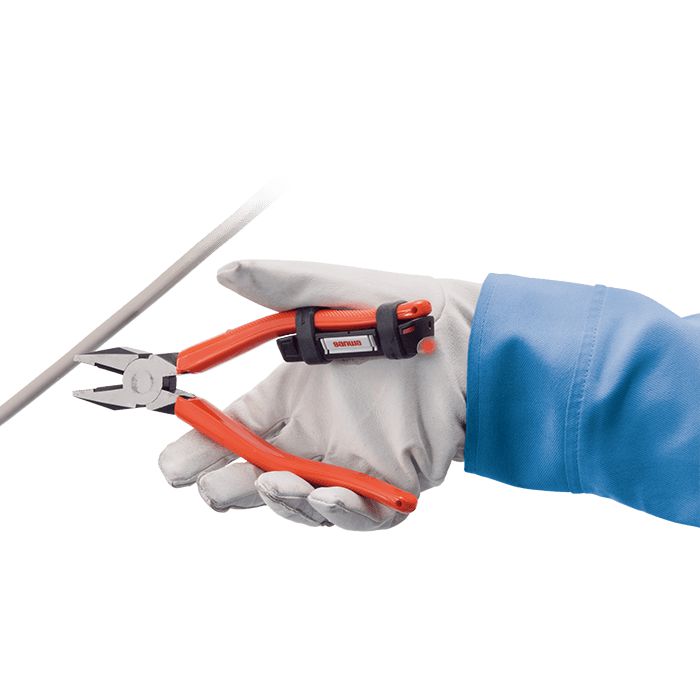

This smart little safety device attaches to your 7 or 8 inch pliers and warns you before cutting a live wire.
This Voltage Detector Supporter is designed to help eliminate accidents caused by an erroneous cut of a live-wire cable for a commercial power’s alternate voltage (frequency: 50 Hz/60 Hz) by being attached to a manual cable cutter.
- Helps eliminate accidents from cutting a live-wire cable
- Detectable even with gloves on
- Long battery life - approx. 5 months of battery life in standby mode
Works with most pliers, but some pliers cannot be attached depending on the handle shape.
Specifications
| Detectable voltage level (representative value) |
Approx. AC60 V～600 V 50Hz/60Hz (when attached 7/8 inches plier handle) |
| Indicator | Buzzer and LED |
| Cable type for live line detection | Sheathed cable (Unshielded cable) |
| Power supply | LR44 1.5V x 2 pcs. |
| Battery life | Approx. 5 months (standby mode) |
| Dimensions/weight | H23×W77×D13 mm / Approx.13 g |
Couldn't load pickup availability
Product Information
Product Information
This smart little safety device attaches to your 7 or 8 inch pliers and warns you before cutting a live wire.
This Voltage Detector Supporter is designed to help eliminate accidents caused by an erroneous cut of a live-wire cable for a commercial power’s alternate voltage (frequency: 50 Hz/60 Hz) by being attached to a manual cable cutter.
- Helps eliminate accidents from cutting a live-wire cable
- Detectable even with gloves on
- Long battery life - approx. 5 months of battery life in standby mode
Works with most pliers, but some pliers cannot be attached depending on the handle shape.
Specifications
| Detectable voltage level (representative value) |
Approx. AC60 V～600 V 50Hz/60Hz (when attached 7/8 inches plier handle) |
| Indicator | Buzzer and LED |
| Cable type for live line detection | Sheathed cable (Unshielded cable) |
| Power supply | LR44 1.5V x 2 pcs. |
| Battery life | Approx. 5 months (standby mode) |
| Dimensions/weight | H23×W77×D13 mm / Approx.13 g |
