8 Channel Multi-Parameter Datalogger | Temperature RTD Pressure 4-20mA 0-5V Voltage with RS485 & Ethernet
Regular price
Sale price
$950.00 USD
Regular price
$1,056.00 USD
Shipping calculated at checkout.
Product Notes:
Custom options and configurations are also available. Please contact us if you need help with your specific application.
Base units are typically in stock. Custom configurations will ship directly from the manufacturer. Please allow 10-15 business days for order processing and shipment.
Base unit includes 8 inputs, 2 relay outputs, 2 feeder output, 24vac power input, RS485 output and Ethernet communication.
Download
Download
Monitor and record up to 6 process variables from a single device.

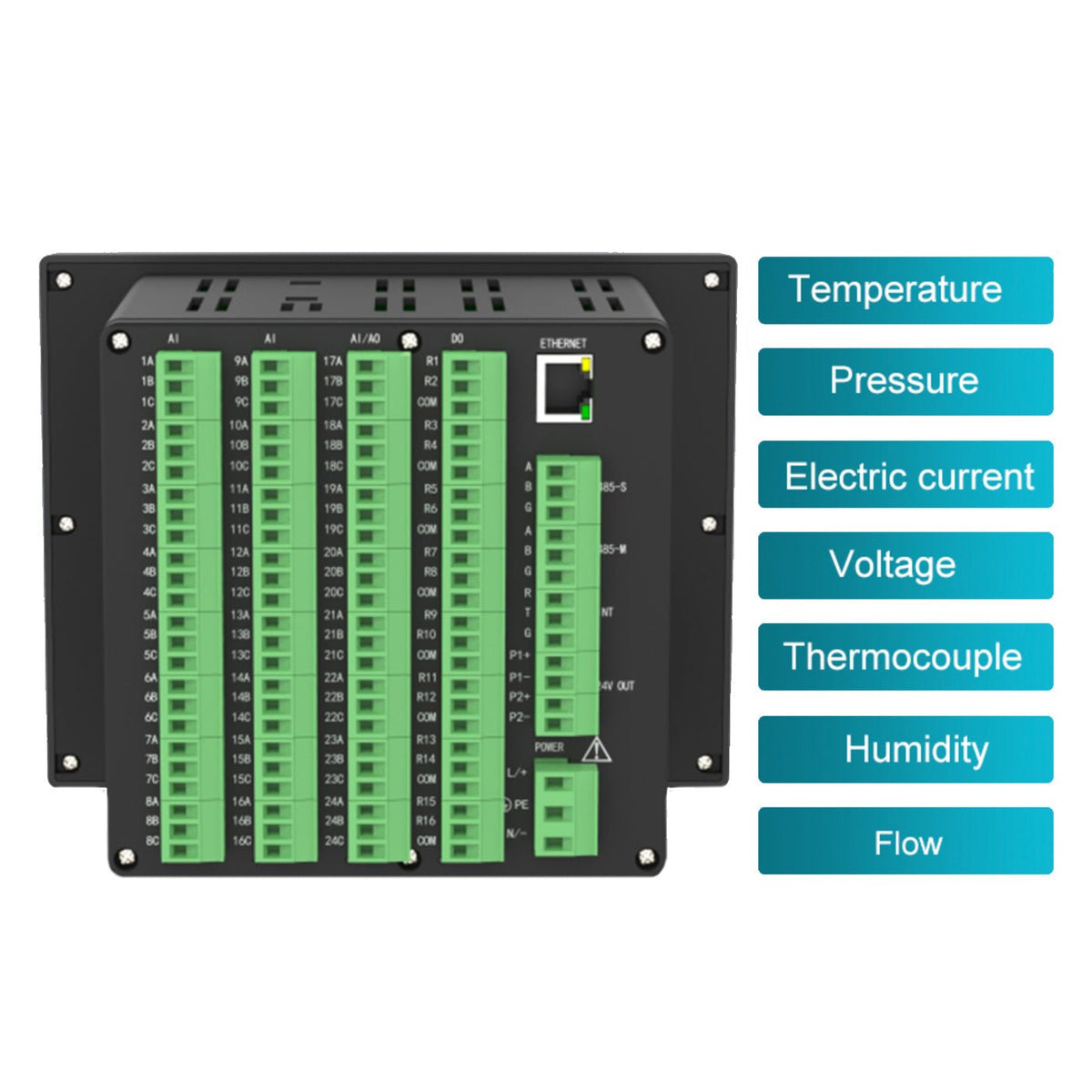

The SPGT72R accepts isolated current (4–20 mA), voltage, RTD, and thermocouple inputs across up to 6 channels, making it equally at home in HVAC systems, industrial process lines, environmental monitoring stations and laboratory settings.

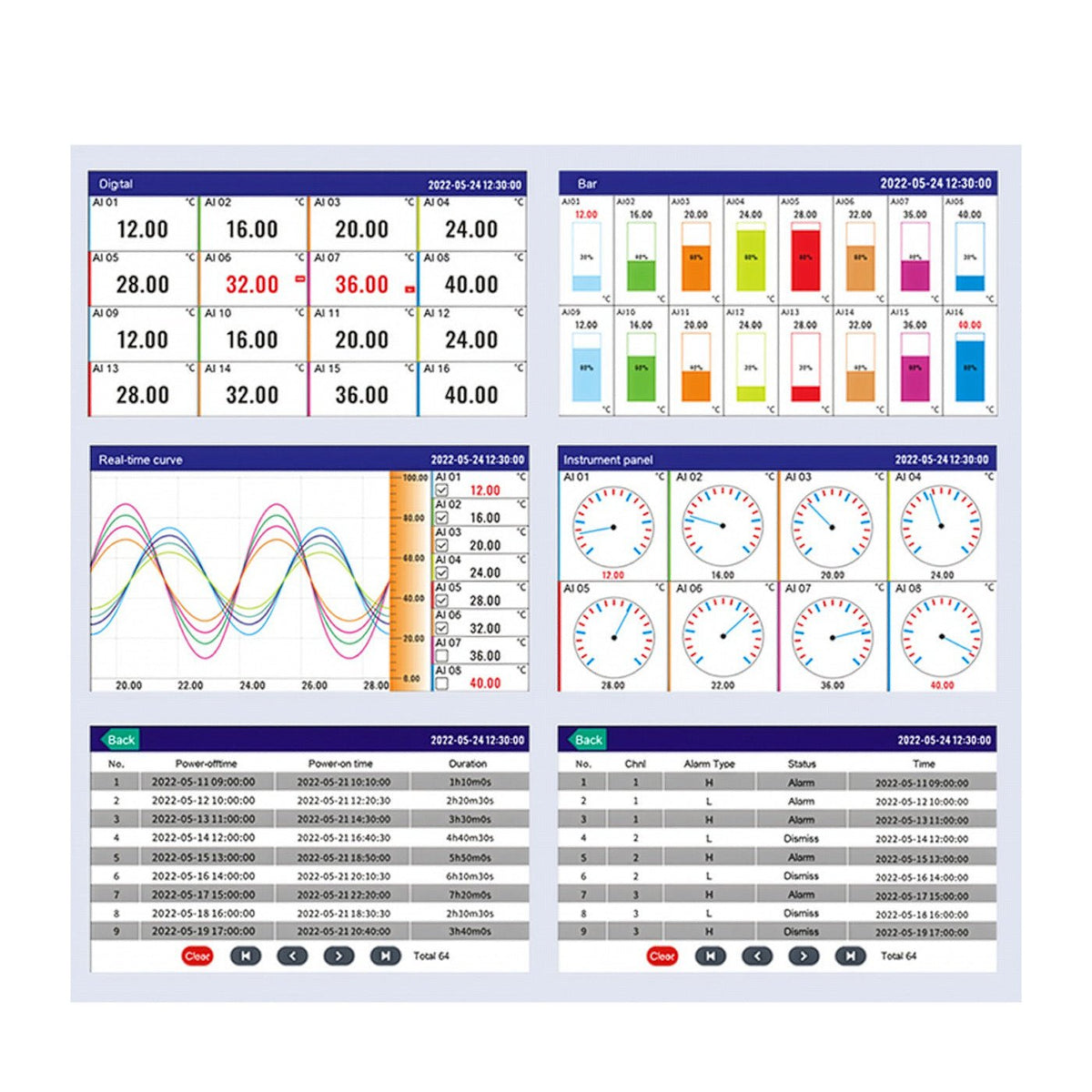

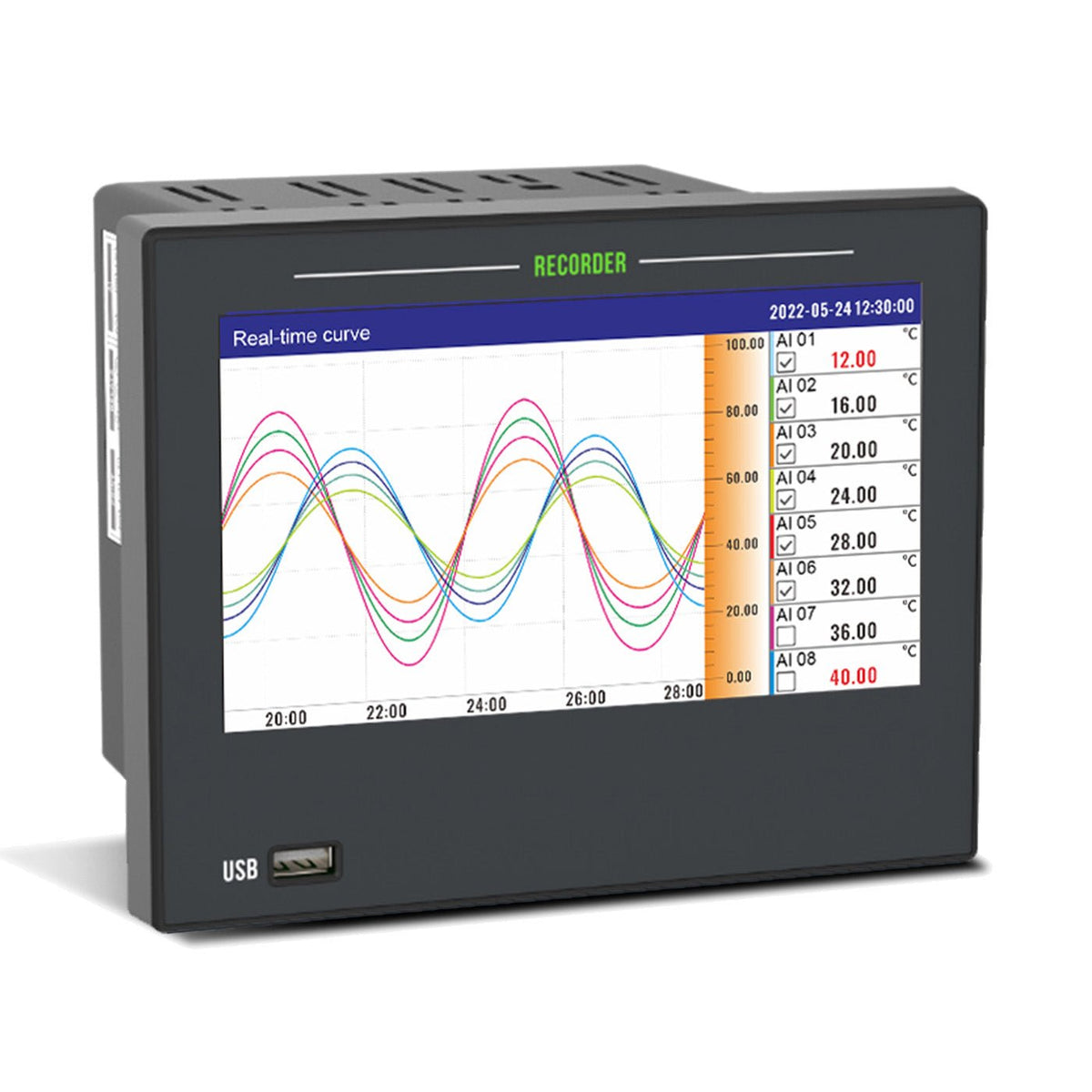

A 7-inch color touchscreen delivers real-time data in your choice of digital readout, bar graph, or trend chart view with no laptop required for at-a-glance status checks. With a 1-second sampling rate, the SPSGT72R captures fast-changing conditions that slower loggers miss.
- 1–6 isolated input channels — current (4–20 mA), voltage, RTD, thermocouple
- 7" color touchscreen with digital, bar graph, and trend chart display modes
- 1-second sampling rate for high-resolution data capture
- Alarm relay outputs for threshold-based process control
- 1–8 channels of 4–20 mA analog output for integration with downstream controllers or BAS/SCADA systems
- USB, RS-485, and Ethernet interfaces — USB storage supports up to 32 GB
- DIN-rail or panel-mount enclosure suitable for control cabinet installation
Applications
- Building Automation
- HVAC Commissioning
- Process Manufacturing
- Water/Wastewater
- Oil & Gas
- Food Processing
- Research Facilities
Specifications
| Item | Description |
|---|---|
| Dimensions | 187 × 147 × 145 mm (W × H × D), mounting hole 138 × 138 mm |
| Net Weight | 1100 g |
| Screen | 7-inch color touch LCD, 800 × 480 resolution |
| Channels* | Up to 32 universal analog inputs |
| Accuracy | 0.2% F.S. |
| Sampling Period | 1 second |
| Alarm* | Up to 16 normally open relays, 250VAC 3A, 30VDC 3A (resistive load) |
| Transmitter* | Up to 8 transmission outputs, 4–20 mA with load ≤750Ω, accuracy 0.2% |
| 24VDC Output | 2 × 24VDC ±10% outputs, total current ≤120 mA |
| RS485 | RS485 communication interface, Modbus RTU protocol |
| Ethernet* | 10/100Base-T RJ45 port, Modbus TCP protocol (≤3 connections) |
| USB | USB 2.0, supports up to 32 GB USB drive |
| Micro Printer* | TTL micro printer interface |
| Power Supply | 100–240VAC 50Hz or 24VDC ±10% (reverse protection), ≤20W |
| Preheating Time | 30 minutes |
| Work Environment | Temperature: -10 to 60°C, Humidity: 0 to 85% RH (non-condensing) |
| EMC Fast Transient | Power supply 2000V, signal 1000V |
| ESD | Contact 4000V, air 8000V |
| Withstand Voltage | AC220V: 1500V (terminal to ground) DC24V: 500V (terminal to ground), 1000V (between terminals) |
| Insulation Resistance | AC220V: 500V 20MΩ DC24V: 100V 5MΩ |
| Recording Interval | 1s, 2s, 5s, 10s, 15s, 30s, 1min, 2min, 5min, 10min, 30min, 1h |
| Data Memory | 64MB, up to 900,000 records |
| Recording Duration | 32 channels at 1-second interval, up to 10 days, cyclic overwrite storage |
| Other Records | 256 alarm logs, power switch records, operation logs, circular storage |
| Installation | Panel mount, indoor use, IP65 front panel protection |
* Optional features
