Multi-Parameter Water Quality Sonde Sensor Housing
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

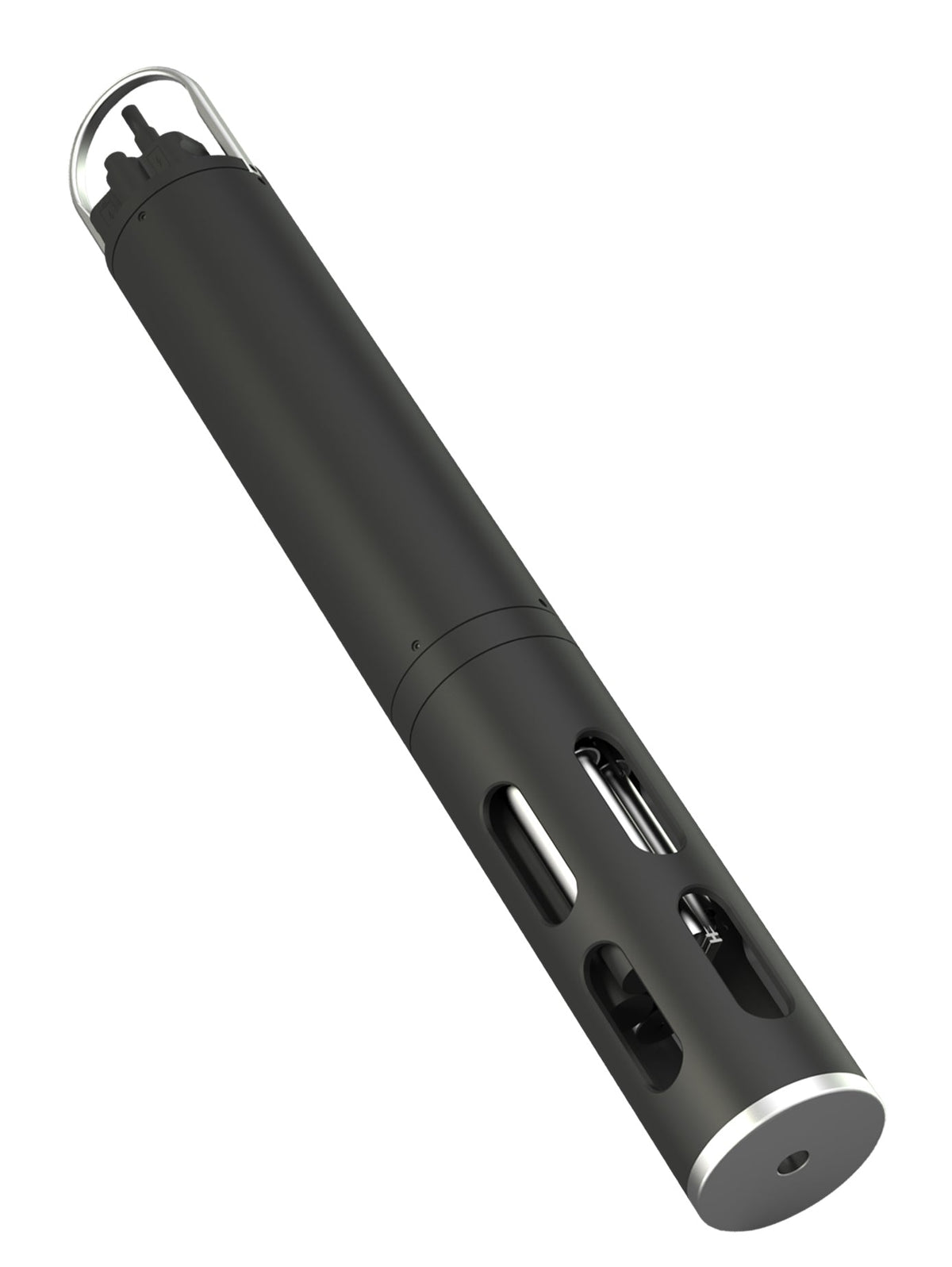

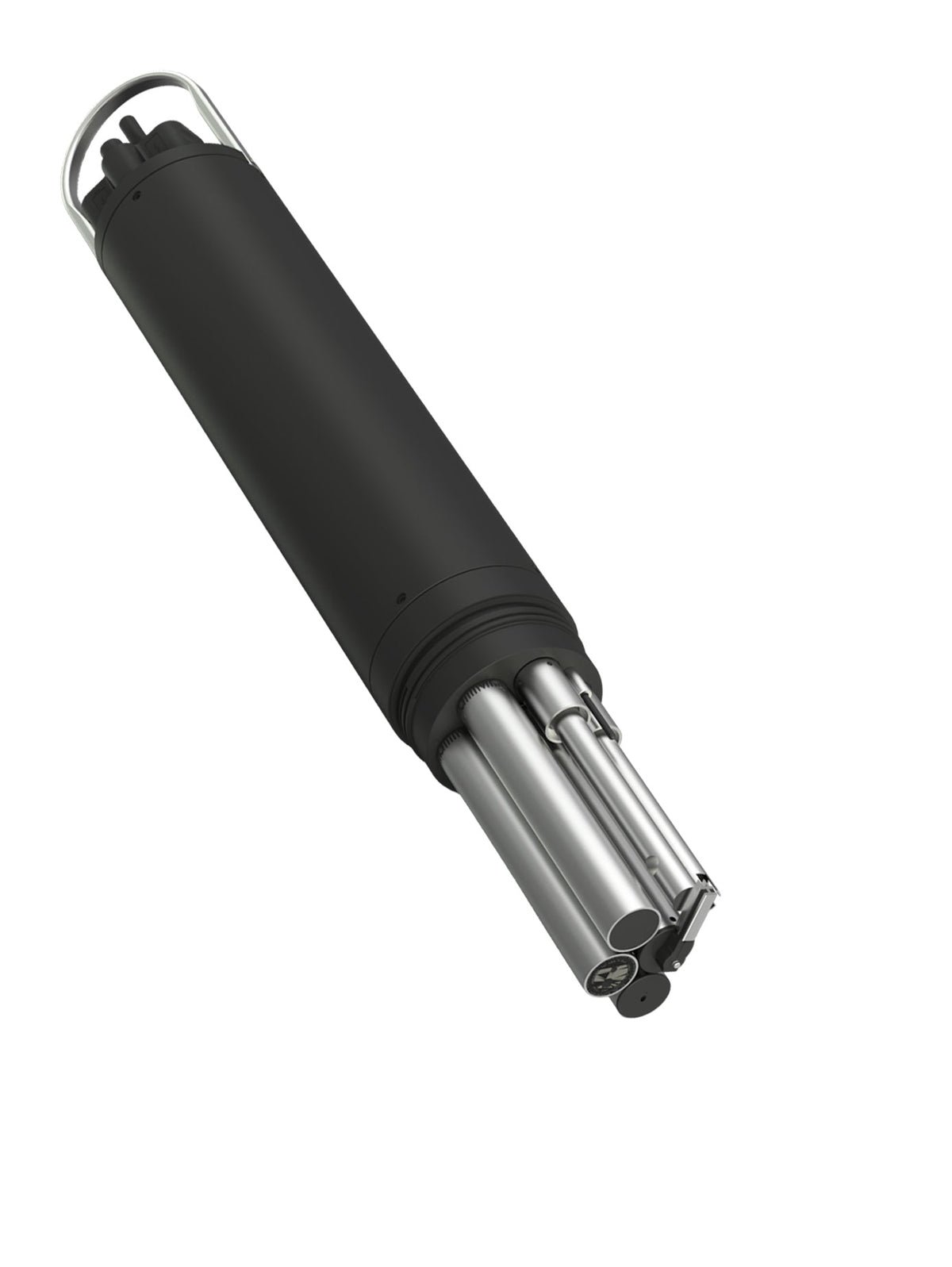

The Multi-Parameter Sonde Water Quality Sensor Housing is designed for rapid on-site (in situ) water quality monitoring across a wide range of environmental and industrial applications.
This advanced sonde sensor housing integrates multiple sensors into a single probe, allowing simultaneous measurement of critical water quality parameters with high precision and reliability.
Notes:
1) This is for the SENSOR HOUSING ONLY- you must purchase each sensor separately in addition to the housing. Sensor housing includes temperature, depth (pressure) sensors.
2) The sensor housing can be connected to either the Portable Multi-Parameter Water Quality Analyzer, or integrated with 3rd party data loggers or remote monitoring systems via built-in RS485 Modbus output and Bluetooth wireless capability.
3) This unit ships direct from the factory. Please allow an additional 5-10 working days for shipment and delivery.
The integrated multi-parameter sensor measures a wide range of water quality indicators, including depth, temperature, pH, ORP, conductivity, turbidity, dissolved oxygen, chlorophyll, blue-green algae, ammonia nitrogen, nitrate, potassium, fluoride and chloride. This allows comprehensive monitoring of physical, chemical and biological conditions in natural water.
Eight parameters use analog electrodes: pH, conductivity, ORP, ammonia nitrogen, nitrate, potassium, fluoride and chloride. Up to four of these can be selected at one time, with no duplication.
Each electrode connects to a fixed, labeled port on the device and ports are not interchangeable. Labels include pH for pH, C for conductivity, OR for ORP, NH for ammonia, NO for nitrate, F for fluoride, CL for chloride and K for potassium. Numbered ports 1 through 4 correspond to specific electrode assignments, while numbered ports alone indicate digital electrode connections.
Note: Electrode configurations are set at the factory. The device will not detect or alert if a configured electrode is disconnected and may still display a reading even when the sensor is not physically connected.
- Simultaneous, multi-parameter measurement from a single probe with a range of optional sensors.
- Measures temperature, depth, pH, ORP, conductivity, salinity, TDS, turbidity, and dissolved oxygen.
- Additional sensors also available for chlorophyll, blue-green algae, ammonia nitrate, chloride and fluoride.
- Optional Bluetooth communication for wireless data transmission
- RS485 Modbus output for integration with data loggers and monitoring systems
- Field-replaceable electrodes for easy maintenance
- Optional self-cleaning system for long term accuracy in continuous monitoring environments
Typical Applications
- Environmental water monitoring of rivers lakes and reservoirs
- Drinking water source monitoring
- Groundwater quality assessment
- Marine and coastal water monitoring
- Environmental research and field surveys
- Aquaculture water quality management
- Municipal water resource monitoring
Specifications
| Sensor Parameter | Measurement Principle | Range | Resolution | Accuracy |
|---|---|---|---|---|
| Depth | Pressure sensitive method | 0 to 30 m | 2 cm | ±0.3% |
| Temperature | Thermistor method | 0 to 50 °C | 0.01 °C | ±0.1 °C |
| pH | Glass pH electrode | 0 to 14 pH | 0.01 pH | ±0.1 pH |
| Conductivity | Platinum electrode pair | 1 µS/cm to 2000 µS/cm (K=1) 100 µS/cm to 100 mS/cm (K=10) |
0.1 µS/cm to 0.01 mS/cm | ±3% |
| Turbidity | Light scattering method | 0 to 1000 NTU | 0.1 NTU | ±5% |
| Dissolved Oxygen | Fluorescence | 0 to 20 mg/L 0 to 20 ppm 0 to 200% |
0.01 mg/L or 0.1% | ±0.1 mg/L (<8 mg/L) ±0.2 mg/L (>8 mg/L) |
| Chlorophyll | Fluorescence | 0 to 500 µg/L | 0.1 µg/L | ±5% |
| Blue-green Algae | Fluorescence | 100 to 300000 cells/mL | 20 cells/mL | ±5% |
| Ammonia Nitrogen (NH₃-N) | Ion selective electrode | 0.1 to 100 mg/L-N | 0.01 mg/L-N | ±10% or ±2 mg/L |
| Nitrate Nitrogen (NO₃-N) | Ion selective electrode | 0.5 to 100 mg/L-N | 0.01 mg/L-N | ±10% or ±2 mg/L |
| Chloride Ion (Cl-) | Ion selective electrode | 3 to 1000 mg/L | 0.01 to 1 mg/L | ±10% or ±2 mg/L |
| Fluoride Ion (F-) | Ion selective electrode | 0.5 to 1000 mg/L | 0.01 to 1 mg/L | ±10% or ±2 mg/L |
Downloads
Optional Probes
(Included in Sonde Housing).
