Online Multi-Parameter Water Quality Analyzer
Product Notes:
1. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

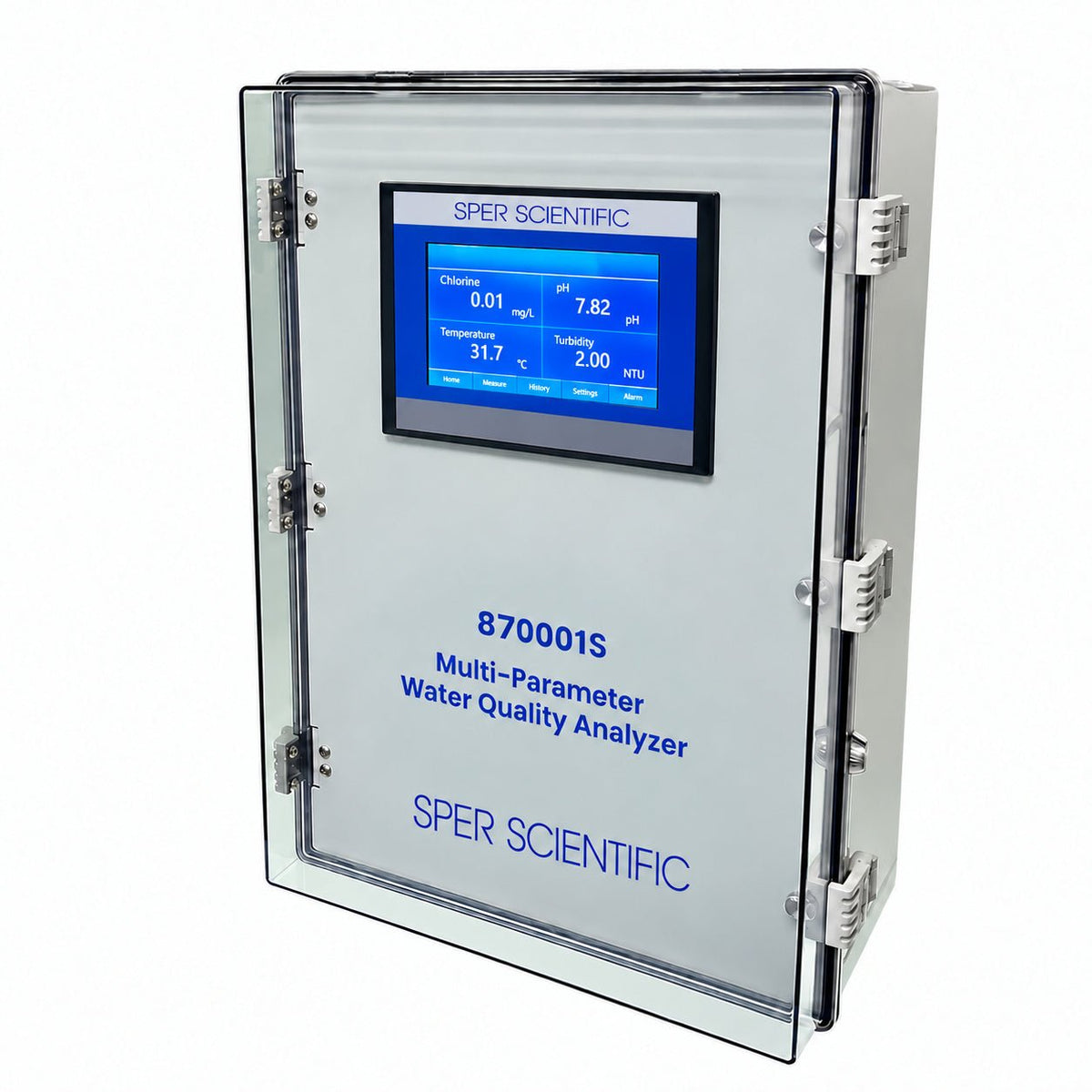

The Sper Scientific 870001S Multi-Parameter Water Quality Analyzer combines online pH, residual chlorine, turbidity and temperature monitoring in an integrated cabinet.
Designed for waterworks, municipal water supply and drinking water monitoring in public facilities, it brings key water quality measurements together in one installation.

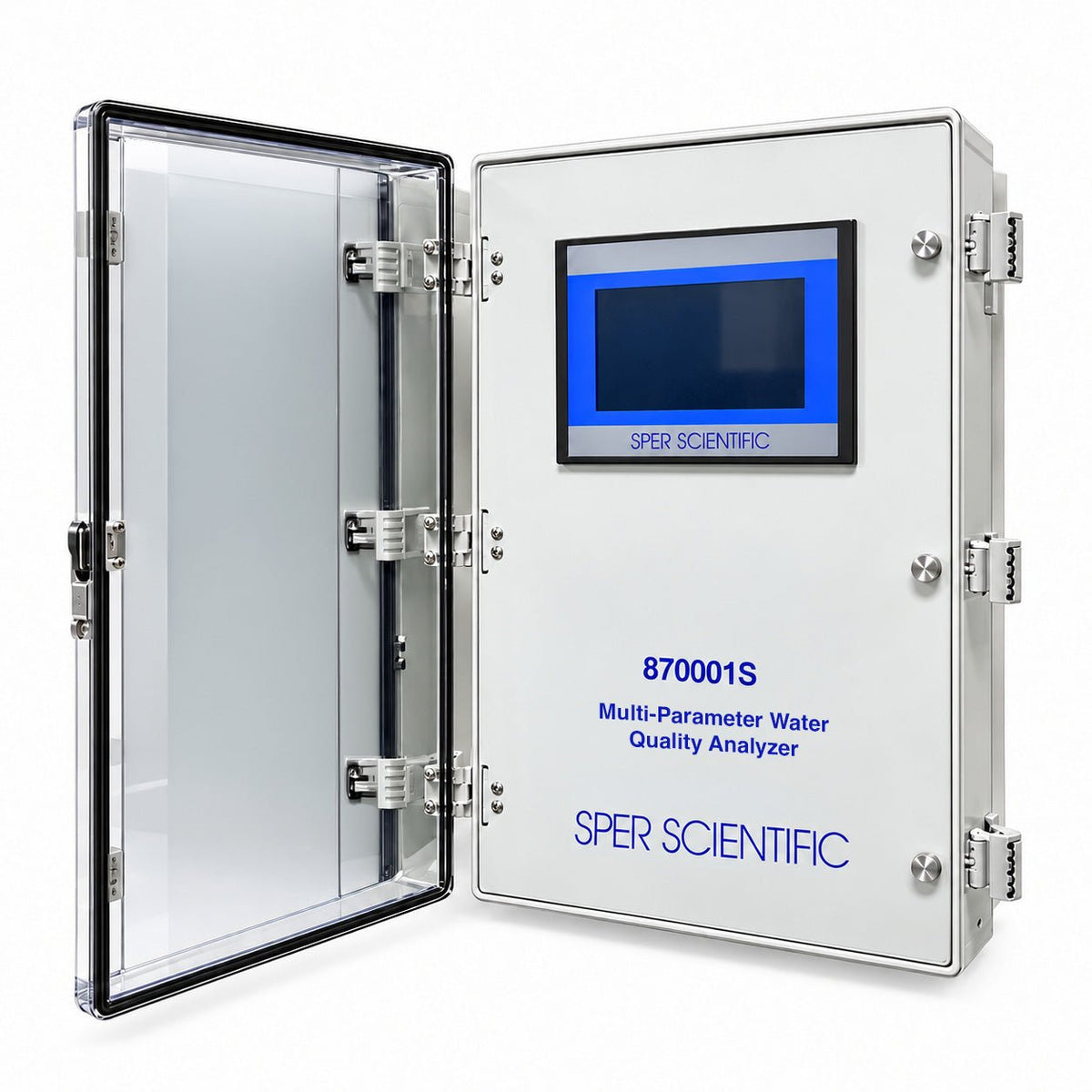

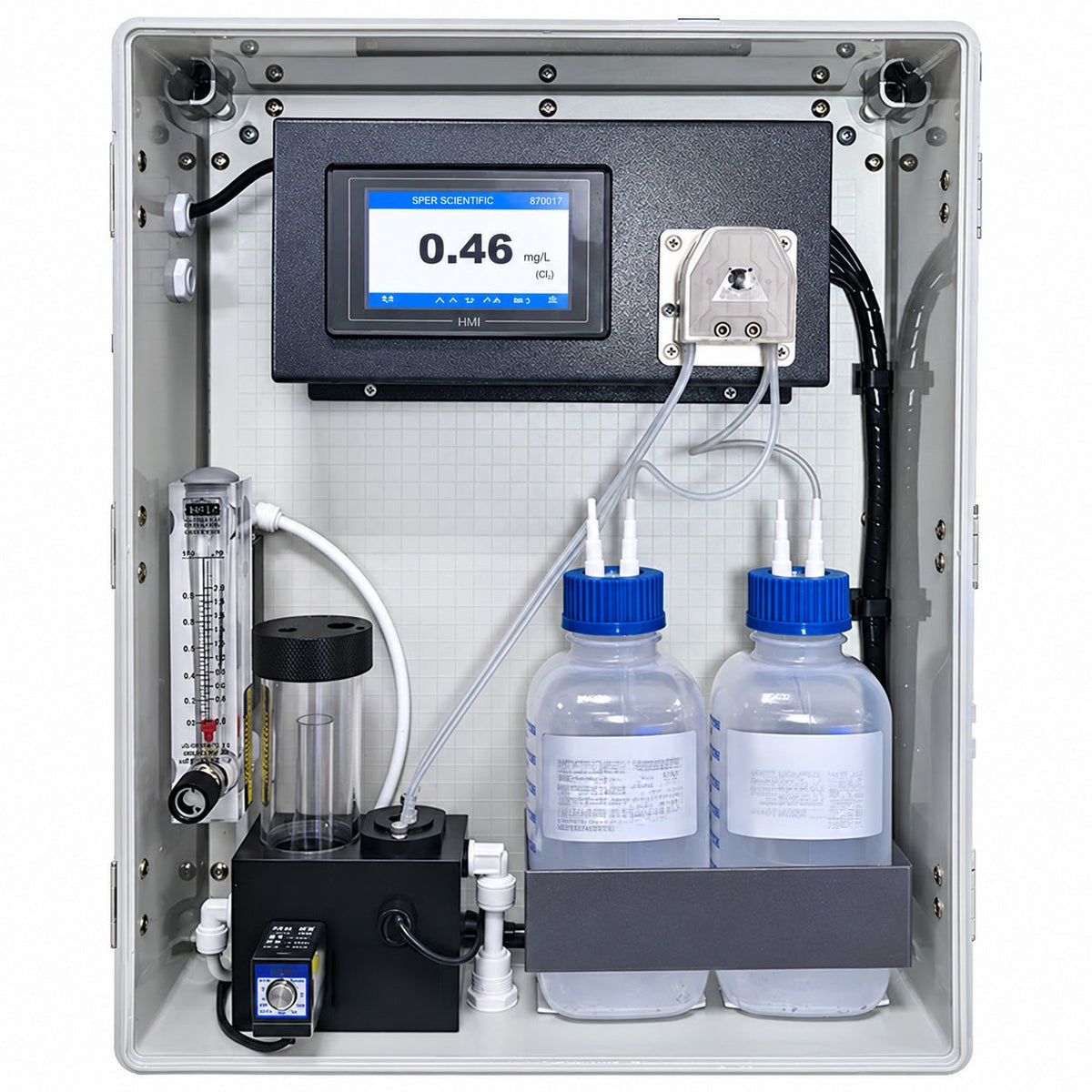

The compact cabinet simplifies equipment placement and reduces the space required for a monitoring station. A front-mounted display provides access to process information, while the internal arrangement groups the measurement components, sample tubing and connections for service access. Online monitoring and stored data help operators review water quality conditions and changes over time.
RS485 communication supports connection to compatible monitoring equipment. The system is intended for water supply applications under normal temperature and pressure conditions. Parameter customization is available at the product-family level; confirm the required sensors and configuration for the installation before ordering.
Features
- Integrated online monitoring of pH, residual chlorine, turbidity and temperature
- Cabinet-based design simplifies transportation and installation
- Front-mounted display for water quality information
- Online data monitoring and storage
- RS485 communication interface
- Accessible internal measurement components and sample connections
- Compact 400 × 600 × 220 mm cabinet
- Suitable for waterworks, municipal supply and drinking water monitoring stations
Specifications
| Parameter | Specification |
|---|---|
| Part number | 870001S |
| Measurement parameters | pH, residual chlorine, turbidity and temperature |
| pH range / resolution / accuracy | 0–14.00 pH / 0.01 pH / ±0.1 pH |
| Residual chlorine range / resolution / accuracy | 0–2.00 mg/L / 0.01 mg/L / ±3% of full scale |
| Turbidity range / resolution | 0–2.00 NTU / 0.01 NTU |
| Turbidity accuracy | ±2% or ±0.02 NTU, whichever is greater |
| Temperature range / resolution / accuracy | 0–60°C / 0.1°C / ±0.5°C |
| Communication interface | RS485 |
| Power supply | 220 VAC ±10% |
| Operating ambient temperature | 0–50°C |
| Humidity condition | ≤85% RH, non-condensing |
| Cabinet dimensions | 400 × 600 × 220 mm (L × H × W) |
Couldn't load pickup availability
Product Information
Product Information
The Sper Scientific 870001S Multi-Parameter Water Quality Analyzer combines online pH, residual chlorine, turbidity and temperature monitoring in an integrated cabinet.
Designed for waterworks, municipal water supply and drinking water monitoring in public facilities, it brings key water quality measurements together in one installation.
The compact cabinet simplifies equipment placement and reduces the space required for a monitoring station. A front-mounted display provides access to process information, while the internal arrangement groups the measurement components, sample tubing and connections for service access. Online monitoring and stored data help operators review water quality conditions and changes over time.
RS485 communication supports connection to compatible monitoring equipment. The system is intended for water supply applications under normal temperature and pressure conditions. Parameter customization is available at the product-family level; confirm the required sensors and configuration for the installation before ordering.
Features
- Integrated online monitoring of pH, residual chlorine, turbidity and temperature
- Cabinet-based design simplifies transportation and installation
- Front-mounted display for water quality information
- Online data monitoring and storage
- RS485 communication interface
- Accessible internal measurement components and sample connections
- Compact 400 × 600 × 220 mm cabinet
- Suitable for waterworks, municipal supply and drinking water monitoring stations
Specifications
| Parameter | Specification |
|---|---|
| Part number | 870001S |
| Measurement parameters | pH, residual chlorine, turbidity and temperature |
| pH range / resolution / accuracy | 0–14.00 pH / 0.01 pH / ±0.1 pH |
| Residual chlorine range / resolution / accuracy | 0–2.00 mg/L / 0.01 mg/L / ±3% of full scale |
| Turbidity range / resolution | 0–2.00 NTU / 0.01 NTU |
| Turbidity accuracy | ±2% or ±0.02 NTU, whichever is greater |
| Temperature range / resolution / accuracy | 0–60°C / 0.1°C / ±0.5°C |
| Communication interface | RS485 |
| Power supply | 220 VAC ±10% |
| Operating ambient temperature | 0–50°C |
| Humidity condition | ≤85% RH, non-condensing |
| Cabinet dimensions | 400 × 600 × 220 mm (L × H × W) |
