Online Universal Water Quality Transmitter
Product Notes:
1. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
Universal Transmitter provides continuous online water quality monitoring when paired with a compatible BOQU digital sensor.
Configurations support pH, ORP, residual chlorine, dissolved oxygen, turbidity or suspended solids, with temperature measurement available where supported by the selected sensor.

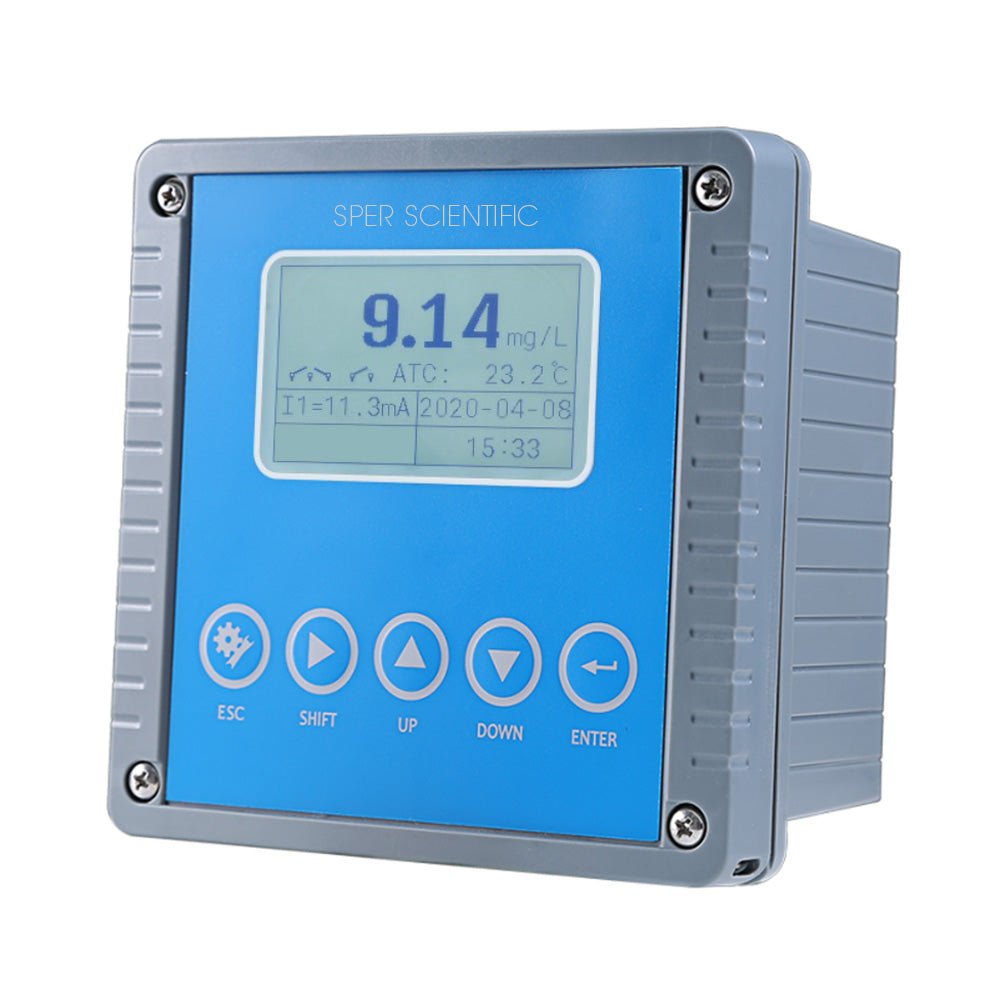

Designed for panel installation, the DA800 combines a 3.1-inch backlit LCD and five-button interface with two 4–20 mA outputs and RS485 Modbus RTU communication. These interfaces support connection to PLCs and plant monitoring systems, while three relays provide high alarm, low alarm and cleaning control functions.
Historical data logging supports adjustable recording intervals from 1–999 minutes. Stored readings can be viewed on the instrument or exported to a computer in CSV format through the USB Type-C port. A maintenance mode holds the 4–20 mA and RS485 output values during service, while simulation functions help check current outputs and relay operation.
The IP65-rated ABS housing and 4 W power consumption suit fixed monitoring installations in water treatment, wastewater treatment, industrial process water, aquaculture and biological fermentation. The standard power configuration accepts 100–240 VAC; a 24 VDC version is optional.
Features
- Compatible with supported Sper Scientific digital sensors for multiple water quality applications
- 3.1-inch backlit LCD with measurement, status, date and time display
- Dual 4–20 mA outputs and RS485 Modbus RTU communication
- Three relays for high alarm, low alarm and cleaning control
- Historical data recording with adjustable storage intervals
- CSV data export through USB Type-C
- Maintenance mode holds output values during service
- Current output and relay simulation for system checks
- Power-loss data retention
- IP65-rated ABS enclosure for panel mounting
Specifications
| Parameter | Specification |
|---|---|
| Model | 870016 |
| Supported parameters | pH, ORP, residual chlorine, dissolved oxygen, turbidity, suspended solids and temperature; configuration depends on the connected sensor |
| Display | 3.1-inch backlit digital LCD |
| Housing | ABS plastic |
| Standard power supply | 100–240 VAC, 50/60 Hz |
| Optional power supply | 24 VDC |
| Power consumption | 4 W |
| Analog outputs | Two 4–20 mA outputs; functions depend on sensor configuration |
| Digital communication | RS485, Modbus RTU |
| Relays | Three; high alarm, low alarm and cleaning control |
| Relay contact rating | 5 A at 250 VAC or 5 A at 30 VDC |
| Data logging interval | Adjustable from 1–999 minutes |
| Data export | USB Type-C connection to a computer; CSV export |
| Dimensions | 144 × 144 × 104 mm |
| Weight | 0.9 kg |
| Protection rating | IP65 |
| Operating environment | −20 to 50°C; ≤95% RH, non-condensing |
| Storage environment | −40 to 70°C; ≤95% RH, non-condensing |
| Maximum operating altitude | 2,000 m |
| Overvoltage category / pollution degree | II / 2 |
Sensor-dependent measurement ranges
| Parameter | Specification |
|---|---|
| pH | 0–14 pH |
| ORP | −2,000 to +2,000 mV |
| Residual chlorine | 0–5 mg/L |
| Dissolved oxygen | 0–25 mg/L |
| Turbidity | 0–4,000 NTU |
| Suspended solids | 0–120,000 mg/L |
These ranges describe the controller's supported configurations. Actual range, accuracy, temperature capability and process limits depend on the selected electrode or sensor. The transmitter does not measure every listed parameter simultaneously.
Downloads
FAQs
Does the DA800 measure all listed parameters at once?
No. Supported measurements and menu functions depend on the connected sensor and selected configuration.
Can it connect to a PLC?
Yes. It provides RS485 Modbus RTU communication and two 4–20 mA outputs.
Can I export recorded readings?
Yes. Stored data can be copied to a computer in CSV format over USB. Logging pauses while the USB connection is active and resumes after disconnection.
Does every sensor configuration measure temperature?
No. The manual states that turbidity and suspended solids configurations do not provide the temperature setting function. Check the selected sensor's capabilities.
What power supply is required?
The standard version uses 100–240 VAC at 50/60 Hz. A 24 VDC version is optional.
What determines measurement accuracy?
Accuracy and usable measurement range depend on the compatible sensor selected. Refer to that sensor's specifications and calibration requirements.
