PLH-150 Pen-Type Leeb Hardness Tester
Product Notes:
All BRK meters and probes ship direct from the manufacturer and require 10-15 business days for shipping.
Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

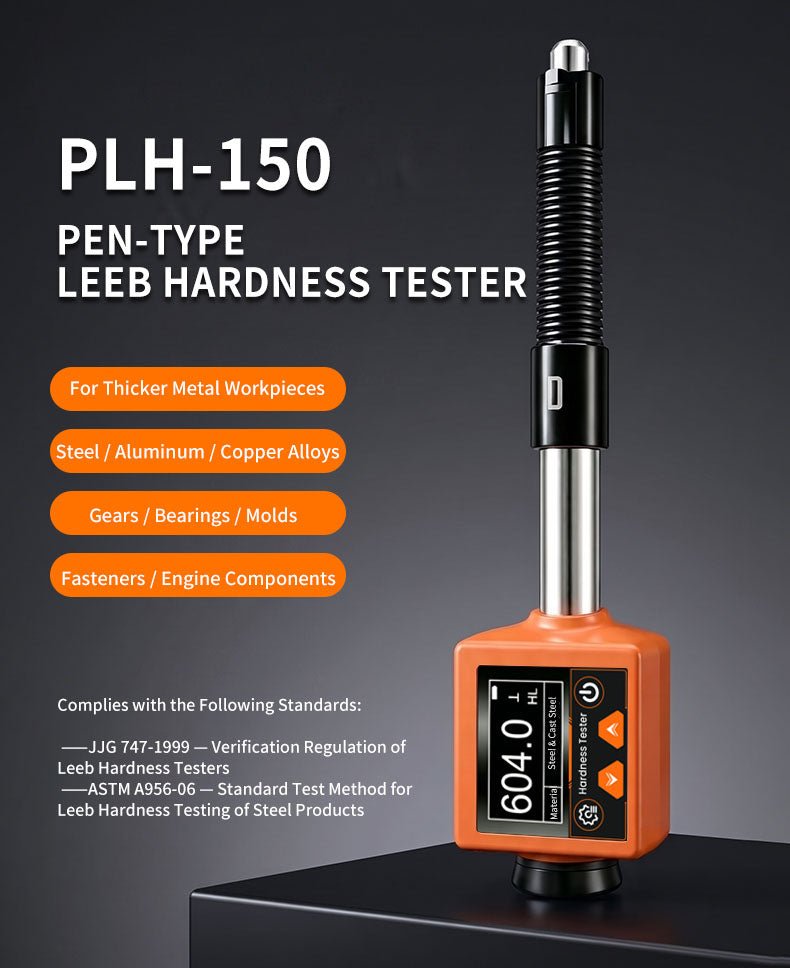

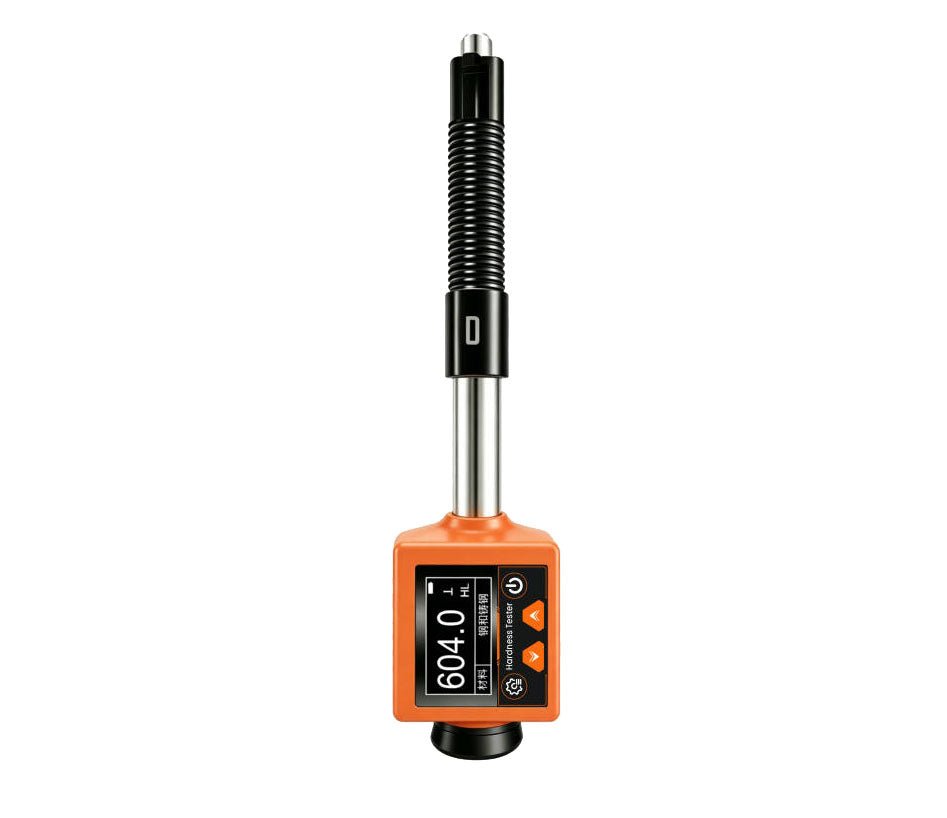

The PLH-150 from BRK NDT Pen-Type Leeb Hardness Tester is a compact, portable instrument for fast on-site hardness testing of metal workpieces.
Its integrated design combines the impact device and display in one cable-free unit, making it convenient for workshop quality control, laboratory inspection and field testing.

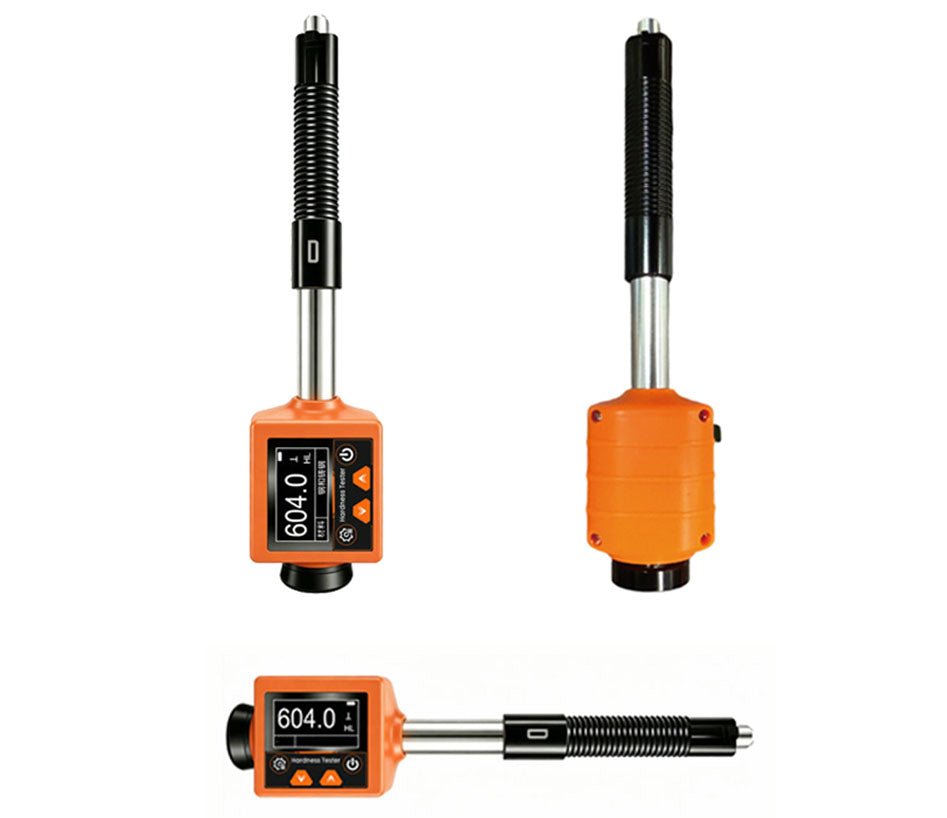

A high-brightness OLED display provides clear readings, while 360° impact direction support allows testing in downward, upward, horizontal and inclined orientations. The built-in rechargeable lithium battery supports USB charging for convenient portable use.
Using the Leeb rebound method, the PLH-150 measures hardness by evaluating the impact body’s rebound from the test surface. Results can be displayed in HL, HB, HV, HRA, HRB, HRC and HS, with tensile strength conversion available where applicable to the selected material.

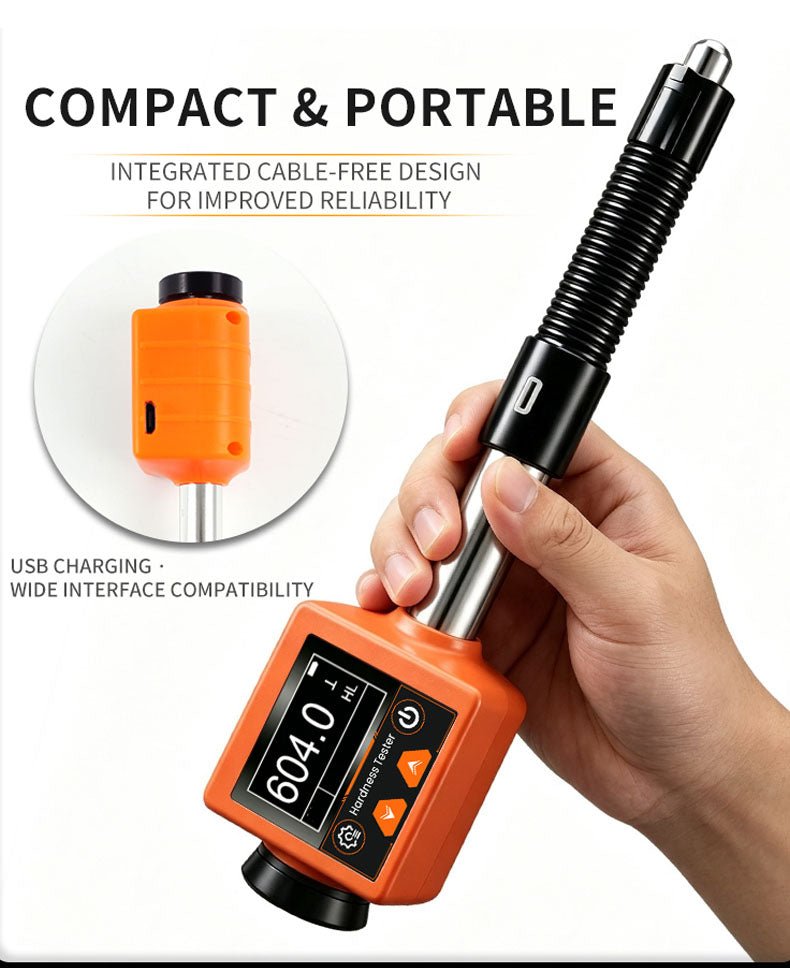

- Integrated pen-type design: Combines the impact device and measuring unit without an external probe cable.
- 360° impact direction: Accommodates different workpiece orientations.
- High-brightness OLED display: Provides a clear numerical readout.
- Multiple hardness scales: Converts readings into commonly used hardness scales for compatible materials.
- Measurement performance: Specified indication error of ±0.5% at HLD = 800 and repeatability of 0.8%.
- USB rechargeable power: Built-in lithium battery supports workshop and field use.
- Compact construction: Convenient for carrying between inspection locations.
Suitable Materials
The PLH-150 supports hardness testing of steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, brass, bronze, pure copper and forged steel. Available hardness conversions depend on the selected material.

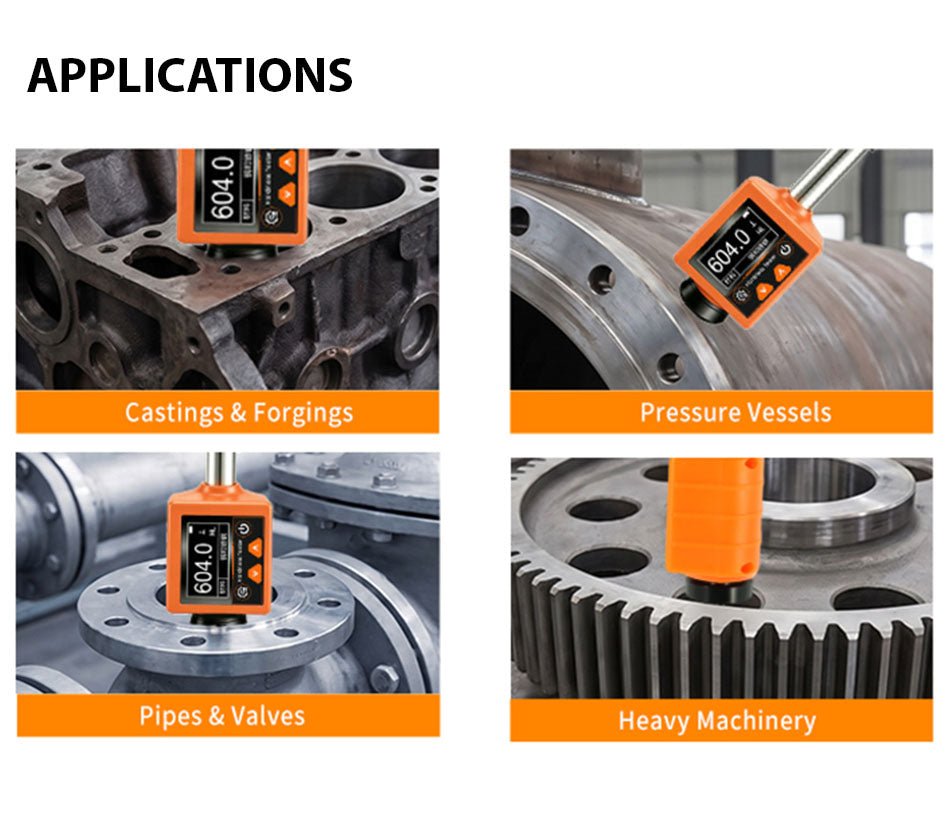

Typical Applications
The PLH-150 is suited to large or sufficiently thick and rigid metal components that are difficult to move to a benchtop tester. Applications include production inspection, incoming quality checks and maintenance testing of castings, forgings, gears, bearing components, shafts, molds, pressure vessel components, pipes, valve bodies and heavy machinery parts.
Reliable Leeb measurements depend on workpiece mass, thickness, rigidity and surface preparation. Thin, lightweight or unsupported parts may require additional support or a different hardness testing method.
Kit Includes:
- PLH-150 Meter
- Spare Support Ring
- Cleaning Brush
- Charging Adapter
- Lanyard USB Cable
- User Manual + Warranty Card + Certificate of Conformity
Specifications
| Parameter | Specification |
|---|---|
| Impact Direction | 360° supported: downward, diagonally downward, horizontal, diagonally upward and upward |
| Measuring Range | 120–980 HLD; 13.9–71.2 HRC; 16.0–744.0 HB; 72.0–1249.0 HV; 26.5–104.1 HS; 10.6–106.2 HRB; 60.5–85.8 HRA; 372.0–1994.4 STR |
| Hardness Scales | Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV) and Shore (HS) |
| Indication Error | ±0.5% (HLD = 800) |
| Repeatability | 0.8% (HLD = 800) |
| Display | Industrial-grade 128 × 64 dot-matrix OLED display |

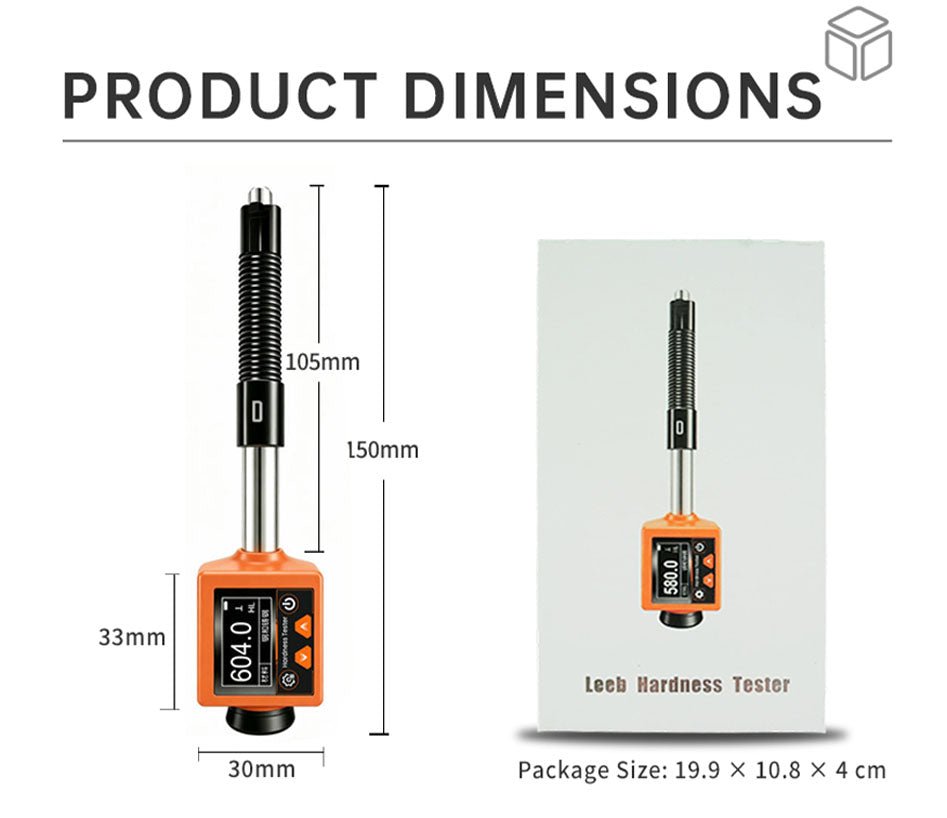

| Dimensions | 148 × 30 × 30 mm |
| Power Supply | 300 mAh rechargeable lithium battery |
| Continuous Operating Time | Approximately 8 hours |
| Operating Conditions | Temperature: −10 to 50°C; relative humidity: ≤90% |
| Button / Display Label | Function |
|---|---|
| Material | Displays the selected material |
| Hardness Scale | Displays the selected hardness scale |
| Settings | Accesses instrument settings |
| Up / Down | Navigates options or adjusts selections |
| Power | Turns the instrument on or off |

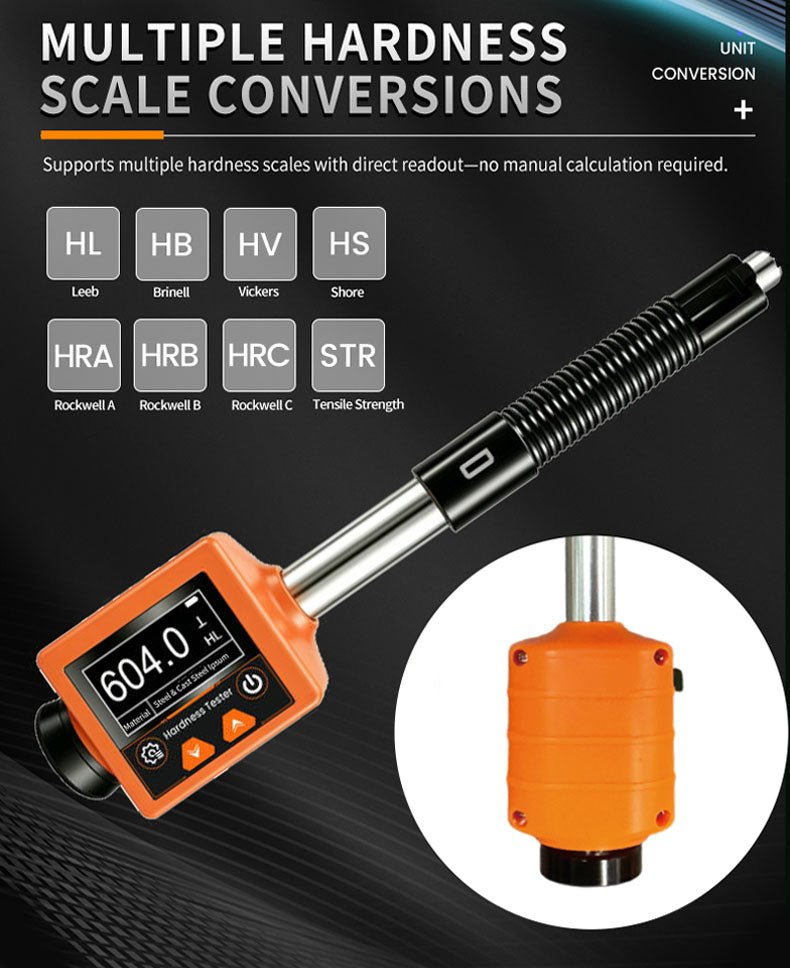

Scales
|
Leeb Hardness |
HLD: 120–980 |
|
Rockwell C |
HRC: 13.9–71.2 |
|
Rockwell B |
HRB: 10.6–106.2 |
|
Rockwell A |
HRA: 60.5–85.8 |
|
Brinell |
HB: 16.0–744.0 |
|
Vickers |
HV: 72.0–1249.0 |
|
Shore |
HS: 26.5–104.1 |
|
Tensile Strength Conversion |
STR: 372.0–1994.4 |
Couldn't load pickup availability
Product Information
Product Information
The PLH-150 from BRK NDT Pen-Type Leeb Hardness Tester is a compact, portable instrument for fast on-site hardness testing of metal workpieces.
Its integrated design combines the impact device and display in one cable-free unit, making it convenient for workshop quality control, laboratory inspection and field testing.
A high-brightness OLED display provides clear readings, while 360° impact direction support allows testing in downward, upward, horizontal and inclined orientations. The built-in rechargeable lithium battery supports USB charging for convenient portable use.
Using the Leeb rebound method, the PLH-150 measures hardness by evaluating the impact body’s rebound from the test surface. Results can be displayed in HL, HB, HV, HRA, HRB, HRC and HS, with tensile strength conversion available where applicable to the selected material.
- Integrated pen-type design: Combines the impact device and measuring unit without an external probe cable.
- 360° impact direction: Accommodates different workpiece orientations.
- High-brightness OLED display: Provides a clear numerical readout.
- Multiple hardness scales: Converts readings into commonly used hardness scales for compatible materials.
- Measurement performance: Specified indication error of ±0.5% at HLD = 800 and repeatability of 0.8%.
- USB rechargeable power: Built-in lithium battery supports workshop and field use.
- Compact construction: Convenient for carrying between inspection locations.
Suitable Materials
The PLH-150 supports hardness testing of steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, brass, bronze, pure copper and forged steel. Available hardness conversions depend on the selected material.
Typical Applications
The PLH-150 is suited to large or sufficiently thick and rigid metal components that are difficult to move to a benchtop tester. Applications include production inspection, incoming quality checks and maintenance testing of castings, forgings, gears, bearing components, shafts, molds, pressure vessel components, pipes, valve bodies and heavy machinery parts.
Reliable Leeb measurements depend on workpiece mass, thickness, rigidity and surface preparation. Thin, lightweight or unsupported parts may require additional support or a different hardness testing method.
Kit Includes:
- PLH-150 Meter
- Spare Support Ring
- Cleaning Brush
- Charging Adapter
- Lanyard USB Cable
- User Manual + Warranty Card + Certificate of Conformity
Specifications
| Parameter | Specification |
|---|---|
| Impact Direction | 360° supported: downward, diagonally downward, horizontal, diagonally upward and upward |
| Measuring Range | 120–980 HLD; 13.9–71.2 HRC; 16.0–744.0 HB; 72.0–1249.0 HV; 26.5–104.1 HS; 10.6–106.2 HRB; 60.5–85.8 HRA; 372.0–1994.4 STR |
| Hardness Scales | Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV) and Shore (HS) |
| Indication Error | ±0.5% (HLD = 800) |
| Repeatability | 0.8% (HLD = 800) |
| Display | Industrial-grade 128 × 64 dot-matrix OLED display |
| Dimensions | 148 × 30 × 30 mm |
| Power Supply | 300 mAh rechargeable lithium battery |
| Continuous Operating Time | Approximately 8 hours |
| Operating Conditions | Temperature: −10 to 50°C; relative humidity: ≤90% |
| Button / Display Label | Function |
|---|---|
| Material | Displays the selected material |
| Hardness Scale | Displays the selected hardness scale |
| Settings | Accesses instrument settings |
| Up / Down | Navigates options or adjusts selections |
| Power | Turns the instrument on or off |
Scales
|
Leeb Hardness |
HLD: 120–980 |
|
Rockwell C |
HRC: 13.9–71.2 |
|
Rockwell B |
HRB: 10.6–106.2 |
|
Rockwell A |
HRA: 60.5–85.8 |
|
Brinell |
HB: 16.0–744.0 |
|
Vickers |
HV: 72.0–1249.0 |
|
Shore |
HS: 26.5–104.1 |
|
Tensile Strength Conversion |
STR: 372.0–1994.4 |
