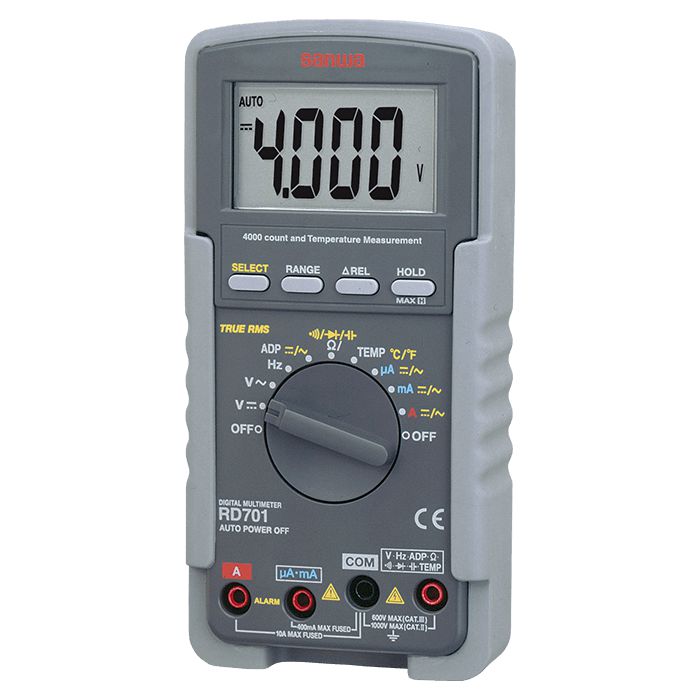

RD701 | Digital Multimeter with True RMS + High Input Impedance
Download
Download
The Sanwa RD701 is a 4000 count, True RMS digital multimeter with 0.3% accuracy.
The RD701 is designed for low voltage circuits, home appliance measurements, and small communications equipment. This device comes in two variants, the RD701, and the RD700. The only difference between the two is that the RD700 does not offer the AC True RMS feature for measuring impure AC sine waves.
The RD701 comes with a 4000-count large format display and has an accuracy of 0.3%. It can be used to measure basic electrical parameters such as voltage, current, resistance, frequency, capacitance as well as temperature (300 ℃ max) using a K-type thermocouple sensor (K-250PC).
This device has an Auto-power off mode that turns the device off after 30 minutes (cancellable). It also features an alarm for wrong probe insertion in the current terminal. The meter has a fuse of 20 kA and has a protective holster with a lead holder and a tilting stand. An optional ACS101 Clamp Current Sensor is also available.
Includes meter, rubber holster, instruction manual and one set of test leads.
- 4000 Count display
- 0.3% Accuracy
- Capacitance measurement
- K type temperature measurement
- Frequency measurement
- ADP function
- Max recording measurement
- Range hold, Data hold, and Relative function
- Continuity confirmed by the buzzer
- Auto and Manual range selection
- Alarm for improper test lead insertion to current terminal
- Auto power off: Turns off after 30 minutes of no operation
- Protective holster with wall hanger and lead holder
- Tilt stand
Specifications
| RD701 | Measuring Range | Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/1000V | ±(0.3%+4) | 0.1mV | 10M～1000MΩ |
| ACV | 400m/4/40/400/1000V | ±(1.5%+5) | 0.1mV | |
| DCA | 400μ/4000μ/40m/400m/4/10A | ±(1.2%+3) | 0.1μA | |
| ACA | 400μ/4000μ/40m/400m/4/10A | ±(1.5%+4) | 0.1μA | |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(0.6%+4) | 0.1Ω | |
| Capacitance | 500n/5μ/50μ/500μ/3000μF | ±(2.5%+6) | 0.1nF | |
| Temperature | -20°C～300°C | ±(2%+3) | 1°C | |
| Frequency | 50Hz～1MHz | ±(0.5%+4) | 0.01Hz | |
| Continuity | Buzzer sounds at between 20Ω and 120Ω. Open voltage: Approx. 0.4V |
|||
| Diode test< | Open voltage: Approx. 1.6V | |||
| Display | Numeral display 4000(Hz:9999, capacitance:5000) |
| Sampling rate | 3 times/sec.(Hz:2 times/sec.) |
| Bandwidth | 50～500Hz |
| Fuse | 12.5A/500V IR20kA Φ6.3×32mm 0.63A/500V IR50kA Φ6.3×32mm |
| Battery | 6F22(9V)×1 |
| Size/Mass | H179×W87×D55mm / 460g（including holster) |
