SE9100 | Speed Meter Speedometer for Elevators + Escalators
Regular price
$981.46 USD
Sale price
Regular price
Shipping calculated at checkout.
Download
Download

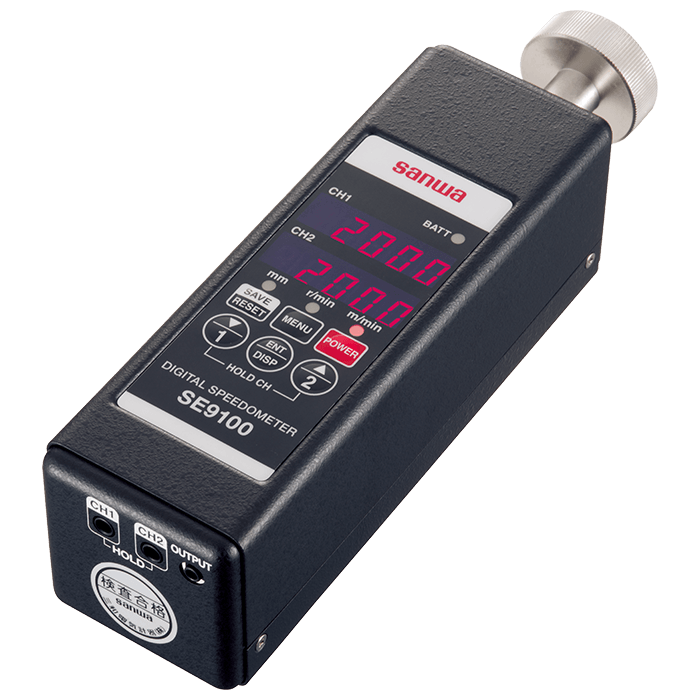

This instrument is a handy-type digital speedometer for use in contact measurement of the speed of an elevator or lift, and the emergency stop distance of an escalator.
It can also measure the rotation speed of a motor by replacing the peripheral speed ring for speed measurement with a rotary contact for rotation speed measurement (optional).
- 3 types of measurement are available
- 2 independent display
- Analog output terminal to record measuring data to your PC
- Externally triggered hold
- Max value hold
- Data hold
- Data memory
- Auto power off
Specifications
| Measurement Ranges | Linear velocity: 0.1 to 2000.0 m/min Rotation speed: 1 to 20000 r/min Distance: 0 to 999 mm |
| Sampling rate | 200 ms |
| Accuracy | ±2dgt (*Electrical operation) |
| Analog output | DC 0 to 2V Accuracy: ±(0.5% rdg＋1 mV) |
| Data hold | CH1/CH2/Max. value All independently CH1/CH2: Hold by Main Unit panel or External triggering |
| Power supply | LR6 1.5 Vx4 |
| Battery life | Approx. 20 hours |
| Size / Mass | H183×W50×D50 mm / Approx. 520 g |
*At 1000.0 m/min, 1 dgt corresponds to 0.1 m/min.
Couldn't load pickup availability
Product Information
Product Information
This instrument is a handy-type digital speedometer for use in contact measurement of the speed of an elevator or lift, and the emergency stop distance of an escalator.
It can also measure the rotation speed of a motor by replacing the peripheral speed ring for speed measurement with a rotary contact for rotation speed measurement (optional).
- 3 types of measurement are available
- 2 independent display
- Analog output terminal to record measuring data to your PC
- Externally triggered hold
- Max value hold
- Data hold
- Data memory
- Auto power off
Specifications
| Measurement Ranges | Linear velocity: 0.1 to 2000.0 m/min Rotation speed: 1 to 20000 r/min Distance: 0 to 999 mm |
| Sampling rate | 200 ms |
| Accuracy | ±2dgt (*Electrical operation) |
| Analog output | DC 0 to 2V Accuracy: ±(0.5% rdg＋1 mV) |
| Data hold | CH1/CH2/Max. value All independently CH1/CH2: Hold by Main Unit panel or External triggering |
| Power supply | LR6 1.5 Vx4 |
| Battery life | Approx. 20 hours |
| Size / Mass | H183×W50×D50 mm / Approx. 520 g |
*At 1000.0 m/min, 1 dgt corresponds to 0.1 m/min.
