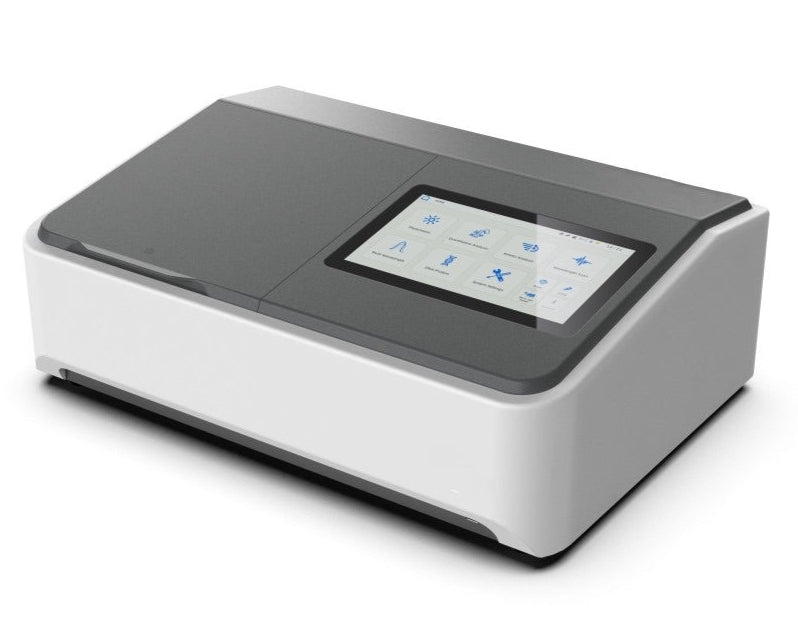

SPS-X6 Single Beam/X8 Series Double Beam UV-Vis Spectrophotometer
Product Notes:
1. Shipment: Please allow 2-3 weeks for order processing and delivery on all Sper UV/Visible Light Spectrophotometers and accessories.
Download
Download
Advanced Single and Dual Beam Systems for Flexible Laboratory Applications.
The SPSX Series offers a range of high-performance UV-Vis spectrophotometers designed to meet the demands of both routine and advanced laboratory analysis.
Available in single and double beam configurations, these instruments feature a modern smart touchscreen interface, standalone operation, and an automatic 8-position cell holder for improved efficiency. With flexible accessory options, robust optical construction, and optional Bluetooth/PC connectivity, the SPSX Series delivers accuracy, speed, and ease of use for applications ranging from DNA/protein analysis to kinetic measurements.
All units are calibrated and include a factory calibration report.
High-Definition Smart Touchscreen
Large, high-sensitivity screen with a user-friendly interface for intuitive operation and clear data visualization.
Integrated Standalone Operation
Perform full-function analysis directly on the device without a computer, including spectrum scanning, standard curves, kinetics, multi-wavelength tests, and DNA/protein assays.
Automatic 8-Position Cell Holder
Enhances productivity by automatically cycling through samples—ideal for high-throughput environments.
Direct Printer Compatibility
Connects directly to standard office printers (e.g., HP DeskJet 1111, 1112, 2723) for quick and convenient result printing.
USB Data Export
All measurement data can be quickly exported to a USB flash drive for seamless reporting and storage.
Optional Bluetooth & PC Software
Expand system capabilities with optional Bluetooth module and PC software for remote operation, data analysis, and reporting.
Versatile Sample Chamber with Accessory Options
Supports a wide range of accessories including 1–10 cm universal cell holders, test tube holders, film holders, integrating spheres, specular reflectance attachments, and Peltier/sipper systems.
High-Quality Grating System
Provides low stray light, high optical resolution, and consistent long-term performance.
Rigid Optical Base Construction
All optical components are mounted on a 16 mm thick die-cast aluminum platform for maximum mechanical stability and measurement accuracy.
Shipping Weight and Dimensions
SPSX-6
20 kg / 44 lb 1.5 oz
62 x 53 x 37cm / 24 3/8" x 20 7/8" x 14 5/8"
SPSX-8(A/S)
37 kg / 81 lb 9.1 oz
84 x 64 x 44cm / 33 1/8" x 25 2/8" x 17 2/8"
Includes:
Spectrophotometer
Factory calibration report
1cm Glass cuvettes (4)
1cm Quartz cuvettes (2)
Power cord
User’s manual
Dust cover
Specifications
|
Model |
SPSX-6 |
SPSX-8 |
SPSX-8A |
SPSX-8S |
|
|
Optical System |
Single Beam |
Double Beam |
|||
|
Light Source |
W Lamp & D2 Lamp |
||||
|
Wavelength Range |
190-1100nm |
||||
|
Bandwidth |
1.8nm |
1.8nm |
1nm |
0.5/1/2/4nm |
|
|
Display |
7-inch Touch Screen |
10-inchTouch Screen |
|||
|
Wavelength Accuracy |
±0.5nm |
±0.1nm at D2656.1nm, ±0.3nm at full range |
|||
|
Wavelength Repeatability |
≤0.2nm |
≤0.1nm |
|||
|
Photometric Accuracy |
±0.3%T (0-100%T); ±0.002Abs (0-0.5Abs); ±0.004Abs (0.5-1.0Abs） |
||||
|
Photometric Repeatability |
≤0.1%T (0-100% T); ≤0.001Abs (0-0.5Abs); ≤0.002Abs (0.5-1.0Abs) |
||||
|
Stability |
≤0.001A/h@250nm & 500nm, 2hrs warm-up |
||||
|
Photometric Range |
-0.3-3A, 0-200%T, 0-9999C |
||||
|
Stray Light |
≤0.05%Tat 220nm & 360nm |
||||
|
Control Mode |
Stand-alone System or PC Software (Optional) |
||||
|
Data Output |
USB Portor Bluetooth (Optional) |
||||
|
Power Requirement |
AC 110/220V, 50/60Hz |
||||
Downloads
