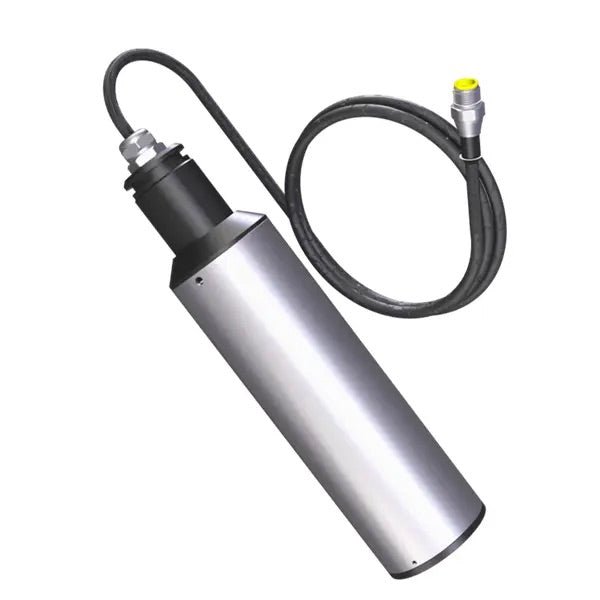

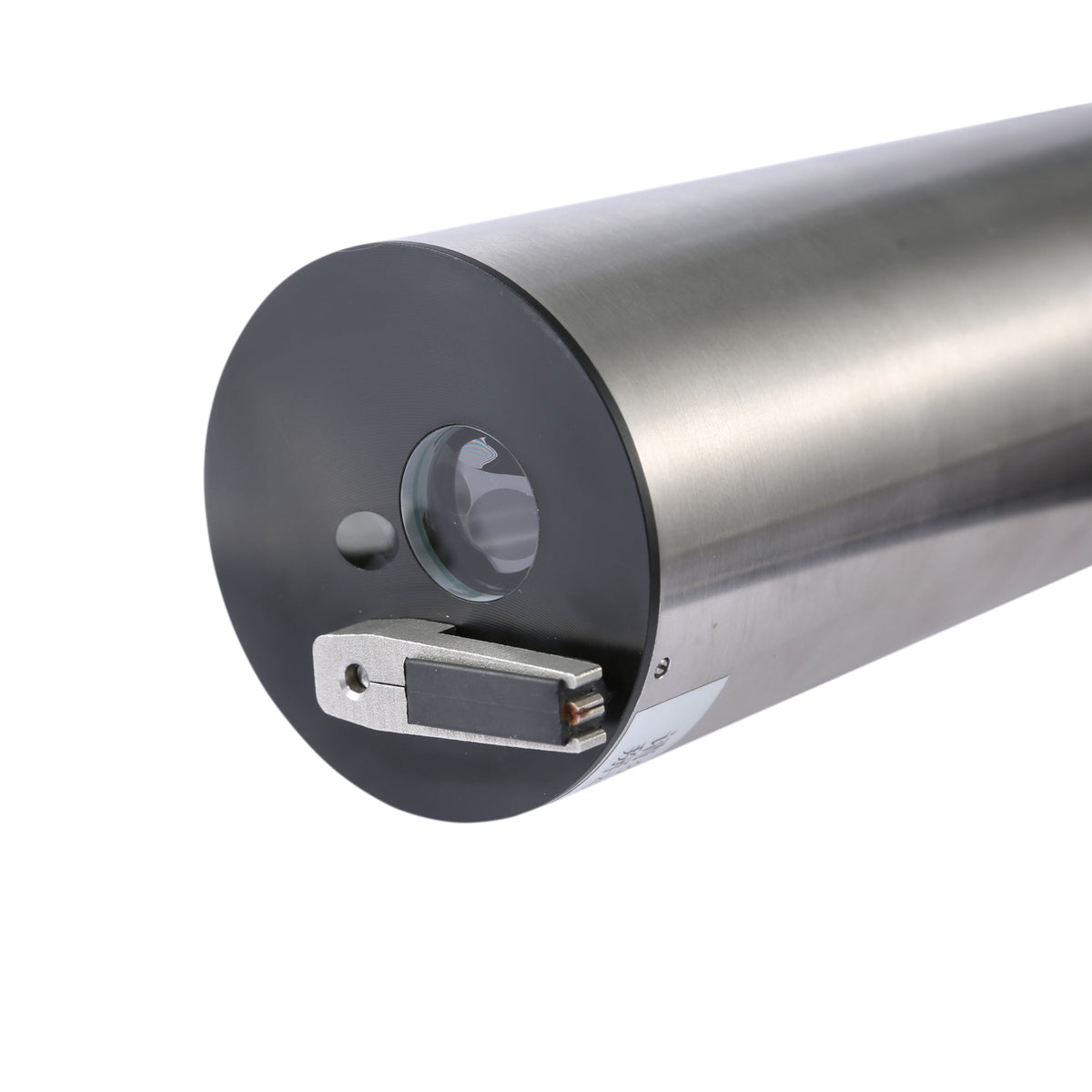

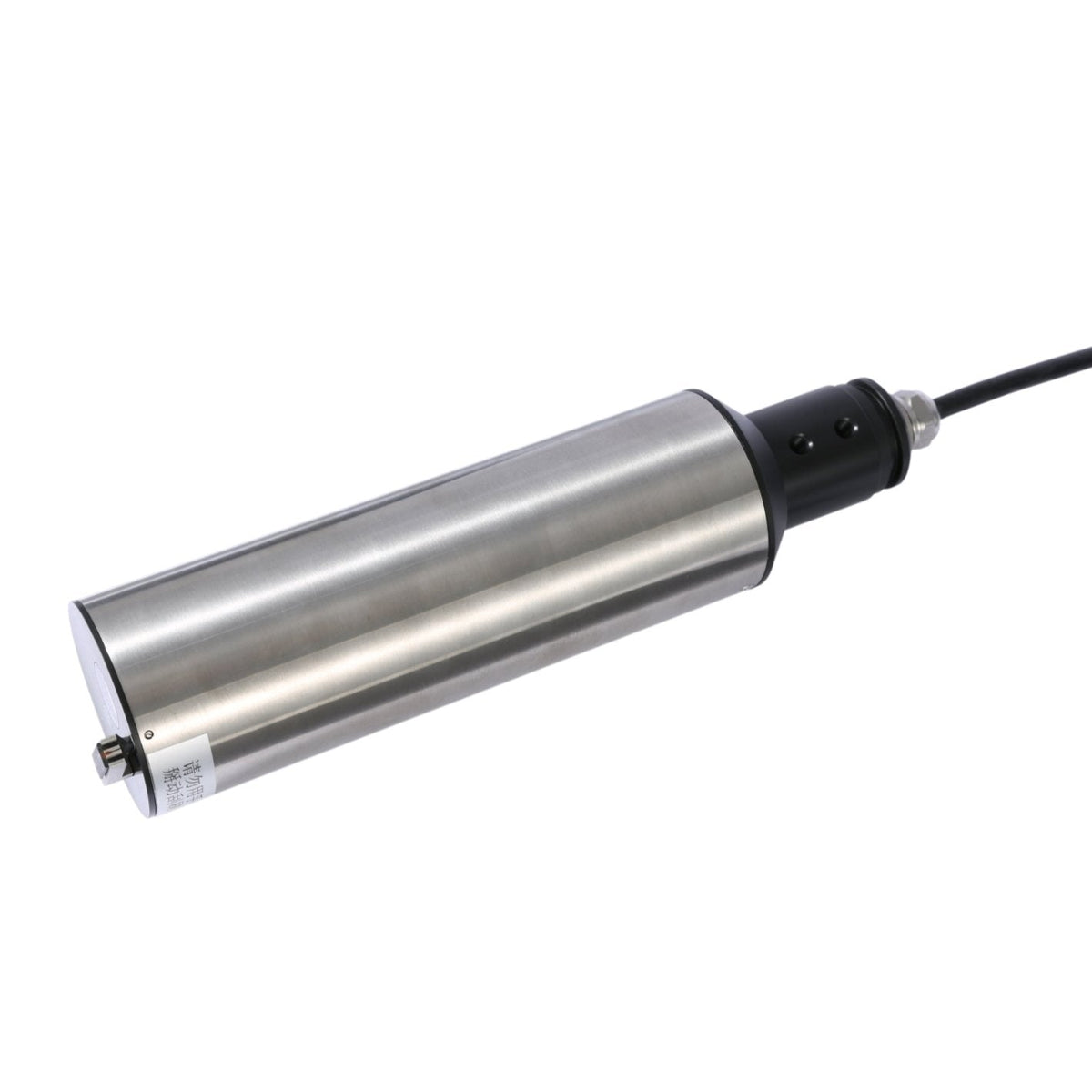

Online Turbidity Sensor
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
The Online Digital Turbidity Sensor uses an advanced light scattering method, combining infrared absorption and infrared scattering.
Infrared light emitted from the source interacts with suspended particles in the sample, and the resulting scattered light is detected by a photodetector. This is then converted to an electrical signal, processed to yield an accurate turbidity reading through analog and digital signal processing.
Applications:
-
Drinking Water Treatment
Ensure water meets regulatory standards. -
Wastewater Treatment
Monitor effluent quality. -
Environmental Monitoring
Assess the clarity of lakes, rivers, and streams. -
Industrial Processes
Maintain clarity in production lines, especially in food and beverage industries.
Key Features:
-
Accurate and Reliable
Provides consistent, precise measurements, ideal for laboratory and field use. -
Advanced Technology
Utilizes high-precision sensors for reliable data, ensuring experimental integrity. -
User-Friendly Interface
Simple, intuitive controls make it easy to operate for professionals and researchers. -
Durable Construction
Designed to withstand demanding laboratory conditions, offering reliable, long-lasting performance. - Included self-cleaning wiper
Ordering Notes:
1. All Sper Inline Water Quality Meters and Sensors are sold separately - one of each is required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
| Measuring Range | 0.01-100 NTU，0.01－4000 NTU |
| Resolution | 0.01 NTU |
| Accuracy | Less than the measured value of ±1%, or ±0.1NTU，whichever is larger |
| Pressure Range | ≤0.4Mpa |
| Current Speed | ≤2.5m/s, 8.2ft/s |
| Calibration | Sample calibration, slope calibration |
| Sensor Main Material | Body: SUS316L + PVC（normal type), SUS316L Titanium + PVC（sea water type)；O type circle：Fluorine rubber； cable：PVC |
| Power Supply | 12V |
| Communication Interface | MODBUS RS485 |
| Temperature Storage | 5 to 149º F (-15 to 65℃) |
| Working Temperature | 32 to 113ºF (0 to 45℃) |
| Size | 2.3 x 10 inches (60mm x 256mm) |
| Weight | 3.6lbs. (1.65kg) |
| Protection Grade | IP68/NEMA6P |
| Cable Length | Standard 10m cable, can be extended to 100m |
Downloads
