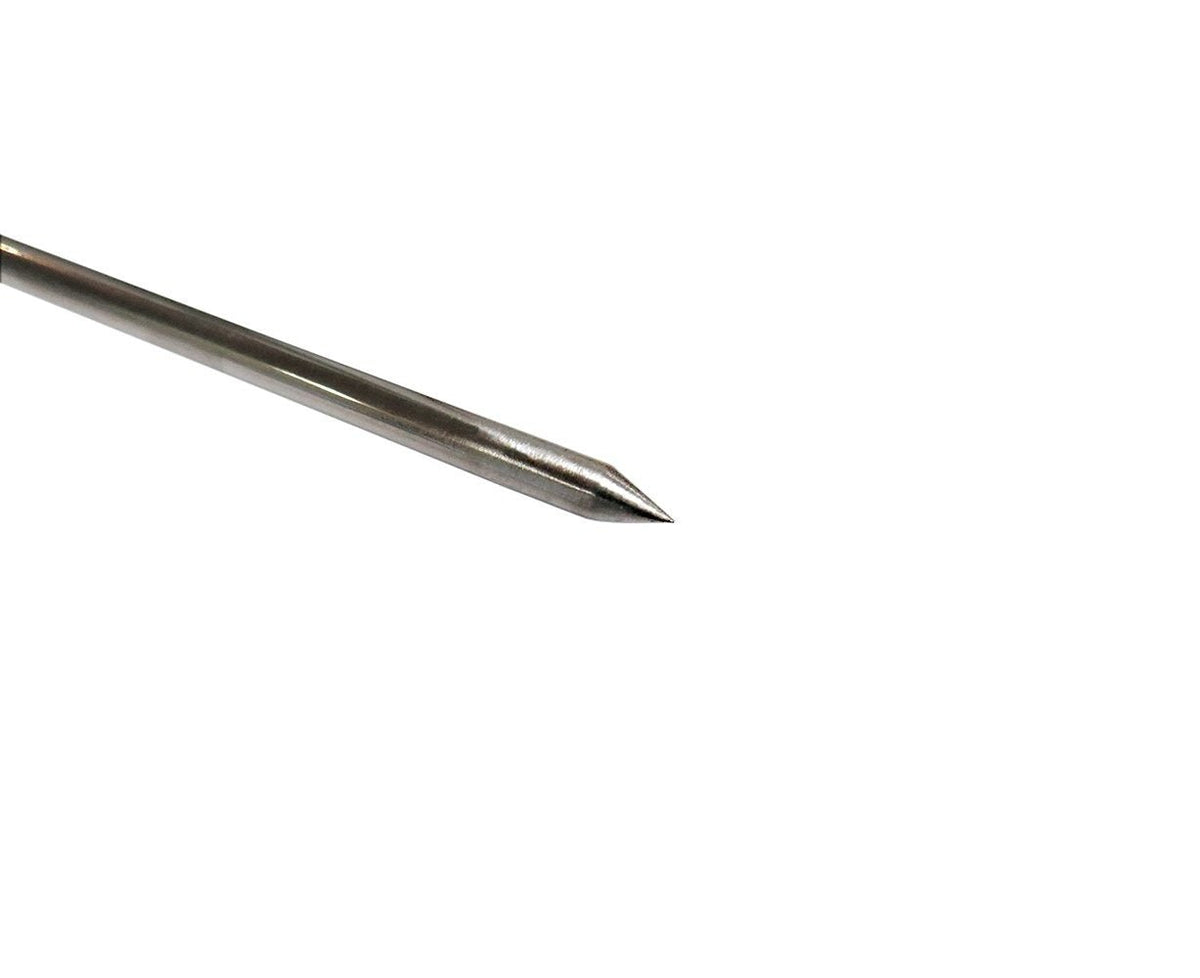

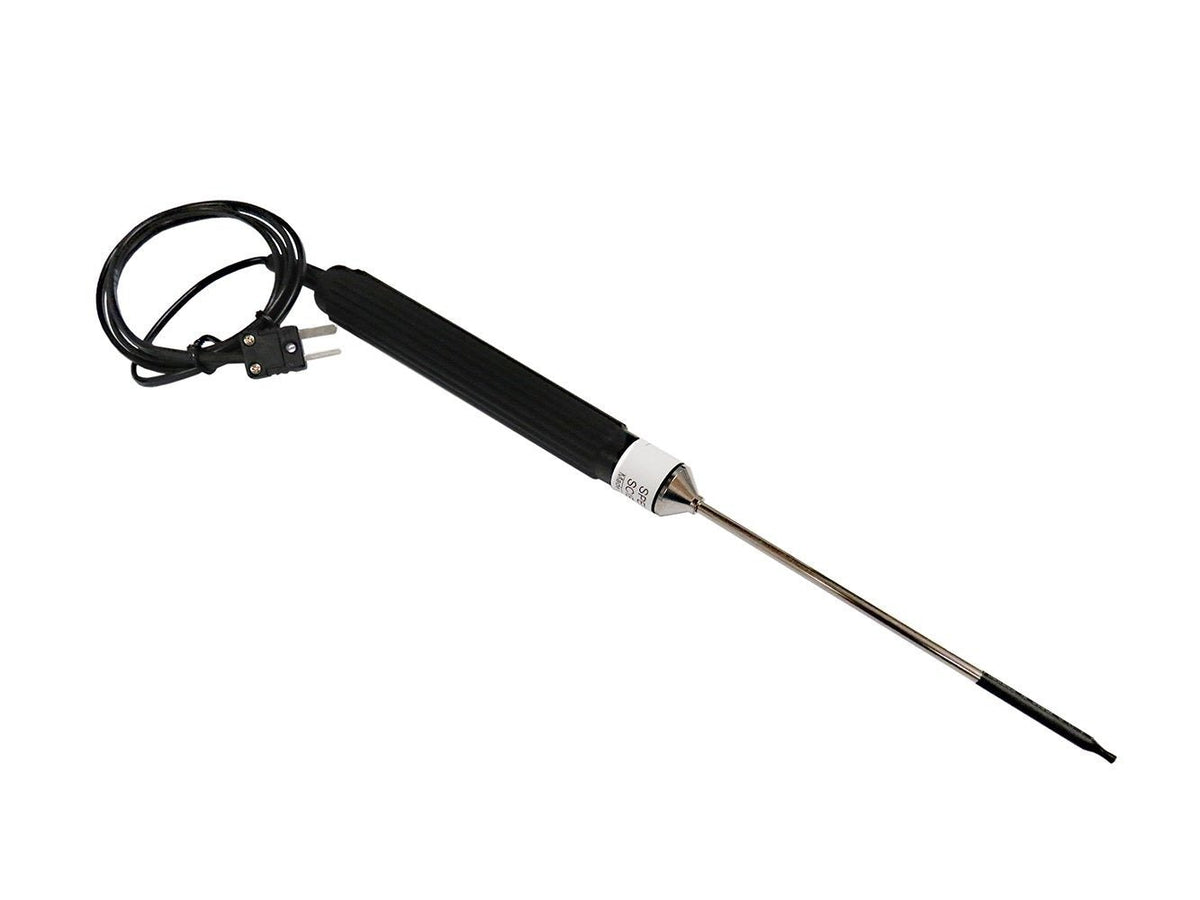

Type J Penetration Thermometer Probe
Download
Download
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
Specifications
| Penetration Probe | |||
|---|---|---|---|
| Type | Application | Temperature Range | Dimensions |
| J | Large | -50 to 400ºC -58 to 752ºF |
Handle Length: 5.5" (140 mm) Probe Length: 4.8" (121 mm) Probe Diam: 3 mm Cord Length: 42" |
Comparison Chart
Couldn't load pickup availability
Product Information
Product Information
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
Specifications
| Penetration Probe | |||
|---|---|---|---|
| Type | Application | Temperature Range | Dimensions |
| J | Large | -50 to 400ºC -58 to 752ºF |
Handle Length: 5.5" (140 mm) Probe Length: 4.8" (121 mm) Probe Diam: 3 mm Cord Length: 42" |
Comparison Chart
Description
Description
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Category: Thermocouples
