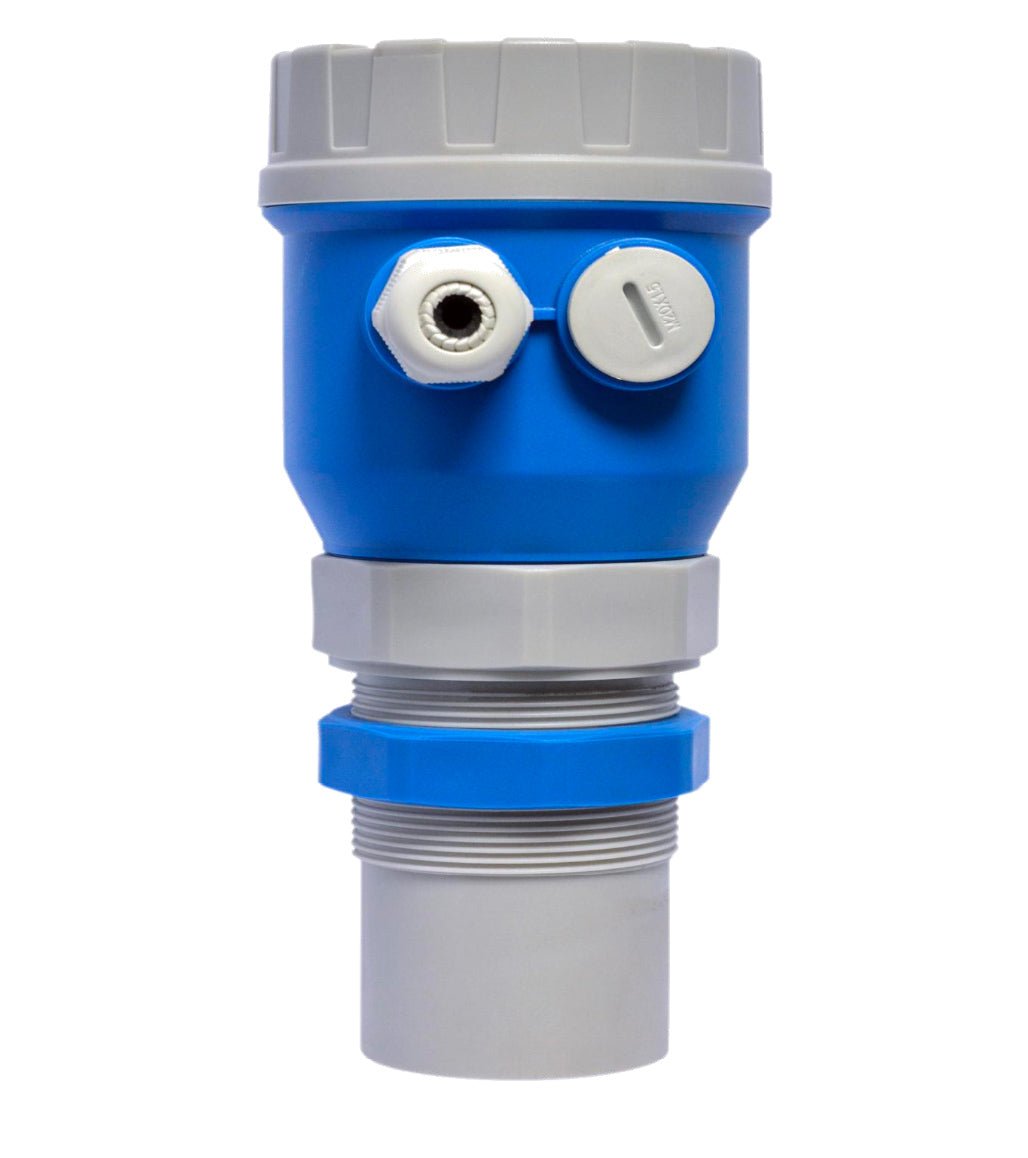

Integrated Ultrasonic Level Meter
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
The Ultrasonic Level Meter combines the strengths of various level measurement instruments into a fully digital and user-friendly system.
It offers reliable level monitoring, seamless data transmission, and intuitive human-machine interaction. With robust anti-interference capabilities, customizable upper and lower limits, and online output adjustments, it supports on-site display and multiple output options, including analog, switching and RS485 for easy integration with control systems.

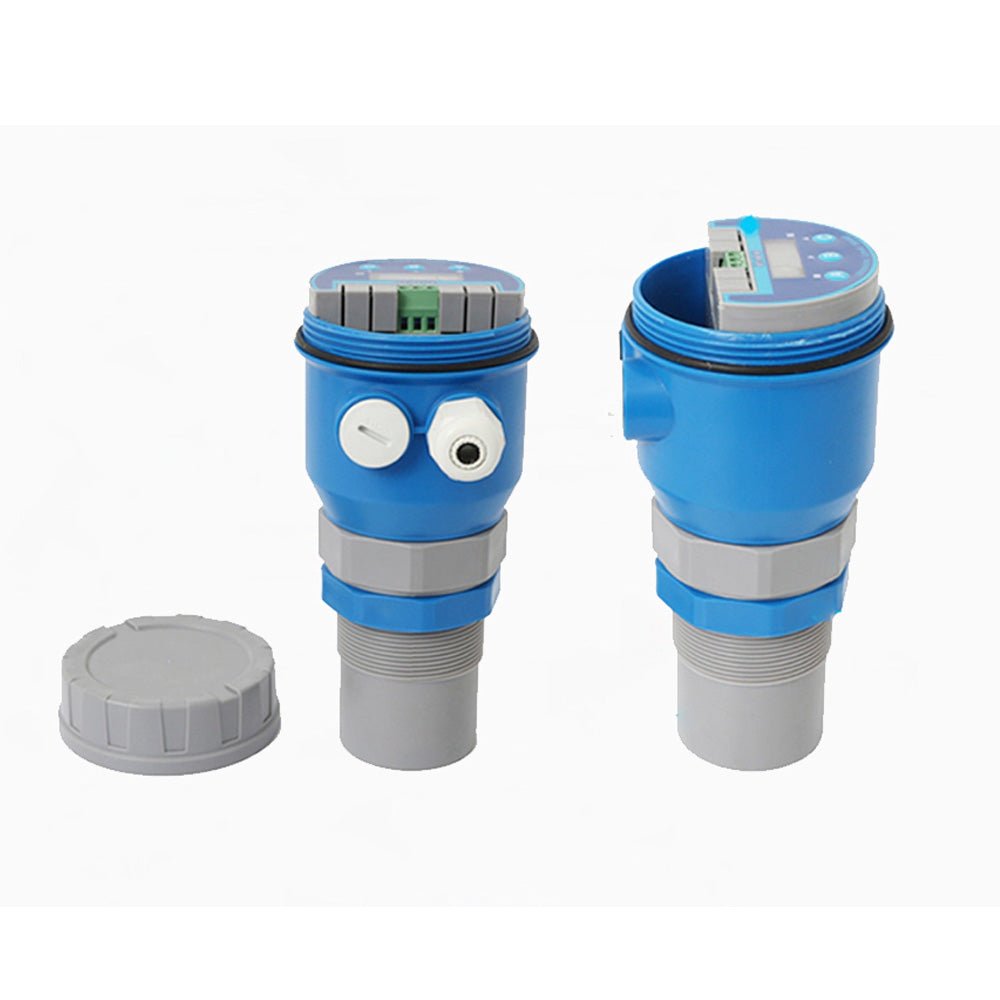

Constructed with a waterproof engineering plastic cover and ABS probe, it suits diverse level measurement applications. Additional modules like RS485 and current output can be added for enhanced compatibility with PLCs. Key features include wide DC12-24V voltage range, parameter backup and recovery, flexible analog output adjustment, filter settings to eliminate noise, customizable serial data formats, and adjustable pulse intensity for measuring air gaps or liquid levels.
Key Features:
- DC12-24V wide work voltage
- Backup and recovery parameter set
- Free adjustment of the range of analog output
- Set a filter value to remove
- Custom serial port data format
- Measure measure air space or liquid level
- 1-15 transmitted pulse intensity depending on working conditions
Ordering Notes:
All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
| Range | 5, 8, 10, 12, 15m |
| Accuracy | ±0.3% |
| Blind Zone | ＜0.3-0.5m (different for range) |
| Display resolution | 1mm |
| Frequency | 20~350KHz |
| Power | 12-24VDC; consumption:<1.5W |
| Output | 4~20mA RL>600Ω(standard),1~5V\1~10V |
| Communication | RS485 |
| Relay | 2 NPN relays (AC: 5A 250V DC: 10A 24V) |
| Material | ABS |
| Dimension | Φ92mm × 198mm × M60 |
| Protection | IP65 (others optional) |
| Connection | Electrical interface: M20X1.5, Installation: M60X2 or ￠61MM |
