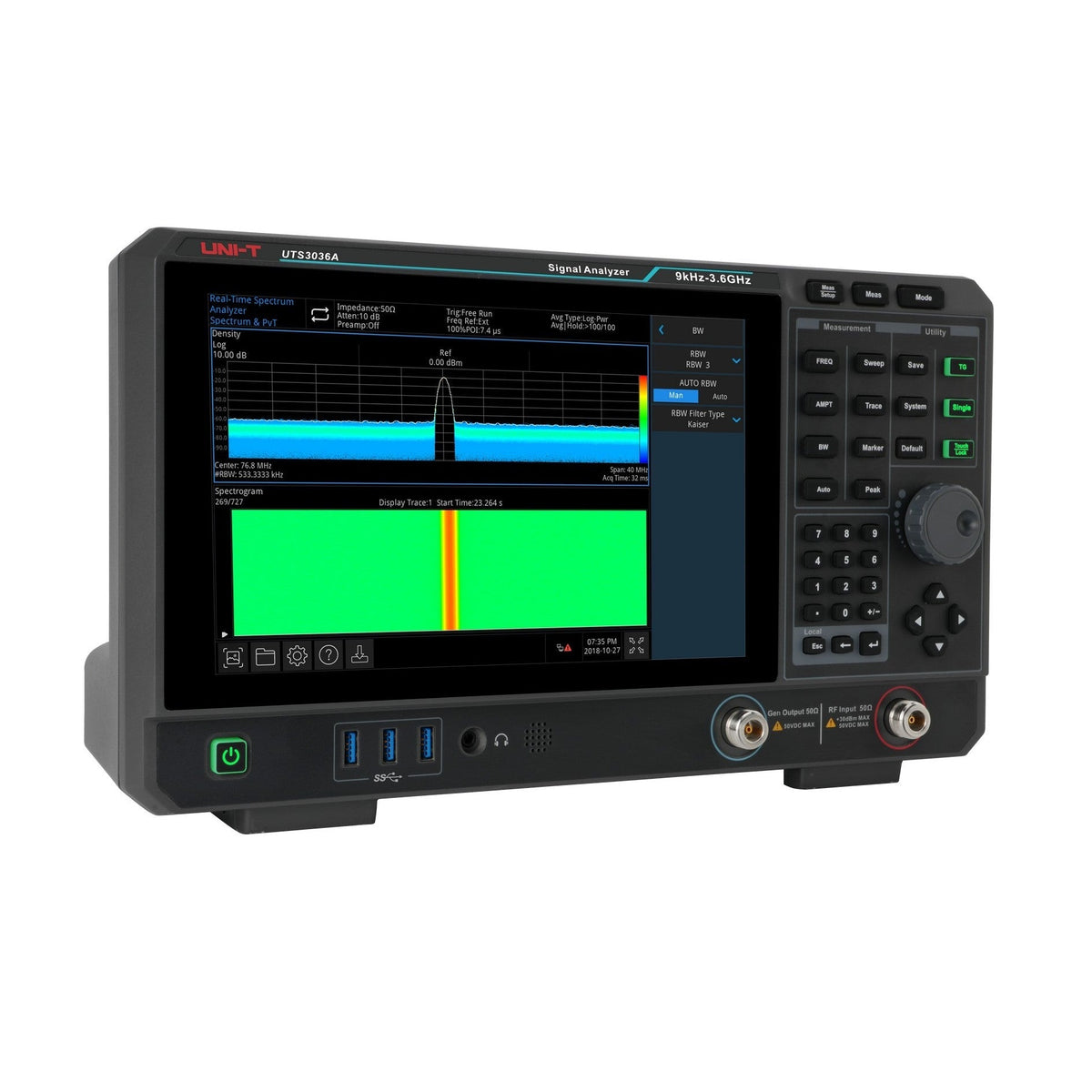

UNI-T UTS3036A Signal Analyzer | 3.6 GHz Real-Time Spectrum + VNA + Tracking Generator

The UNI-T UTS3036A is a 3.6 GHz real-time signal analyzer with built-in vector network analyzer (VNA) and tracking generator — a different class of instrument from a swept-spectrum analyzer, sized for advanced RF design, EMC engineering, and modulated-carrier characterization. Frequency coverage runs 9 kHz to 3.6 GHz with 1 Hz resolution; minimum resolution bandwidth is 1 Hz; maximum resolution bandwidth is 10 MHz; typical displayed average noise level reaches -165 dBm/Hz (200 MHz to 1.5 GHz, preamp on); and phase noise runs -100 dBc/Hz typical at 10 kHz offset. The 10.1-inch 1280 × 800 capacitive multi-touch display surfaces real-time, swept, VNA, and (with optional licenses) demodulation modes without burying them behind soft-key paths.

The UTS3000A is built around three architectural pillars that swept-spectrum analyzers do not have: real-time spectrum analysis, vector network analysis with S11/S21, and digital signal demodulation. Real-time spectrum is standard at 10 MHz bandwidth (extendable to 40 MHz with the optional UTS3000A-B40 license), with 100% probability-of-intercept guaranteed at 6.68 µs minimum signal duration — transient emissions, frequency-hopping radios, and intermittent EMI events that fall between sweeps on conventional analyzers are captured deterministically. The VNA covers 100 kHz to 3.6 GHz with 80 dB S21 dynamic range and >40 dB S11 directivity after calibration — the reflection bridge is internal, no external bridge accessory is required. Digital demodulation (optional UTS3000A-VSA) covers ASK, FSK, PSK, QAM, MSK, and DPSK with EVM measurement. The UTS3036A is the entry point into the Performance Series for engineering teams whose measurement workload has outgrown swept-spectrum capability.

• Frequency Coverage: 9 kHz to 3.6 GHz signal analysis
• Real-Time Spectrum (Standard): 10 MHz default; 40 MHz optional with UTS3000A-B40
• Built-In VNA (Standard): S11 + S21, Smith chart, polar coordinates (100 kHz to 3.6 GHz)
• Tracking Generator (Standard): 100 kHz to 3.6 GHz, output -40 to 0 dBm
• Sensitivity: DANL -165 dBm/Hz typical (200 MHz to 1.5 GHz, preamp on)
• Phase Noise: -100 dBc/Hz typical at 10 kHz offset
• Resolution Bandwidth: 1 Hz to 10 MHz in 1-3-10 steps
• Sweep Resolution: 40,001 sweep points; minimum RBW 1 Hz
• Multi-Trace Display: 12 real-time / 6 swept simultaneous traces
• Frequency Mask Trigger: FMT for transient and episodic signal capture
• Display: 10.1-inch 1280 × 800 capacitive multi-touch HD
• Connectivity: USB-Host, USB-Device, LAN (VXI-11), HDMI, 10 MHz reference in/out
• Programmability: SCPI over USB-TMC, Socket, VXI-11; WebServer; LabVIEW; NI-VISA
• Optional Packages: B40, AMK, EMI, AMA, VSA (digital demod), I/Q Analyzer

Detailed Features

Frequency Coverage (9 kHz to 3.6 GHz)

The UTS3036A covers 9 kHz to 3.6 GHz with 1 Hz frequency resolution — the entry into the Performance Series’ real-time + VNA architecture. The range covers all sub-3.6 GHz cellular bands, the lower portion of 5G NR n77 (3.3–4.2 GHz) and n78 (3.3–3.8 GHz), Wi-Fi 6 in the 5 GHz lower allocation, the 2.4 GHz Wi-Fi/Bluetooth ISM band, and the entire CISPR-32 radiated-emissions range (30 MHz to 1 GHz) with substantial headroom for harmonic content. Tracking generator and VNA modes both cover the full 100 kHz to 3.6 GHz range, supporting stimulus-response measurement across the analyzer’s entire frequency reach.

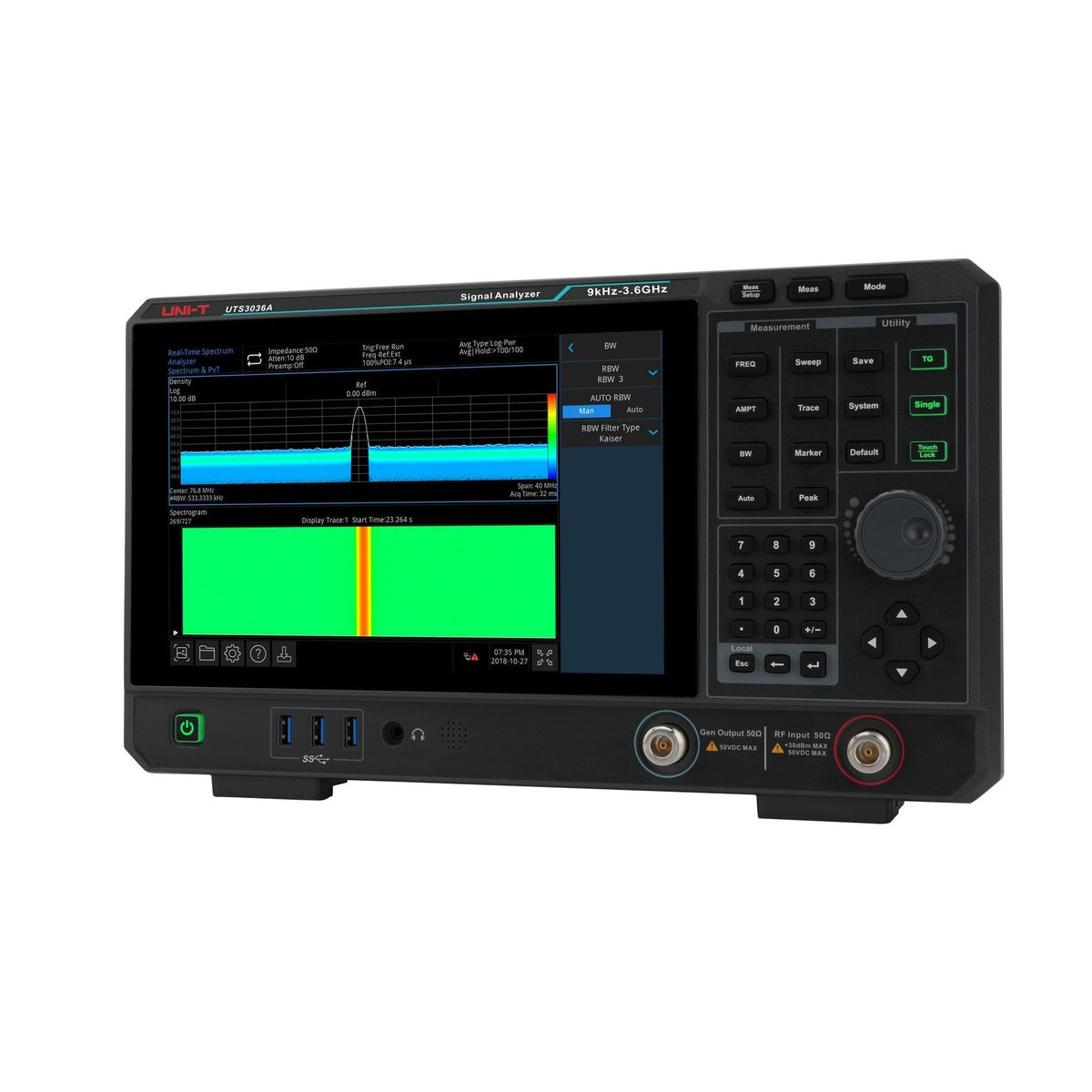

Real-Time Spectrum Analysis (Standard)

Real-time spectrum analysis is included as standard, not as an option or upsell. Default real-time bandwidth is 10 MHz; the optional UTS3000A-B40 license extends this to 40 MHz. The signature display mode is the density spectrogram — consecutive FFT frames overlaid with probability-density coloration, surfacing low-amplitude signals hidden under stronger ones and revealing time-frequency structure that swept measurement collapses into a single trace. Maximum sampling rate 51.2 MSa/s; FFT rate 146,253 frames/second nominal; 12 simultaneous traces (vs. 6 swept). Eight display modes cover Normal, Density, Spectrogram, PvT, PvT Spectrum, PvT Spectrogram, Powergram, Powergram Spectrogram. The 100% probability-of-intercept minimum signal duration is 6.68 µs at 40 MHz span (default Kaiser window) — a guaranteed-capture spec swept analyzers fundamentally cannot match.

Built-In VNA: S11 + S21 (100 kHz to 3.6 GHz, Standard)

Vector network analysis is included as standard, not as a separate instrument or option. S11 reflection and S21 transmission cover 100 kHz to 3.6 GHz with 80 dB S21 dynamic range and >40 dB S11 directivity after calibration. Display formats include logarithmic and linear amplitude, phase, group delay, SWR, real and imaginary parts, Smith chart (multiple variants), and polar coordinate. Mechanical calibration: Open, Short, Load, Through, Custom — supported by the UT-3009F/M cal kit (DC to 9 GHz). 101 to 10,001 measurement points (default 201); 10 markers; IF bandwidth 100 Hz to 1 MHz. The reflection bridge is internal — no external bridge accessory required.

Frequency Mask Template Trigger (FMT)

The Frequency Mask Template (FMT) trigger captures episodic and transient signals that exceed a user-defined spectral mask. Mask types: Upper, Lower, Both. Trigger criteria: Enter, Leave, Inside, Outside, Enter-Leave, Leave-Enter — supporting both threshold-crossing and dwell-time qualification. Combined with the real-time spectrum mode and 6.68 µs 100% POI minimum signal duration, FMT captures intermittent emissions, transient interference, and frequency-hopping transitions that fall between sweeps on a swept-spectrum analyzer. For radar pulse analysis, EMI event capture, and protocol-state spectral characterization, FMT is the trigger architecture that turns rare events into reliable measurements.

Digital Signal Demodulation (UTS3000A-VSA Option)

The optional UTS3000A-VSA Vector Signal Analyzer license adds digital demodulation across the modulation-scheme set used in modern radio: ASK (2/4/8/16), FSK (2/4/8/16), PSK (BPSK, QPSK, OQPSK, 8PSK), DPSK, QAM (16/32/64/128/256), and MSK. Symbol error statistics include EVM (rms and peak), magnitude error, phase error, IQ offset, carrier offset, SNR, quadrature error, and gain imbalance. Display formats: constellation diagrams, IQ time-domain plots, eye diagrams (I and Q), and error-vector time/frequency-domain views. Measurement filters: Raised Cosine, RRC, Gaussian, EDGE, CDMA, rectangular; symbol length 10 to 4,096; over-sampling rates 4 through 20. For modulated-carrier characterization where the question is signal quality on a bench-grade radio design, the VSA option replaces a separate vector signal analyzer instrument.

Sensitivity for Weak-Signal Detection (DANL -165 dBm/Hz typ.)

Displayed average noise level (DANL) reaches -165 dBm/Hz typical with the preamplifier engaged in the 200 MHz to 1.5 GHz band, and -166 dBm/Hz typical at 10 MHz to 200 MHz — the deepest sensitivity in the Performance Series. Across band, typical preamp-on DANL tracks from -153 dBm/Hz at 1–10 MHz to -158 dBm/Hz at the 7.5–8.4 GHz upper edge. With 0 dB attenuation, 1 Hz RBW, sample or average detection, and average >50, the noise floor supports detection of the low-amplitude phenomena that distinguish a quiet design from a marginal one — weak spurious emissions on power amplifiers, low-microwave harmonic content from wide-bandgap power stages, and modulated-carrier signal-integrity work.

EMI Pre-Compliance Testing (UTS3000A-EMI Option)

The optional UTS3000A-EMI package adds CISPR-specification resolution bandwidths (200 Hz, 9 kHz, 120 kHz, 1 MHz at −6 dB), quasi-peak and EMI-average detectors, and built-in limit masks for the major regulatory standards (AS-NZS, BellCore, DEF-STAN, DO-160, EN, FCC, GB9254, MIL-461, VCCI; plus custom limits). Scan workflow supports Scan-Search-Measure with signal-table reporting. Combined with the optional UTS-EMI01 near-field probe kit (four probes covering 30 MHz to 3 GHz), the analyzer supports radiated-emission pre-compliance measurement on the engineering bench — useful for catching mitigation needs before the compliance lab visit.

Comprehensive Interface Set

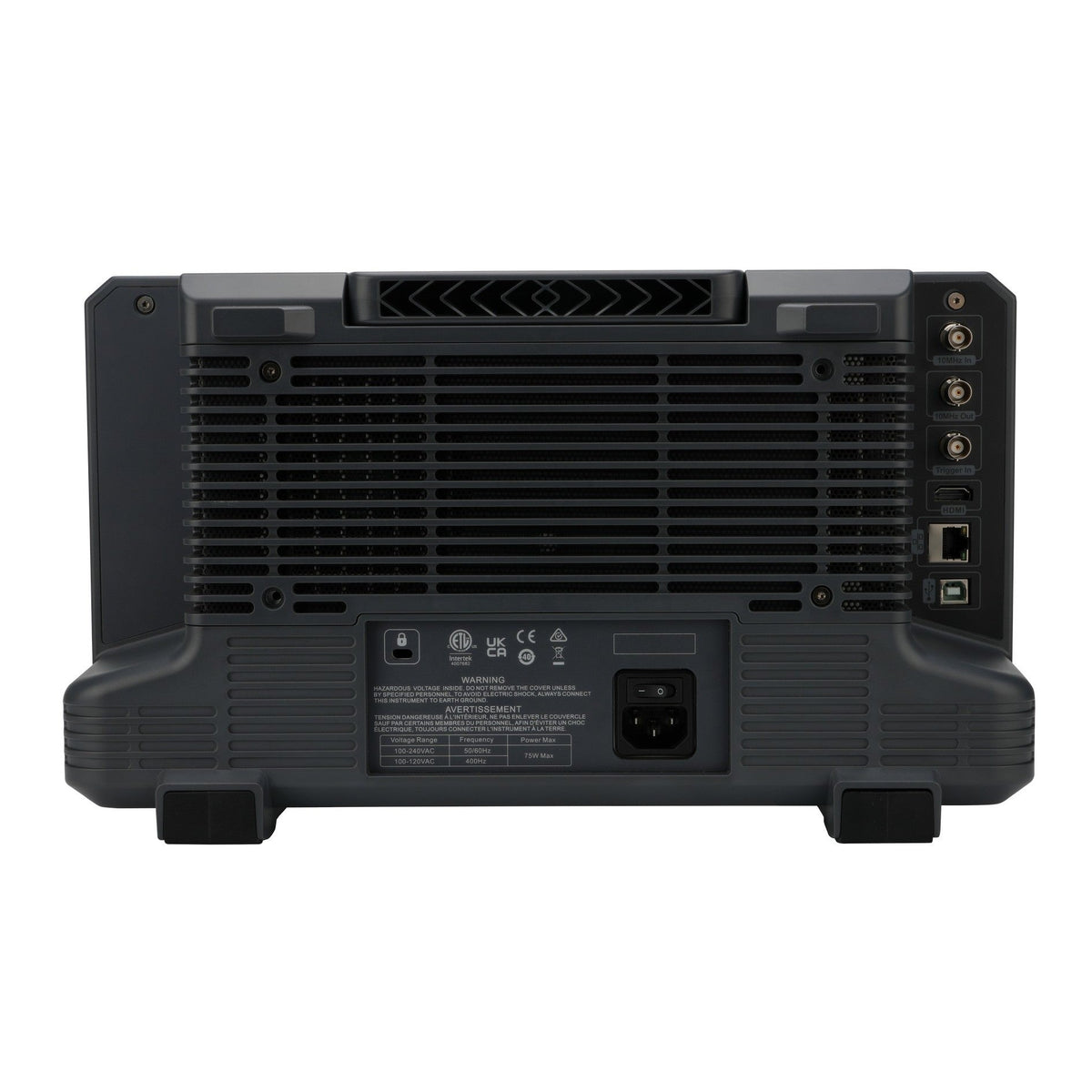

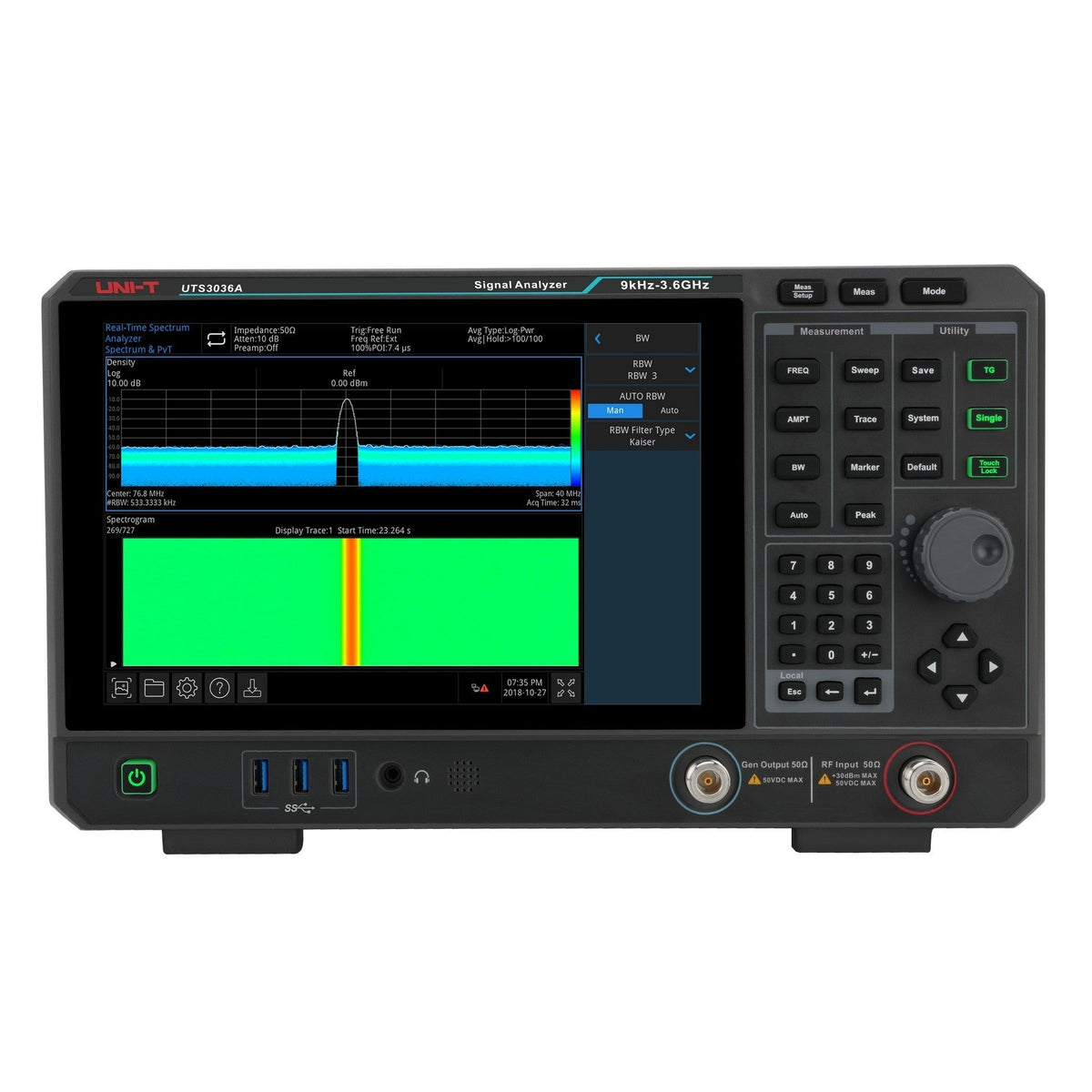

Front-panel interfaces include the RF input (50 Ω, N-type female) and the tracking-generator source output (50 Ω, N-type female). The 10.1-inch capacitive multi-touch display is also front-panel. Rear-panel interfaces support automated test integration: HDMI 1.4 video output for an external monitor; USB-Host (USB-A) for thumb-drive screenshot/data export and firmware update; USB-Device (USB-B) for direct PC connection over SCPI; LAN (VXI-11, 10/100/1000 Base, RJ-45) for network-based remote control; 10 MHz reference input/output (BNC, 50 Ω) for synchronization with other instruments; external trigger input (TTL, BNC); and audio output (3.5 mm). SCPI is supported over both USB and LAN.

SCPI, WebServer, and Multi-Platform Remote Control

Remote control supports SCPI over USB-TMC, Socket, and VXI-11; web-browser access through the built-in WebServer (PCs and mobile phones); LabVIEW and NI-VISA driver compatibility; and the UNI-T Device Manager software (V2.5.0 and higher) for instrument management over LAN or USB flash drive. The WebServer enables remote viewing, trace-data export, and SCPI control without installing a driver — useful for distributed test setups and for remote bench monitoring during long-duration EMC sweeps. The 10.1-inch capacitive multi-touch HD display (1280 × 800 native, RGB vertical pixel layout) provides the local user interface with drag-to-pan, pinch-to-zoom, and tap-to-place-marker gesture support.

Applications

Advanced RF Design and 5G NR Characterization

For RF design and characterization spanning sub-3.6 GHz cellular, the lower portion of 5G NR n77 (3.3–4.2 GHz) and n78 (3.3–3.8 GHz), Wi-Fi 6 in the 5 GHz lower allocation, and the entire CISPR-32 radiated-emissions range (30 MHz to 1 GHz) with substantial headroom, the UTS3036A delivers real-time spectrum, VNA, and tracking-generator capability on one bench at the entry point of the Performance Series.

EMC Pre-Compliance and Power-Electronics EMI

For switching-converter EMI characterization on GaN and SiC power stages where broadband emissions span 150 kHz to 1 GHz, the real-time spectrum mode catches transient switching events that swept analyzers miss, and the built-in VNA characterizes EMI filter networks, ferrite chokes, and snubber circuits with S11/S21 sweeps and Smith-chart visualization.

VNA Component Characterization and Network Analysis

For component characterization — filters, antennas, amplifiers, transmission lines — the built-in VNA with S11 reflection and S21 transmission measurement eliminates the separate scalar-network-analyzer and reflection-bridge instruments previously needed at the bench. The 100 kHz to 3.6 GHz VNA range, with the UT-3009F/M calibration kit (DC to 9 GHz), supports full vector characterization across the analyzer’s spectrum reach.

Accessories & In the Box

Standard Accessories

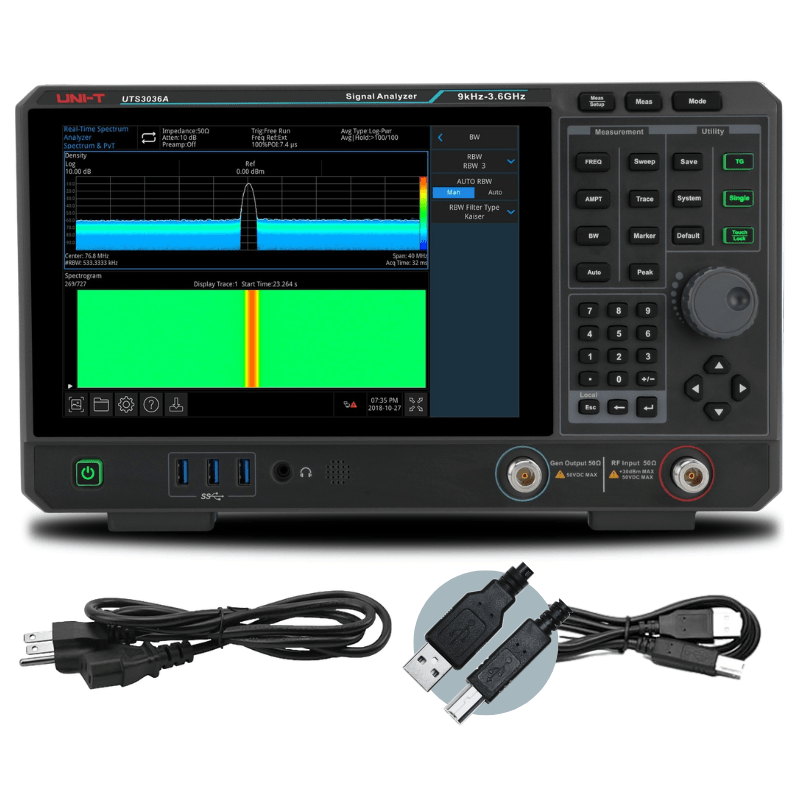

• Power cord × 1
• UT-D14 USB cable × 1
• UTS3036A signal analyzer (instrument)

Recommended Optional Accessories

• UT-3009F/M VNA Calibration Kit — recommended pairing for VNA mode (DC to 9 GHz; supports Open/Short/Load/Through mechanical calibration).
• UTS3000A-B40 — extends real-time bandwidth from 10 MHz to 40 MHz (license-key unlock).
• UTS3000A-AMK Advanced Measurement Kit; UTS3000A-EMI EMI Pre-Compliance; UTS3000A-AMA Analog Demodulation; UTS3000A-VSA Vector Signal Analyzer (digital demod); UTS3000A-I/Q I/Q Analyzer — license-key software unlocks (see FAQ for capability summary).
• UTS-EMI01 Near-Field Probe Kit — four probes covering 30 MHz to 3 GHz for radiated-emission scouting.
• UT-CK01 Cable and Adapter Accessory Kit — SMA-N adapters and cables for general RF bench work.
• UTS-T01 / UTS-T02 Antenna Pairs — Wi-Fi/Bluetooth (2400–2500 MHz) and cellular-band (824–960 / 1710–1990 MHz) antenna pairs.

Frequently Asked Questions

What is the tracking generator and VNA frequency range?

On the UTS3036A, both the tracking generator and the VNA cover 100 kHz to 3.6 GHz — the full spectrum range of the analyzer. TG output adjusts -40 to 0 dBm in 0.5 dB steps with ±3 dB flatness referenced to 50 MHz. VNA mode supports S11/S21 with 80 dB S21 dynamic range and >40 dB S11 directivity after calibration. The reflection bridge is internal — no external bridge required. The recommended cal kit is the UT-3009F/M (DC to 9 GHz).

Does this analyzer support EMI pre-compliance testing?

Yes, with the optional UTS3000A-EMI package. EMI mode adds CISPR-specification resolution bandwidths (200 Hz, 9 kHz, 120 kHz, 1 MHz at −6 dB), quasi-peak and EMI-average detectors, a peak Scan-Search-Measure sweep workflow, and built-in limit masks for the major regulatory standards (AS-NZS, BellCore, DEF-STAN, DO-160, EN, FCC, GB9254, MIL-461, VCCI; plus custom limits). Combined with the optional UTS-EMI01 near-field probe kit (four probes covering 30 MHz to 3 GHz), the analyzer supports radiated-emission pre-compliance measurement on the engineering bench.

How does the UTS3000A differ from the UTS3000T+ family?

The UTS3000A and UTS3000T+ are different classes of instrument for different audiences. The UTS3000T+ is a swept-spectrum analyzer with optional analysis kits — sized for value-tier RF design, education, and pre-compliance EMI work. The UTS3000A is a Performance-Series real-time signal analyzer with built-in VNA and digital demodulation — sized for advanced RF design, professional EMC, and modulated-carrier characterization where capturing transient and modulated signals is the measurement workload.

Concrete differences: real-time spectrum is standard on the A (10 MHz, optionally 40 MHz with B40); the T+ has no real-time mode. VNA with S11/S21, Smith chart, polar coordinate is standard on the A; the T+ supports basic reflection only with an external bridge accessory. RBW range extends to 10 MHz on the A vs 3 MHz on the T+ flagship pair. Phase noise is -100 dBc/Hz typ at 10 kHz on the A vs <-98 dBc/Hz on the T+. Real-time traces support 12 simultaneous traces on the A vs 6 swept on the T+ flagship pair. The A also adds the Frequency Mask Template trigger (FMT) and the optional UTS3000A-VSA digital demodulation package — capabilities not available on the T+. Pricing reflects the architectural difference.

Specifications

Documentation

Options & Accessories

Included in box:

• Power cord
• USB2.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Software options (model number — description):

• UTS3000A-AMA — AM/FM Analog Demodulation Option
• UTS3000A-AMK — Advanced Measurement Kit Option
• UTS3000A-B40 — 40MHz Real-Time Analysis Option
• UTS3000A-EMI — EMI Pre-Compliance Measurement Option
• UTS3000A-FDD-LTE — FDD-LTE Demodulation Analysis Option
• UTS3000A-I/Q — I/Q Modulation Analysis Option
• UTS3000A-NR40 — UTS3000A-NR 5G 40MHz New Radio Analysis Option
• UTS3000A-PNM — Phase Noise Measurement option for UTS3000A series
• UTS3000A-TDD-LTE — TDD-LTE Demodulation Analysis Option
• UTS3000A-VSA — Vector Signal Analysis Demodulation Option
