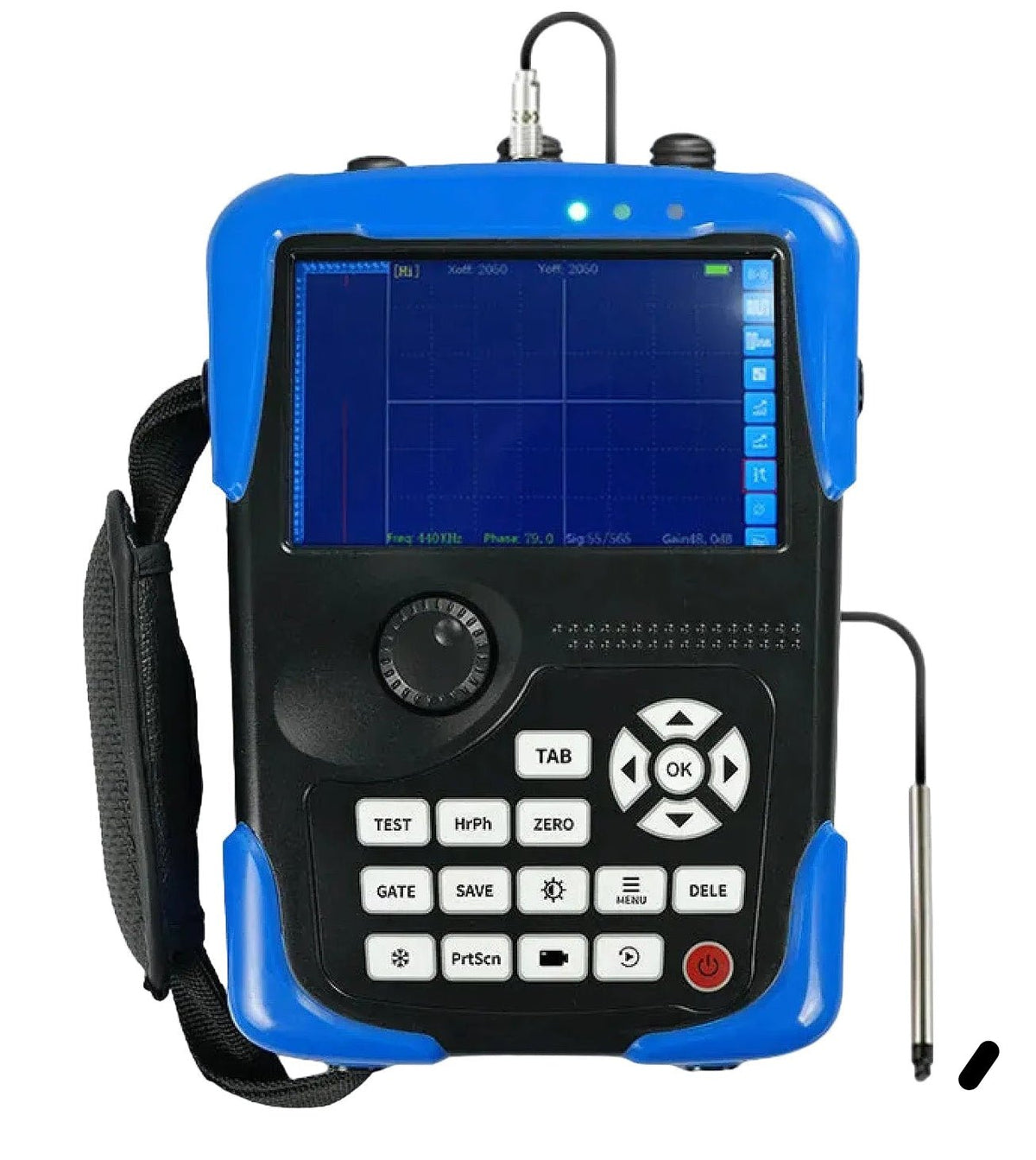

Digital eddy current flaw detector from BRK in a protective blue and black casing, featuring a display screen and control panel.

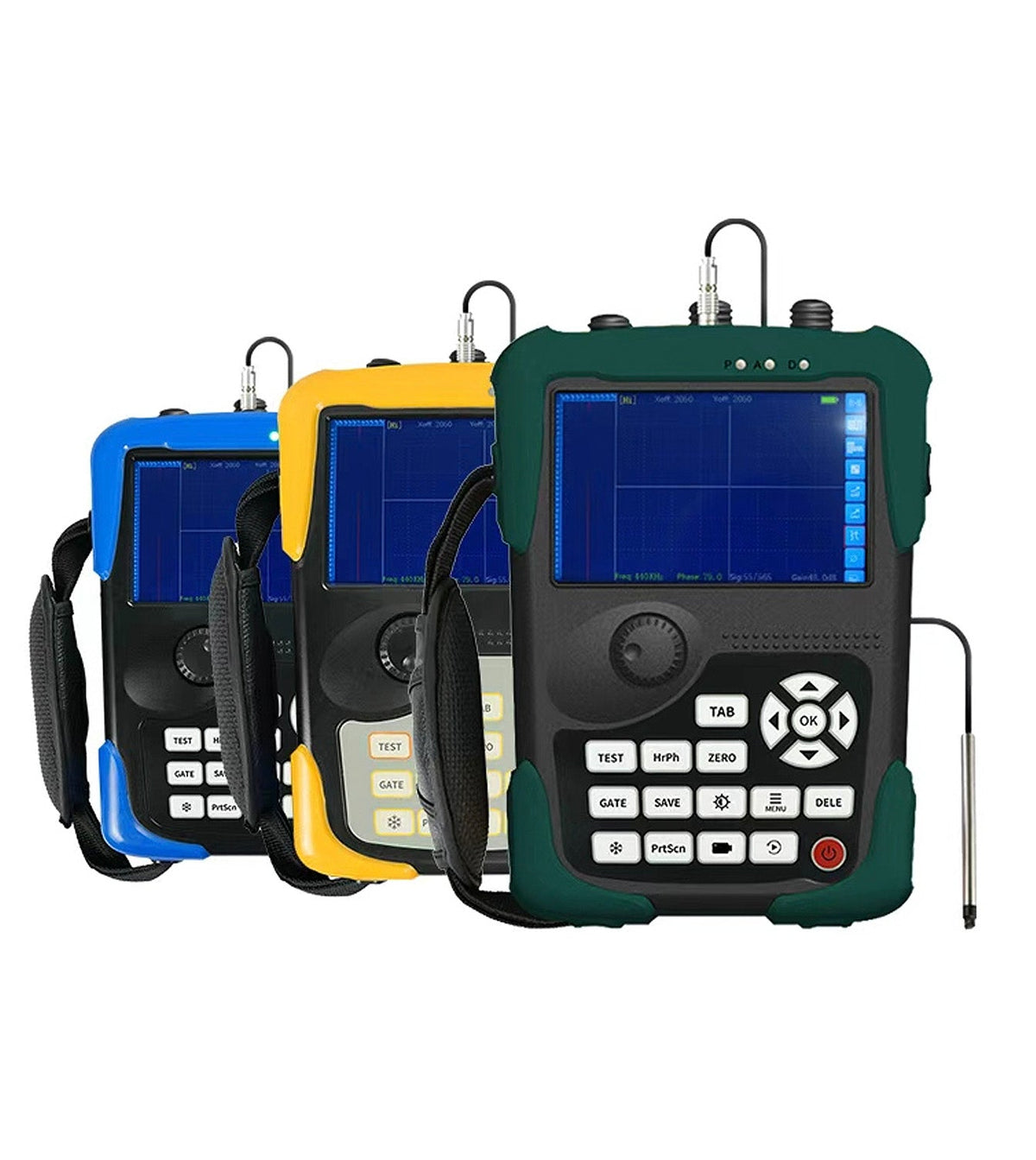

Digital eddy current flaw detectors by BRK in blue, yellow, and green protective cases with attached straps.

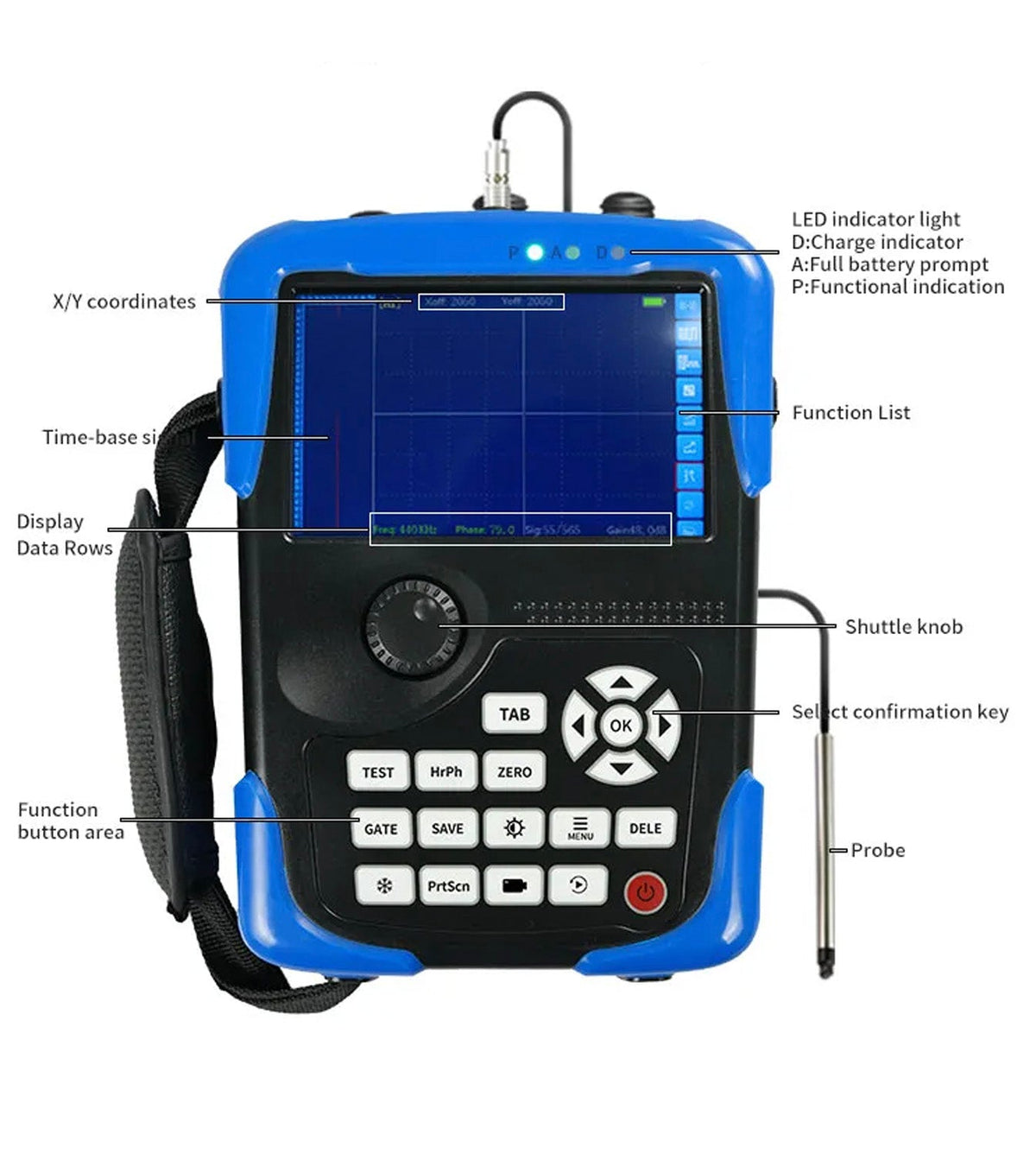

Digital ultrasonic flaw detector of the Vertex Series by BRK, featuring a blue and black housing with integrated display screen and function buttons.

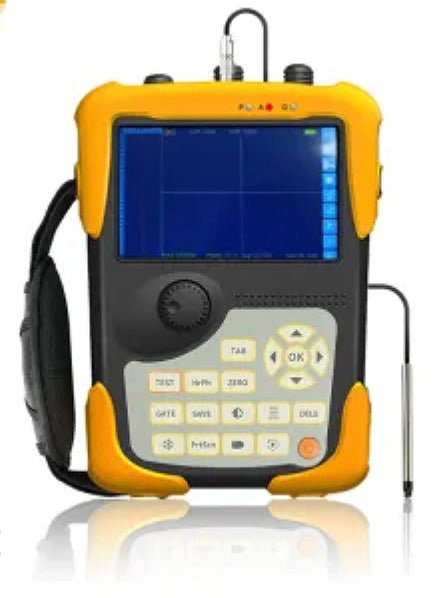

Digital ultrasonic flaw detector by BRK in a yellow and gray case, featuring a screen and control buttons.

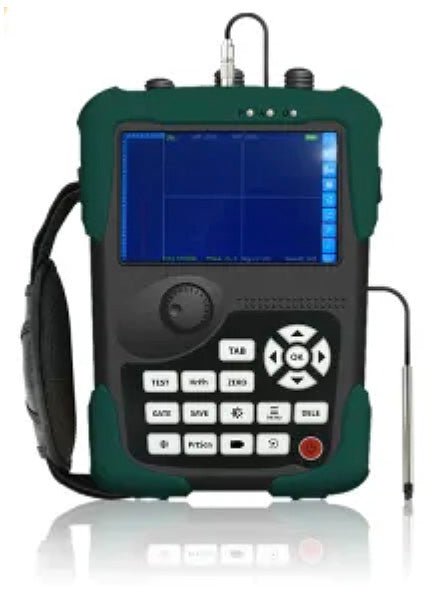

Digital eddy current flaw detector, vertex series from BRK, featuring a green protective case, button controls, and an attached antenna.

$Blue digital eddy current flaw detector by BRK, positioned amidst fractured concrete, with a reflective surface beneath.$

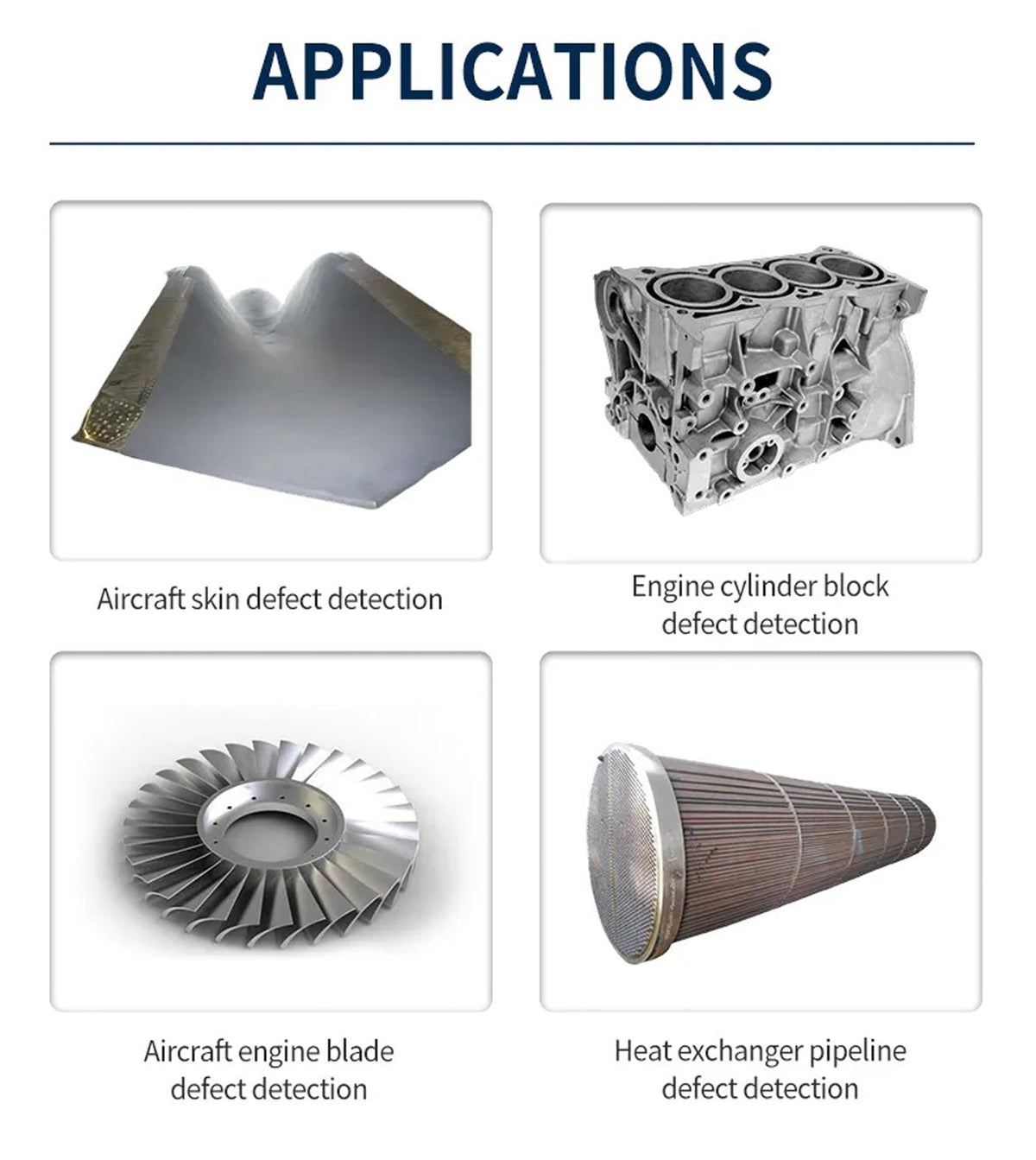

Applications of the ultrasonic flaw detector by BRK shown detecting aircraft skin defects, engine cylinder block defects, aircraft engine blade defects, and heat exchanger pipeline defects.

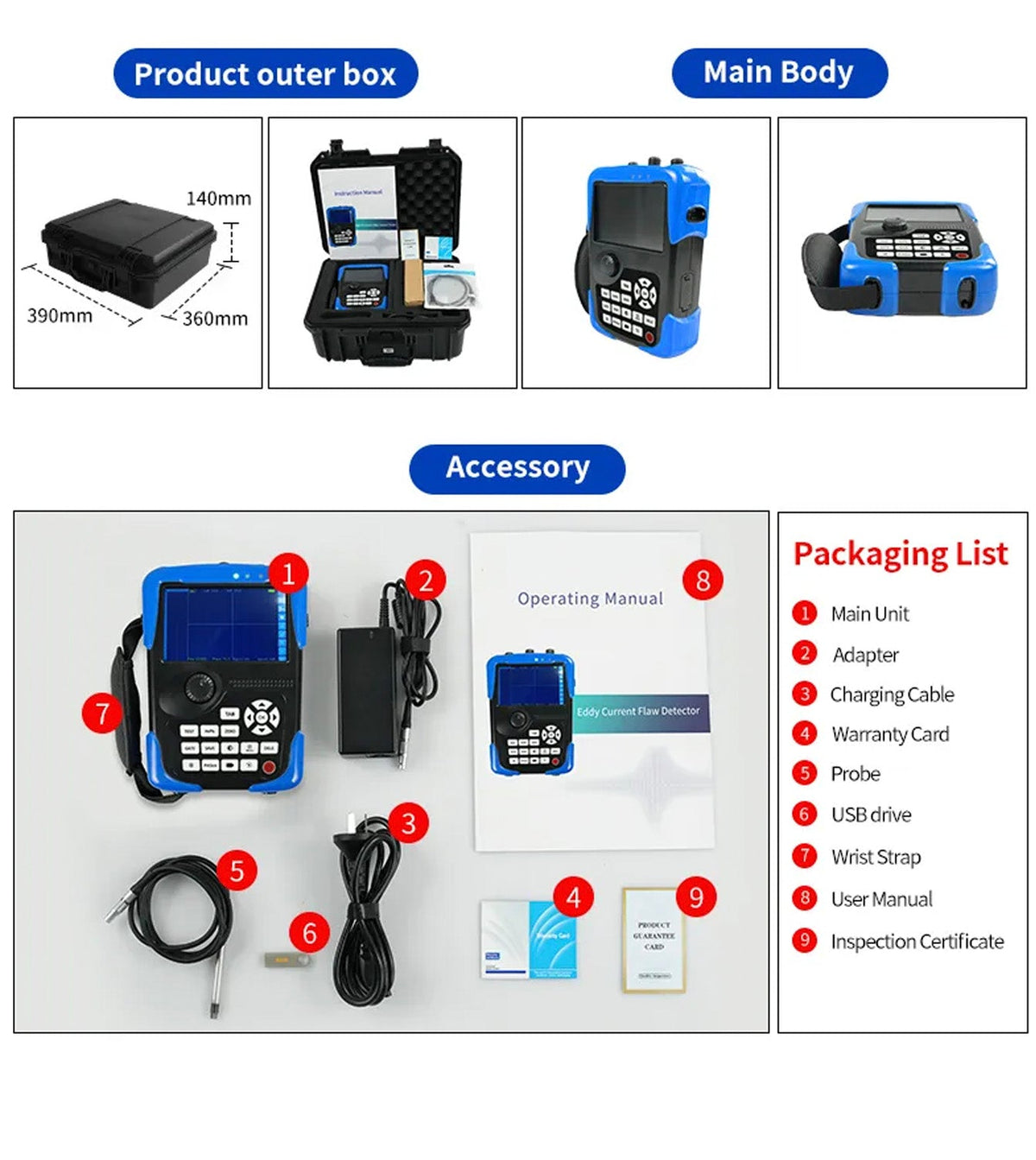

Digital eddy current flaw detector by BRK with accessories and packaging list, featuring a main unit, probe, and user manual.

$Blue digital eddy current flaw detector by BRK, positioned amidst fractured concrete, with a reflective surface beneath.$

The Vertex Series Digital Eddy Current Flaw Detectors are advanced, non-destructive testing (NDT) instruments engineered for fast, accurate detection of surface cracks, pores and defects in conductive metals.

All BRK meters and probes ship direct from the manufacturer and require 10-15 business days for shipping.

Designed for demanding industrial inspection, the Vertex60, Vertex80 and Vertex80A deliver high sensitivity and stable performance across a wide excitation frequency range, ensuring reliable results even on rough, scaled or machined surfaces.

With an intuitive interface and streamlined setup requiring minimal parameter adjustment, the Vertex Series is ideal for both routine inspections and advanced quality control applications in production and field environments.

Available Models: Vertex60 · Vertex80 · Vertex80A

Wide Frequency Range: Adjustable excitation frequency from 10 Hz to 12 MHz supports diverse inspection scenarios
High Gain Control: 0–50 gain with fine step adjustment enables precise defect signal amplification
Efficient Operation: One-key auto-zero and rapid setup with three parameters or fewer
Probe Compatibility: Supports bridge-type probes for flexible surface inspections
Large Storage Capacity: 8 GB memory with up to 10,000 pre-settable parameter configurations
Advanced Signal Processing: Noise suppression and defect signal extraction improve detection accuracy

Applications

Surface crack and defect detection in steel bars, plates and other conductive metal components
Quality control in manufacturing, aerospace, automotive and metalworking industries
Inspection of rough, coated or machined metal surfaces

Why Choose the Vertex Series?

Precision: High-frequency capability combined with adjustable gain ensures dependable flaw detection
Ease of Use: Simplified operation reduces training time and increases inspection efficiency
Durability: Designed for consistent performance in harsh industrial environments
Scalability: Multiple models and extensive preset storage support evolving inspection needs

Vertex Series Comparison

Vertex60 – Simple surface crack detection for routine quality control.
Ideal for routine production inspections. Up to 12 MHz, bridge-type probes, fast setup and cost-effective performance.
Vertex80 – Greater flexibility and sensitivity for mixed applications.
Up to 20 MHz, supports single-ended and bridge probes, higher gain and IP54 protection for broader applications.
Vertex80A – Maximum performance for critical inspections.
Full 20 MHz, all probe types including coupled, 64-bit processing, massive expandable storage and IP65protection.

Specifications

Parameter	VERTEX-60	VERTEX-80	VERTEX-80A
Supported Probe Types	Bridge type	Single-ended, bridge type	Single-ended, bridge type, coupled
Frequency Range	10 Hz – 12 MHz	10 Hz – 20 MHz	10 Hz – 20 MHz
Excitation Voltage	0–10 V (0.1 V steps)	0–12 V (0.1 V steps)	0–12 V (0.1 V steps)
High Amplification Gain	0–50 (step 1)	0–100 (step 1)	0–100 (step 1)
Drive Levels	4 levels	8 levels	8 levels
Processor	32-bit dual-core	32-bit dual-core	64-bit dual-core
Preset Detection Parameters	10,000	100,000	1,000,000
Internal Memory	8 GB (non-expandable)	8 GB (non-expandable)	64 GB (expandable up to 1 TB)
Environmental Protection	None	IP54	IP65
Low Amplification Gain	0–250 (step 1)	0–250 (step 1)	0–250 (step 1)
Low-end Frequency Adjustment	0–120 (step 1)	0–120 (step 1)	0–120 (step 1)
High-end Frequency Adjustment	0–120 (step 1)	0–120 (step 1)	0–120 (step 1)
Grid Grayscale	10 levels adjustable
X-axis Gain	–100 to +100
Y-axis Gain	–100 to +100
High-pass Filter	0–500 Hz
Low-pass Filter	10 Hz – 10 kHz
Digital Filter	1–100

Downloads

BRK Vertex Series Datasheet

BRK Vertex Series Users Manual

Probes

Large Weld Probe

Fast coverage for long welds and large areas.

Continuous inspection on long weld runs
Finds cracks, lack of penetration, slag inclusions
Ideal for pipelines, ship hulls, offshore structures

Applications: Pressure vessel seams, steel box girders, truss joint welds

Small Weld Probe

Precision probe for narrow welds and tiny joints.

Targets tight, small, or intricate weld features
Great for micro solder joint inspection on circuit boards
Supports defect screening in high-density assemblies

Applications: Aviation solder points, battery tabs, controller solder joints

Axe-Type Weld Probe (Transverse)

Directional control for fillets, T-joints, complex weld shapes.

Built for fillet welds, T-joints, complex geometry
High directivity for better positioning and repeatability
Preferred for structural weld inspection in heavy industry

Applications: Steel structures, shipbuilding, pressure vessels

External Encircling Probe

Non-contact inspection with full 360° coverage.

No direct contact required with the test surface
Detects circumferential defects around the full diameter
Optimized for production lines and long stock

Applications: Pipe inspection, rod inspection, industrial assembly lines

This probe is a custom ordered item: Please email us for quote.

Internal Rotary Probe

Designed to find internal defects in tubes and bores.

Detects internal flaws in pipes, holes, hollow structures
Works in slender, small-diameter tubes
Strong choice for maintenance and in-service inspection

Applications: Heat exchanger tubes, boiler tubes, condenser tube maintenance

This probe is a custom ordered item: Please email us for quote.

Saddle-Type Probe

Conforms to cylinders for efficient circumferential scanning.

Built for curved welds and cylindrical workpieces
Customizable curvature: 20, 60, 120 arcs (2 pieces each)
Full circumferential detection with less teardown

Applications: Pipes, shafts, petroleum, power, shipbuilding maintenance

General Pen Probe

Flexible pen-style probe for controlled surface scanning.

Probe angle selected to match inspection requirements
Keep probe perpendicular to the inspection surface
Maintain steady speed and consistent lift-off

Applications: General surface inspection and scanning workflows

10mm Pen Probe

High-precision probe for localized defect screening.

Excellent for complex surfaces and tight inspection zones
Supports micro-defect localization and repeatable scanning
Tune frequency and speed based on thickness and defect type

Applications: Precision manufacturing, aerospace, power maintenance

Right-Angle Pen Probe

Reaches corners, edges, and confined inspection points.

Right-angle geometry for tight access areas
High sensitivity for complex geometric workpieces
Enables rapid defect localization with less repositioning

Applications: Welds, rivet holes, intricate structures in aerospace and energy
