With a weight of only 678g, it integrates cutting-edge microelectron-ics-based digital signal processing and real-time dual-frequency eddy current technology, powered by a high-performance microprocessor to enable real-time, precise identification of flaws in metal components.
The unit features a robust IP65/IP67 protection rating, offering resistance to water, dust, and impacts, ensuring reliable performance in challenging environments. It is particularly suited for inspection tasks in elevated or confined spaces. This instrument stands as a powerful industrial testing tool that expertly balances performance, portability, and reliability.
| Item | VORTEX-1 | VORTEX-2 |
|---|---|---|
| Detection Resolution | Detects defects ≥0.1 mm (carbon steel) | Detects defects ≥0.05 mm (carbon steel) |
| Supported Probe Types | Bridge Type | Single-ended, Bridge Type |
| Excitation Frequency | 10 Hz–10 MHz | 10 Hz–12 MHz |
| Excitation Voltage | 0–10 V continuously adjustable, 0.1 step | |
| High Gain | 0–50, continuously adjustable with step 1 | 0–100, continuously adjustable with step 1 |
| Microprocessor | 32-bit (Dual-core) | 64-bit (Dual-core) |
| Pre-stored Inspection Parameters | 500,000 sets | 1,000,000 sets |
| Memory | 32 GB (Non-expandable) | 64 GB (Expandable up to 1 TB) |
| Waterproof Rating | IP65 | IP67 (Customizable) |
| Preamplification | 32 GB (Non-expandable) | 1x, 2x, 5x, 10x selectable |
| Gate Types | Circular, Rectangular, Linear | Circular, Rectangular, Linear, Smart (Auto-ignores non-defect signals) |
| Image Storage | Can capture and store current waveform image | |
| Video Recording Function | Supports video recording and storage | |
| Display Mode | Normal and High-brightness Modes (suitable for bright sunlight conditions) | |
| Data Logging and Management | Built-in storage function, can connect directly to PC for export without additional software | |
| Interface Support | Type-C / FFA.00 / 00B | |
| Display Screen | 3.5" High-brightness TFT Color LCD, 800 × 480 pixels | |
| Operating Time | ≥18 hours | |
| Dimensions | 200(L) × 120(W) × 55 mm(H) | |
| Weight | Total weight (with battery) approx. 678 g | |

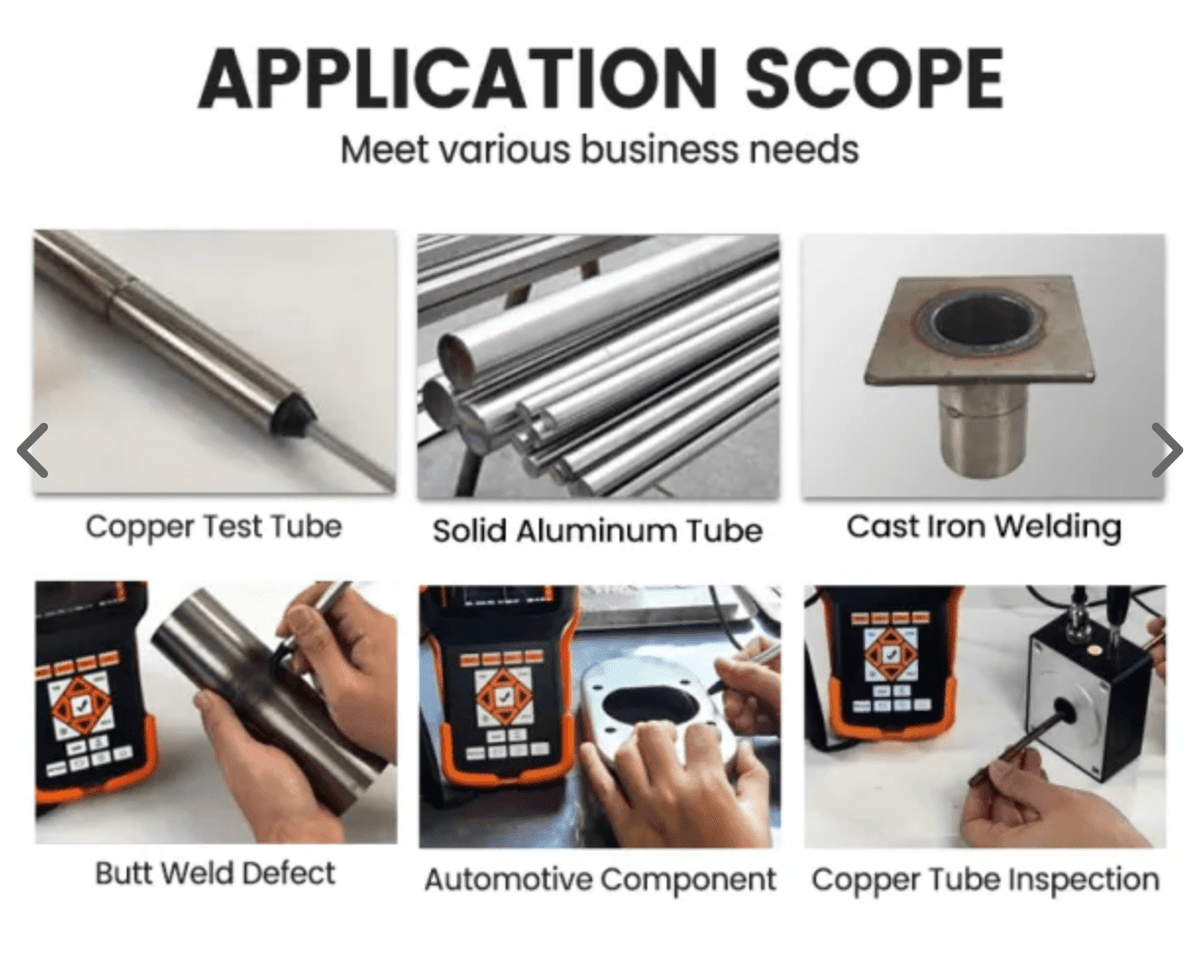

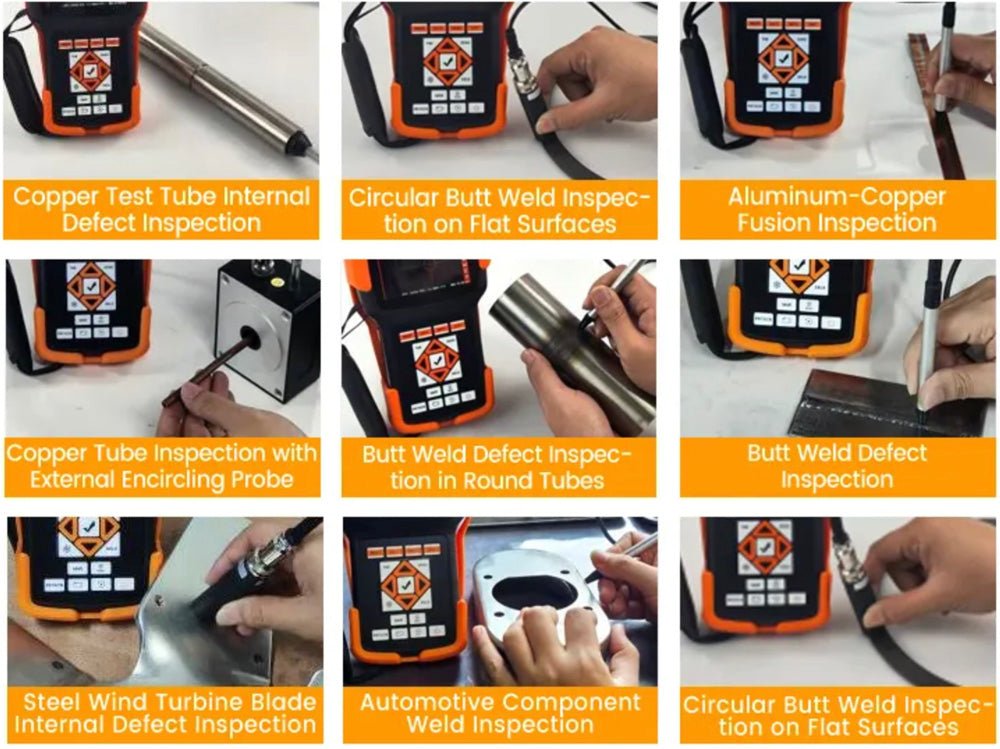

Fast coverage for long welds and large areas.
Applications: Pressure vessel seams, steel box girders, truss joint welds
Precision probe for narrow welds and tiny joints.
Applications: Aviation solder points, battery tabs, controller solder joints
Directional control for fillets, T-joints, complex weld shapes.
Applications: Steel structures, shipbuilding, pressure vessels
Non-contact inspection with full 360° coverage.
Applications: Pipe inspection, rod inspection, industrial assembly lines
This probe is a custom ordered item: Please email us for quote.
Designed to find internal defects in tubes and bores.
Applications: Heat exchanger tubes, boiler tubes, condenser tube maintenance
This probe is a custom ordered item: Please email us for quote.
Conforms to cylinders for efficient circumferential scanning.
Applications: Pipes, shafts, petroleum, power, shipbuilding maintenance
Flexible pen-style probe for controlled surface scanning.
Applications: General surface inspection and scanning workflows
High-precision probe for localized defect screening.
Applications: Precision manufacturing, aerospace, power maintenance
Reaches corners, edges, and confined inspection points.
Applications: Welds, rivet holes, intricate structures in aerospace and energy
Couldn't load pickup availability
With a weight of only 678g, it integrates cutting-edge microelectron-ics-based digital signal processing and real-time dual-frequency eddy current technology, powered by a high-performance microprocessor to enable real-time, precise identification of flaws in metal components.
The unit features a robust IP65/IP67 protection rating, offering resistance to water, dust, and impacts, ensuring reliable performance in challenging environments. It is particularly suited for inspection tasks in elevated or confined spaces. This instrument stands as a powerful industrial testing tool that expertly balances performance, portability, and reliability.
| Item | VORTEX-1 | VORTEX-2 |
|---|---|---|
| Detection Resolution | Detects defects ≥0.1 mm (carbon steel) | Detects defects ≥0.05 mm (carbon steel) |
| Supported Probe Types | Bridge Type | Single-ended, Bridge Type |
| Excitation Frequency | 10 Hz–10 MHz | 10 Hz–12 MHz |
| Excitation Voltage | 0–10 V continuously adjustable, 0.1 step | |
| High Gain | 0–50, continuously adjustable with step 1 | 0–100, continuously adjustable with step 1 |
| Microprocessor | 32-bit (Dual-core) | 64-bit (Dual-core) |
| Pre-stored Inspection Parameters | 500,000 sets | 1,000,000 sets |
| Memory | 32 GB (Non-expandable) | 64 GB (Expandable up to 1 TB) |
| Waterproof Rating | IP65 | IP67 (Customizable) |
| Preamplification | 32 GB (Non-expandable) | 1x, 2x, 5x, 10x selectable |
| Gate Types | Circular, Rectangular, Linear | Circular, Rectangular, Linear, Smart (Auto-ignores non-defect signals) |
| Image Storage | Can capture and store current waveform image | |
| Video Recording Function | Supports video recording and storage | |
| Display Mode | Normal and High-brightness Modes (suitable for bright sunlight conditions) | |
| Data Logging and Management | Built-in storage function, can connect directly to PC for export without additional software | |
| Interface Support | Type-C / FFA.00 / 00B | |
| Display Screen | 3.5" High-brightness TFT Color LCD, 800 × 480 pixels | |
| Operating Time | ≥18 hours | |
| Dimensions | 200(L) × 120(W) × 55 mm(H) | |
| Weight | Total weight (with battery) approx. 678 g | |
Fast coverage for long welds and large areas.
Applications: Pressure vessel seams, steel box girders, truss joint welds
Precision probe for narrow welds and tiny joints.
Applications: Aviation solder points, battery tabs, controller solder joints
Directional control for fillets, T-joints, complex weld shapes.
Applications: Steel structures, shipbuilding, pressure vessels
Non-contact inspection with full 360° coverage.
Applications: Pipe inspection, rod inspection, industrial assembly lines
This probe is a custom ordered item: Please email us for quote.
Designed to find internal defects in tubes and bores.
Applications: Heat exchanger tubes, boiler tubes, condenser tube maintenance
This probe is a custom ordered item: Please email us for quote.
Conforms to cylinders for efficient circumferential scanning.
Applications: Pipes, shafts, petroleum, power, shipbuilding maintenance
Flexible pen-style probe for controlled surface scanning.
Applications: General surface inspection and scanning workflows
High-precision probe for localized defect screening.
Applications: Precision manufacturing, aerospace, power maintenance
Reaches corners, edges, and confined inspection points.
Applications: Welds, rivet holes, intricate structures in aerospace and energy
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
A few of our valued customers:
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|

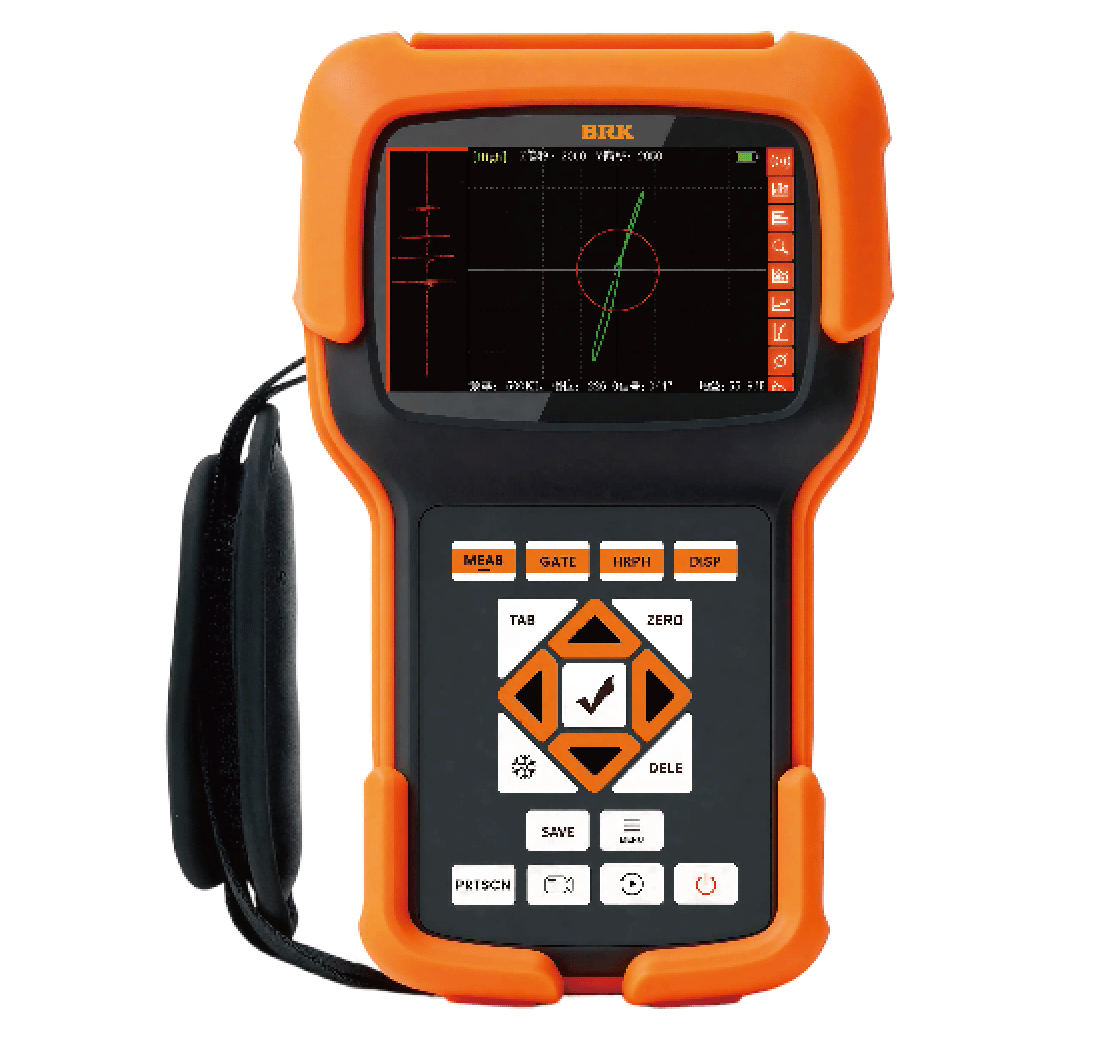

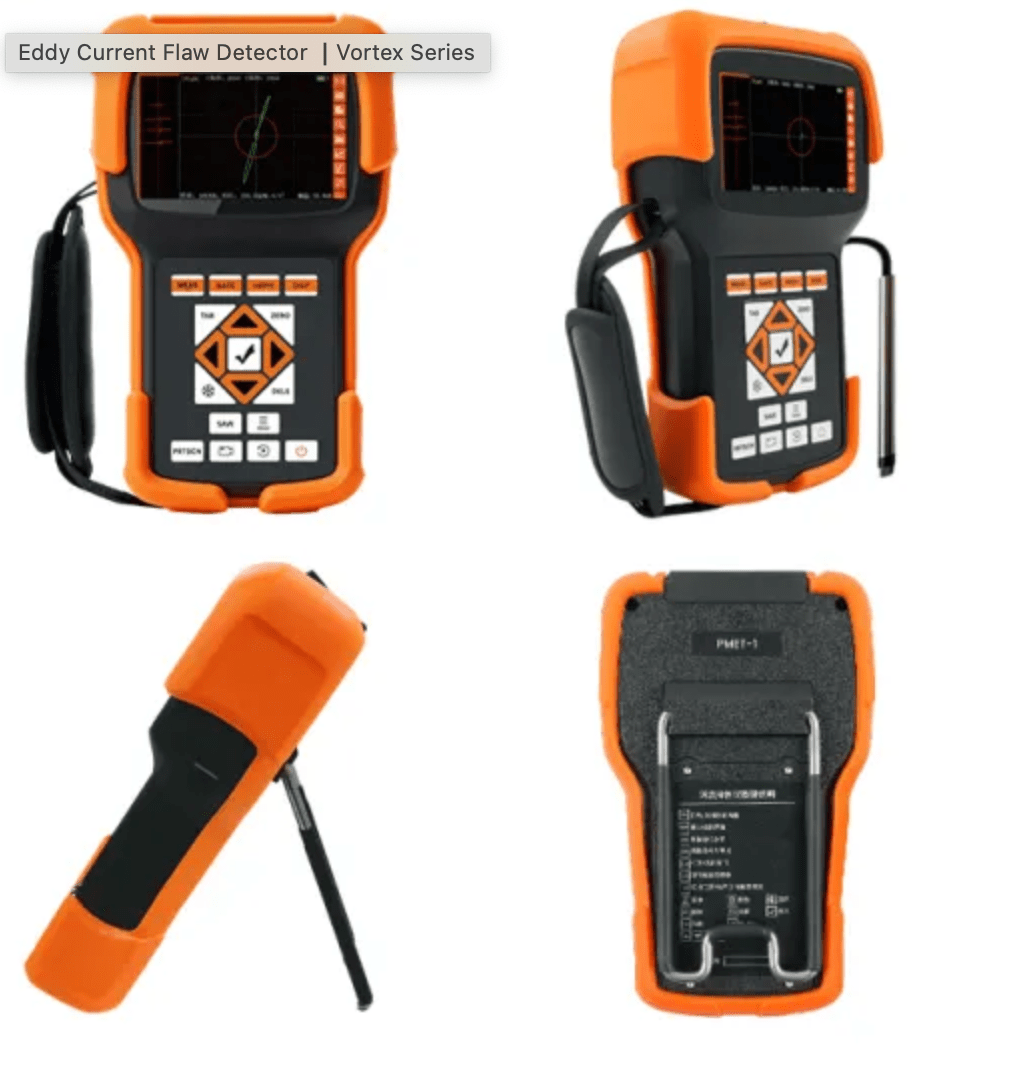

| The VORTEX Series is an ultra-compact handheld Eddy Current Flaw Detector designed for easy one-handed operation.
