YG60S Basic Gloss Meter
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

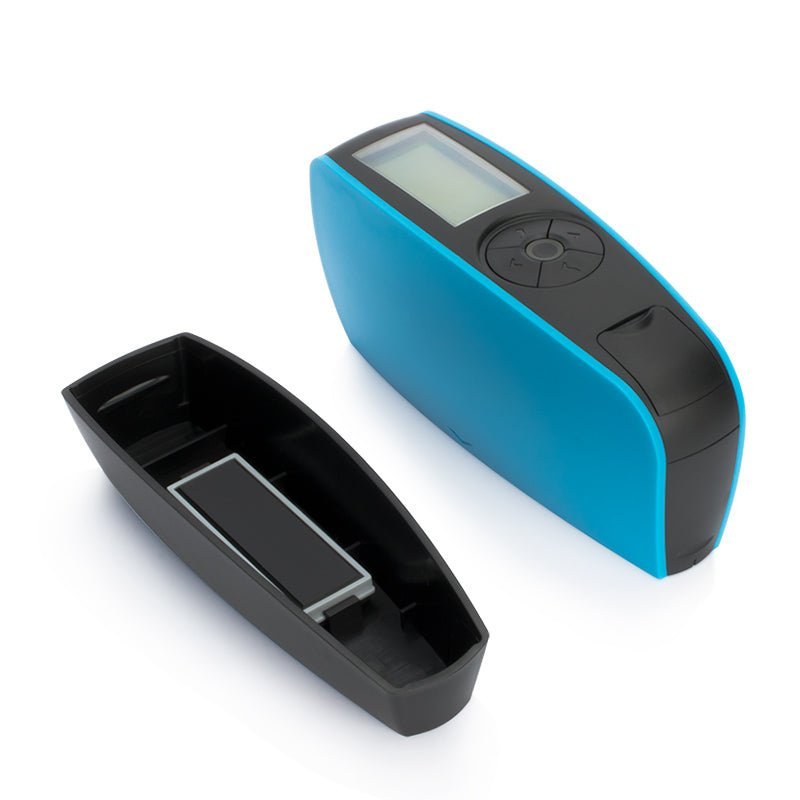

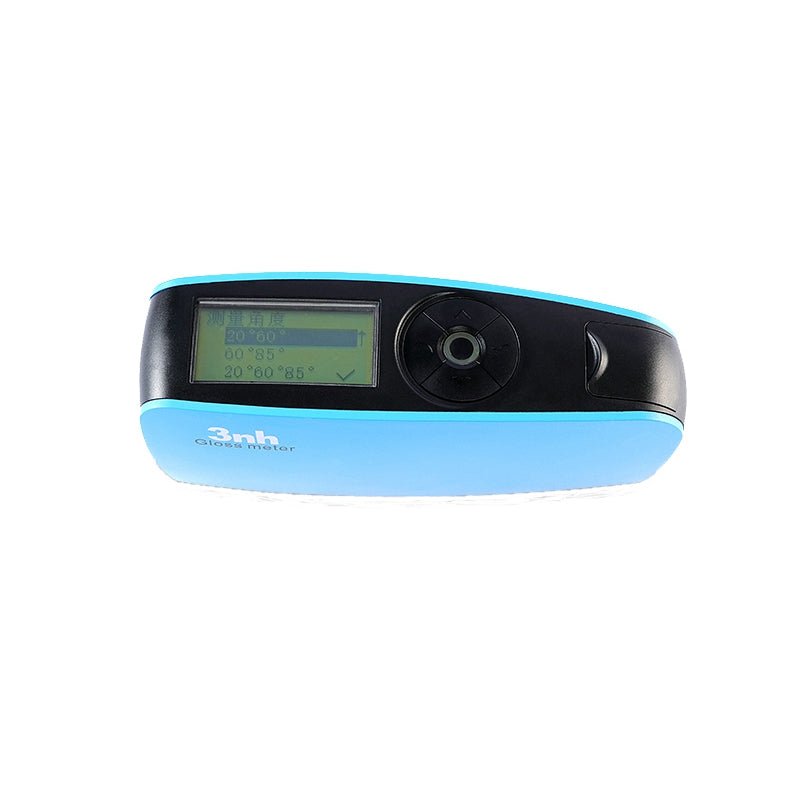

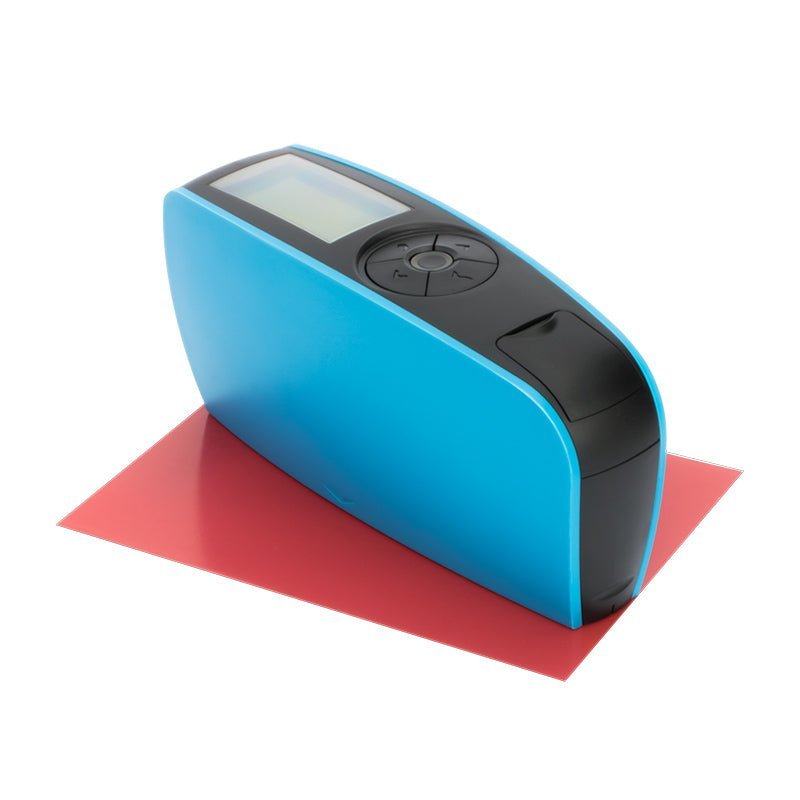

The 3nh YG60S Gloss Meter: Economical and Precise.
The 3nh YG60S Gloss Meter features a 60° measurement angle, and delivers reliable gloss readings on various materials, including paint, coatings and plastics.
This instrument boasts an ergonomic design, an easy-to-read LCD screen, basic measuring mode and a user-friendly interface, making it ideal for quality control in industrial and commercial applications including: paints, coatings, plastics, ink, rubber, printing, paper, glass, hardware, ceramic, marble, etc.
- Stores over 35,000 readings
- Auto calibration
- Auto power-off (from 30-120 seconds)
- USB/RS-232 interface and Bluetooth 2.1 dual mode
- Complies with: ISO2813, ASTM523, GB/T9754 & JJG696
- GQC6 PC software for reporting and extended functions
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | YG60S Basic Gloss Meter |
| Measuring Angle | 60° |
| Measurement range | 60°: 0-200GU |
| Division Value | 1GU |
| Measuring Modes | Basic mode |
| Measuring Time | 0.5S |
| Repeatability | 0~100GU : ±1GU; 100~200GU : ±1%GU |
| Accurate | Conform with JJG696 requirements of gloss meter |
| Auto Power-off Time | 30s |
| Long-time Calibration | / |
| Language | English & Chinese |
| Storage | / |
| Display | 2.3 inch white and black screen |
| Size | 160*52*84mm |
| Weight | About 300g |
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
| Interface | USB |
| PC Software | / |
| Operation Temperature Range | 0-40℃（32-104° F） |
| Storage Temperature Range | -20-50℃（-4-122° F） |
| Humidity Range | < 85% RH, without condensation |

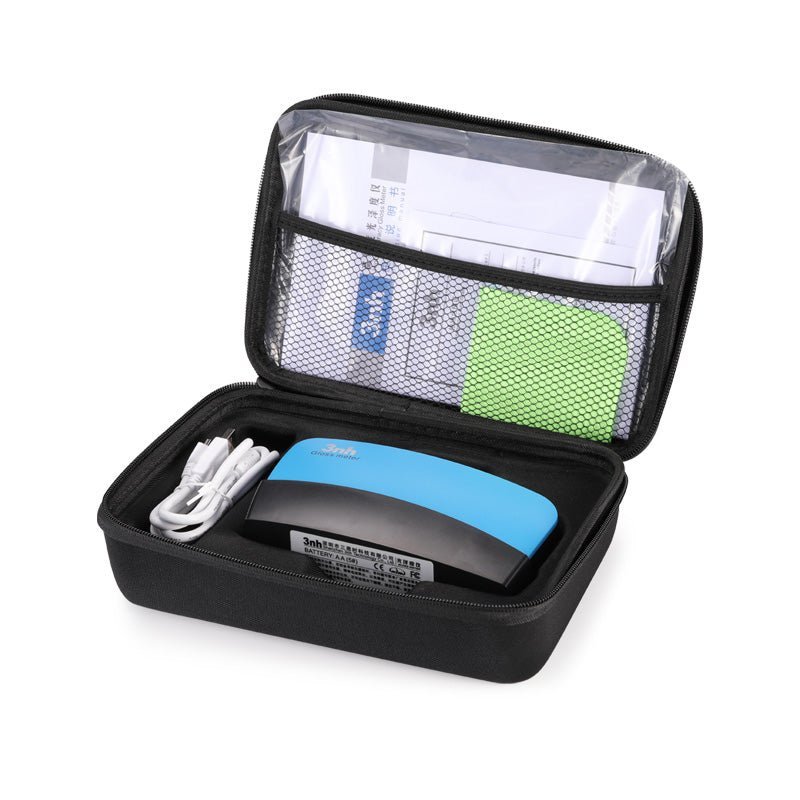

| Standard Accessories | User manual, calibration plate |
| Optional Accessories | Miniature printer, Bluetooth |
